Hummer H1 Fuel Pressure Sensor Guide for 2003-2006 Models
Understanding this critical sensor is key to keeping your H1's diesel engine running strong.
- This part is critical for the 2006 H1 Alpha with the 6.6L Duramax engine; it is not a common failure point on 2003-2004 6.5L models.
- Symptoms of failure include stalling, no-start conditions, and significant power loss, often with a P0191 code.
- Driving with a bad sensor is not recommended as it can leave you stranded.
- Choosing a quality aftermarket brand like Standard Ignition over a budget 'Replacement' part is advised for long-term reliability.
Is This Guide for My H1? A Tale of Two Engines
Before you shop, it's very important to know which engine your 2003-2006 Hummer H1 has. The part and its problems are very different between these years.
- 2006 Hummer H1 Alpha: You have a 6.6L Duramax diesel engine. This engine uses a high-pressure common rail fuel system. The Fuel Rail Pressure Sensor is a critical electronic part. This guide is primarily for you.

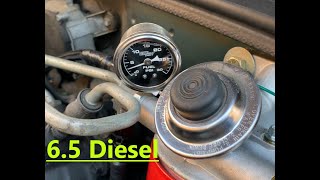

- 2003-2004 Hummer H1: You have a 6.5L Turbo Diesel engine. This engine has a different fuel system with an injection pump. While you can have fuel pressure problems, they are usually caused by the lift pump or the fuel filter housing, not a specific fuel pressure sensor that your ECM monitors in the same way. Owners of these models often add their own fuel pressure gauge to watch the lift pump. 🎬 See how to add a fuel pressure gauge to your 6.5L
Symptoms of a Bad Fuel Pressure Sensor (2006 H1 Alpha)
When the fuel rail pressure sensor on your Duramax engine starts to fail, the ECM gets bad information. This can cause serious driving problems because the computer might cut power to protect the engine, a condition known as "limp mode". You will likely notice one or more of these signs:
- Check Engine Light: This is often the first warning. A code like P0191 is a strong clue. 🎬 Watch: Common symptoms of a failing fuel rail pressure sensor
- Hard Starting or No Start: The engine may crank but refuse to start, or take a long time to fire up. 🎬 Troubleshoot Duramax hard start issues and fuel filter head rebuilds
- Engine Stalling: The engine might die unexpectedly, even while driving.
- Poor Engine Performance: You may feel a major loss of power, slow acceleration, and hesitation.
- Bad Fuel Economy: The engine may use more fuel than normal.
No Recalls, But a Known Issue
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls for the fuel pressure sensor on the 2003-2006 Hummer H1. However, this sensor is a known failure point on many Duramax diesel engines.
Choosing the Right Aftermarket Sensor
For a part this important to your engine's health, quality matters. You have a choice between premium and budget-friendly aftermarket brands.
Brand Quality Tiers
- Standard Ignition (Premium Aftermarket): Standard Ignition is a well-known brand trusted by professional mechanics. Their parts are built to meet or exceed original factory specs. For a critical sensor, choosing a brand like this gives you a better chance of a long-lasting, reliable repair. They are usually more expensive, but you are paying for quality engineering and testing.
- Replacement (Economy Aftermarket): This brand offers a more affordable option. While it can save you money upfront, the long-term reliability may not match a premium brand. For a vehicle like the H1 Alpha, where repairs can be difficult, a lower-quality part that fails early could lead to more work and frustration down the road.
Pro Tip: On a high-pressure common rail diesel like the Duramax, fuel pressure is everything. A cheap, inaccurate sensor can cause performance issues or even leave you stranded. Investing in a quality sensor from a brand like Standard Ignition is often worth the extra cost for peace of mind.
Cost of Replacing a Fuel Pressure Sensor on a 2006 H1 Alpha
The total cost depends on the brand you choose and whether you do the work yourself or hire a professional mechanic.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $31 - $227 |
| Shop Labor | $193 - $283 |
| Total Professional Repair | $224 - $510 |
Frequently Asked Questions
Is a fuel pressure sensor the same as a fuel pressure regulator?
No, they are different parts with different jobs. The sensor's job is to measure and report the pressure. The regulator's job is to control the pressure. On some vehicles they can be part of the same assembly, but on the H1 Alpha's Duramax engine, the fuel rail pressure sensor is a distinct part on the fuel rail.
Where is the fuel pressure sensor located on a 2006 H1 Alpha?
You can find the fuel pressure sensor mounted directly on the engine's fuel rail. The fuel rail is a metal pipe that distributes fuel to the injectors.
Can I replace the fuel pressure sensor myself?
If you have experience working on diesel engines, this is a job you can likely do yourself. Accessing the sensor can be tight. You will need to relieve the fuel system pressure before starting, which is a critical safety step. If you are not comfortable with this, it is best to have a professional mechanic do the work.
Will a bad fuel pressure sensor cause a P0191 code?
Yes, a faulty fuel rail pressure sensor is the most common cause of a P0191 diagnostic trouble code. This code means the signal from the sensor is out of its expected range, telling the ECM that something is wrong with the fuel pressure reading.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5745891 97371617 98090186
This sensor is specific to the common rail fuel system on the 6.6L Duramax engine. It features a 3-pin female connector and is designed to read extremely high fuel pressures.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
