Subaru Baja Starter Replacement Guide (2003-2006)
Is your Baja clicking but not starting? Here’s what you need to know before replacing your starter.
- A single click with no crank is the most common symptom of a failed starter on a Baja.
- Always check the battery and its cable connections first, as they can mimic starter problems.
- A new Denso aftermarket starter is the best choice, offering OEM quality without the high dealer price.
- Replacement is DIY-friendly, located on top of the transmission and requiring basic tools.
Is Your Subaru Baja Starter Failing?
When a starter begins to fail, it usually gives a few warning signs. Ignoring them can leave you stranded. The most common issue for a 2003-2006 Subaru Baja is often related to worn electrical contacts inside the starter solenoid, which can cause intermittent starting problems.
Common Failure Symptoms:
- Single Loud Click: You turn the key and hear one loud click, but the engine doesn't crank. This often means the starter solenoid is engaging, but the motor isn't turning. This is a classic symptom in Subarus of this era.
- No Sound at All: If you turn the key and nothing happens, the issue could be the starter, but it's important to first check your battery and ignition switch.
- Slow or Weak Crank: If the engine turns over very slowly, like it's struggling, it could be a dying starter motor or a weak battery. A starter drawing too much power can also drain the battery.
- Grinding Noise: A harsh grinding sound when you try to start the engine can indicate that the starter gear is not meshing correctly with the flywheel, or it's already damaged.
- Intermittent Starting: The car starts fine one day but refuses to crank the next. Some owners report this happens more often when the engine is hot.
Check Your Battery and Cables First!
A dead or weak battery is the most common reason a car won't start. Before blaming the starter, make sure your battery is fully charged and the terminals are clean and tight. A Baja owner on a forum replaced their starter only to find the real problem was a corroded battery cable with high resistance. Always rule out the simple things first.
Choosing the Right Aftermarket Starter
For the 2003-2006 Subaru Baja, the original starter was made by Denso. This gives you a distinct advantage when shopping for an aftermarket part.
Brand Quality Tiers:
- Top Tier (OEM Equivalent) - Denso: Denso is a major supplier for Subaru. Buying a new aftermarket starter from Denso is essentially getting the same quality as the original part that came with your Baja, but without the dealership price tag. This is the most recommended option for reliability.
- Mid Tier - Remy: Remy is a long-standing brand in the aftermarket, known for both new and remanufactured parts. While generally considered a decent option, some forum users have noted a decline in quality in recent years, with some parts failing prematurely.
- Standard Tier - BBB Industries: BBB Industries is a large manufacturer that supplies many auto parts stores. These starters are a budget-friendly option and come with the convenience of a local warranty. However, they are not typically considered to be of the same quality or longevity as an OEM-equivalent brand like Denso.
Pro Tip: Given the options, a new Denso starter offers the best balance of quality and value. It provides the reliability of an OEM part, which is crucial for a component that can leave you stranded. Forum users frequently recommend sticking with Denso for Subarus.
Cost of Replacing a Subaru Baja Starter
The total cost will depend on the part you choose and whether you do the work yourself. The job is straightforward for a DIYer 🎬 Watch a mechanic demonstrate the removal and installation process. with basic tools.
| Item | Estimated Cost |
|---|---|
| New OEM Starter | $450 - $675 |
| New Aftermarket Starter | $96 - $203 |
| Shop Labor | $120 - $225 |
| Total (DIY Aftermarket) | $96 - $203 |
| Total (Shop-Installed Aftermarket) | $216 - $428 |
Frequently Asked Questions
Where is the starter located on a 2003-2006 Subaru Baja?
The starter is mounted to the top of the transmission bellhousing, just behind the engine. You can access it from the engine bay after removing the air intake assembly.
Is it hard to replace a Subaru Baja starter?
No, it's considered a relatively easy job for someone with basic mechanical skills. It involves disconnecting the battery, removing the airbox, unbolting two mounting bolts, and disconnecting two electrical wires. It typically takes about 1 to 1.5 hours.
🎬 Watch this step-by-step starter replacement guide for Subaru models.Are there any recalls or TSBs for the Baja starter?
No. There are no recalls or Technical Service Bulletins (TSBs) from Subaru or the NHTSA specifically for the starter motor on the 2003-2006 Subaru Baja. Recalls for this vehicle primarily concern the Takata airbags.
Can I just rebuild my original starter?
Yes. If you have the original Denso starter, it is rebuildable. The most common failure is the solenoid contacts, and kits are available to replace them. This can be a very cost-effective option if you are comfortable taking the starter apart, but it requires more time and effort 🎬 See how to repair the starter solenoid yourself. than a simple replacement.

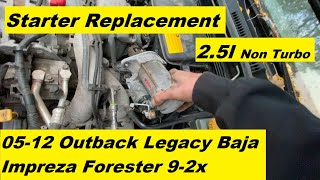

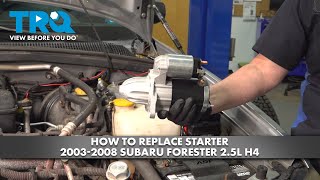

Helpful Videos
Technical Specifications
OEM Part Numbers: 23300AA450
Type: Gear Reduction Voltage: 12V Rotation: Clockwise Number of Teeth: 9
