Chevrolet Express 1500 (2003-2007) Brake Light Switch Guide
Understanding the brake light switch in your Express van and how to choose the right replacement part.
- A faulty brake light switch is a critical safety issue and should be replaced immediately.
- Symptoms include brake light failure, cruise control issues, or being stuck in Park.
- Replacement is a simple, low-cost DIY job that requires working in a tight space under the dash.
- For reliability, choose a reputable aftermarket brand like ACDelco or Standard Ignition.
Is Your Express Van's Brake Light Switch Failing?
A failing brake light switch in a 2003-2007 Chevrolet Express 1500 can cause several distinct and frustrating problems. Because this small part connects to multiple systems, its failure isn't always obvious. Recognizing the signs early can save you from a potential roadside headache or a safety issue.
Common Symptoms of a Bad Brake Light Switch:
- Brake Lights Don't Work: The most obvious and dangerous symptom. If your brake lights fail to illuminate when you press the pedal, the switch is a primary suspect.
- Brake Lights Stay On: The switch can fail in the 'on' position, leaving your brake lights constantly lit. This can drain your battery and confuse other drivers.
- Cannot Shift Out of Park: Your van has a safety feature called a shift interlock that requires you to press the brake before shifting. If the switch doesn't send the signal that the brake is applied, you won't be able to move the gear selector.
- Cruise Control Malfunctions: The cruise control system disengages when you tap the brakes. If the switch is faulty, the cruise control may not engage at all or may disengage unexpectedly.
Safety First: A Critical Part
Driving with a faulty brake light switch is a serious safety risk. If your brake lights are not working, other drivers will not know you are stopping, which can easily lead to a rear-end collision. If you suspect your switch has failed, it's crucial to diagnose and replace it immediately.
Choosing a New Aftermarket Brake Light Switch
When your original switch fails, you have several aftermarket options. For the 2003-2007 Express 1500, the quality of aftermarket switches is generally reliable, offering a cost-effective solution compared to OEM parts. Here’s a look at the available brands.
Brand Tiers for Your Express 1500
- ACDelco (Professional/Gold): ACDelco is GM's own parts brand, and their Professional or Gold line is considered a premium aftermarket choice that often meets or exceeds original equipment specifications. For a direct, reliable replacement with an OEM fit, ACDelco is a top-tier option.
- Standard Ignition (Standard Motor Products): Standard is a well-respected aftermarket manufacturer with a long history of producing quality electronic parts. Their switches are a solid, reliable choice and a popular alternative to OEM parts.
- Vemo: Vemo is an aftermarket brand that provides a range of vehicle components. While some users find it to be a good value, it is generally considered a budget-friendly option.
- Replacement: This is often a generic or house brand. While it offers the lowest price point, quality and longevity can be inconsistent. It can be a viable option for a quick fix on a budget, but a brand like ACDelco or Standard is recommended for long-term reliability. 🎬 See how to install a new switch on similar GM models.
Pro Tip: Check the Connector
Before ordering, it's a good practice to visually inspect the existing switch and its electrical connector. While switches for this generation of Express vans are generally standard, ensuring the pin configuration matches the new part can prevent installation delays.
Frequently Asked Questions
Where is the brake light switch located on my 2003-2007 Express 1500?
The brake light switch is located under the driver's side dashboard, mounted to a bracket on the brake pedal arm. You will need to look up from the floor to see it attached to the top of the pedal assembly.
Can I replace the brake light switch myself?
Yes, this is a DIY-friendly repair for most people with basic tools. It involves working in a tight space under the dashboard. The process typically includes disconnecting the electrical connector, removing a retaining clip, and sliding the switch off the pedal assembly. 🎬 Watch this step-by-step guide to replacing your Express van's switch. The difficulty is low, but the position can be uncomfortable.
Are there any recalls for the brake light switch on this van?
Searches of the NHTSA database did not show any specific recalls for the brake light switch on the 2003-2007 Chevrolet Express 1500. Recalls found were for different model years or different vehicle models.
My brake lights work but my cruise control doesn't. Could it still be the switch?
Yes. The brake light switch often has multiple internal contacts for different functions. It's possible for the contacts that control the cruise control to fail while the contacts for the brake lights continue to work properly.
What is a shift interlock, and how does the brake light switch affect it?
The shift interlock is a safety mechanism that locks your transmission in Park until the brake pedal is pressed. The brake light switch sends the signal to release this lock. If the switch is broken, the lock won't disengage, and you'll be stuck in Park.

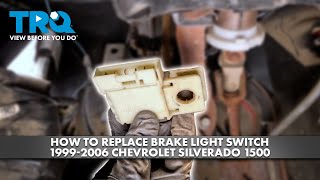

Helpful Videos
Technical Specifications
OEM Part Numbers: 15128874 15861245
Located on the brake pedal support bracket. Typically secured with a retaining clip.
