Chevrolet Express 2500 (2003-2007) Brake Fluid Level Sensor Guide
Understanding the brake fluid level sensor in your 2003-2007 Express van and how to address common issues.
- A constant 'BRAKE' light with a full fluid reservoir is the top symptom of a bad sensor.
- For this part, a quality aftermarket brand like Standard Ignition is a reliable and cost-effective alternative to OEM.
- Replacement is extremely simple, requiring no special tools and taking only a few minutes.
- Always verify your actual brake fluid level before assuming the sensor is the only problem.
Is a Faulty Brake Fluid Level Sensor a Big Deal?
The sensor itself is a simple float switch. When it fails, it typically does so by either getting stuck in the 'full' position or the 'empty' position. If it's stuck 'full', you won't get a warning if your fluid is actually low. If it's stuck 'empty', your 'BRAKE' light will stay on constantly, which can be annoying and might cause you to ignore a real issue. While the sensor failing won't stop your van, ignoring the warning it provides can be dangerous. Always check your brake fluid level manually if you suspect a problem.
Safety First: BRAKE Light On?
If your red 'BRAKE' warning light is on, the first step is always to check your brake fluid level. A low level indicates either a leak in the brake system or that your brake pads are worn down. Both are serious safety issues that need immediate attention. Do not ignore a legitimate low fluid warning.
Choosing a New Aftermarket Sensor
For a straightforward part like a brake fluid level sensor on the 2003-2007 Express 2500, an aftermarket replacement is a practical and cost-effective choice. The original equipment (OEM) sensor is not complex, and reputable aftermarket brands can produce a reliable equivalent for much less money.
Standard Ignition (Standard Motor Products) is a well-known aftermarket manufacturer that produces parts like the BST118 sensor. They are generally considered a reliable source for common replacement parts and offer a direct-fit product that meets original specifications. Given the simplicity of the sensor's design—a basic float switch—there is little risk in opting for a quality aftermarket part over a more expensive OEM part from the dealer.
Pro Tip: Check the Connector
Before ordering, it's always a good idea to look at the sensor on your master cylinder. Confirm the electrical connector shape and the way the sensor mounts to the reservoir. While variations are rare for this specific model year range, a quick visual check can prevent the hassle of a return.
| Part Source | Estimated Price Range |
|---|---|
| New OEM (GM Genuine) | $13 - $26 |
| New Aftermarket (Standard Ignition, etc.) | $15 - $21 |
| Shop Labor | $50 - $75 |
Frequently Asked Questions (FAQ)
Can I drive with a bad brake fluid level sensor?
Yes, but with caution. A faulty sensor itself doesn't affect braking performance. However, if the sensor is bad and cannot warn you of genuinely low fluid, you could be unaware of a developing brake problem. If the 'BRAKE' light is on, verify the fluid level is correct and the brakes feel normal before continuing to drive. Get the sensor replaced soon to ensure the warning system is active.
How hard is it to replace the brake fluid level sensor?
This is one of the easiest repairs you can do. The sensor is located on the brake fluid reservoir on top of the master cylinder. Replacement typically involves unplugging the electrical connector, and then unclipping or unscrewing the old sensor. The new one pops right in. No special tools are needed, and it usually takes less than 15 minutes.

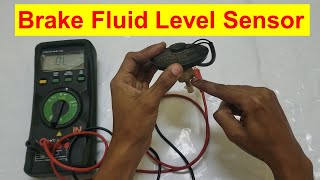

🎬 Watch this quick video on replacing a brake fluid sensor.Will a bad sensor make my ABS light come on?
Usually, a failing brake fluid level sensor will only trigger the main red 'BRAKE' warning light. However, on some GM systems, low brake fluid can also cause the 'ABS' light to illuminate because the ABS system relies on the same hydraulic fluid. If both lights are on, it's even more critical to check your fluid level immediately.
Are there any recalls for the brake fluid sensor on my Express van?
No, there are no specific recalls for the brake fluid level sensor itself on the 2003-2007 Chevrolet Express 2500. Searches of the NHTSA database show recalls for later model years or different brake components, such as brake lines on cutaway chassis models, but not for the sensor in this year range.
Helpful Videos
Technical Specifications
OEM Part Numbers: 18012741 22688454 19420968 84843860
2-pin female plug-in connector, float switch design.
