Chevrolet Express 2500 Crankshaft Position Sensor Guide (2003-2007)
Having starting or stalling problems with your van? Your crankshaft position sensor might be the culprit.
- A failing crankshaft sensor is a common cause of no-start and stalling issues on the 2003-2007 Express 2500.
- To avoid repeat failures, choose a high-quality replacement from brands like ACDelco or Delphi.
- The sensor is located behind the starter motor, which must be removed for access.
- A 'crankshaft variation relearn' procedure with a scan tool is required after replacement to prevent running issues.
Symptoms of a Failing Crankshaft Position Sensor
When the crankshaft position sensor on your Express van starts to fail, it can cause a range of problems. You might notice one or more of these signs. Ignoring them can lead to your van not starting at all.

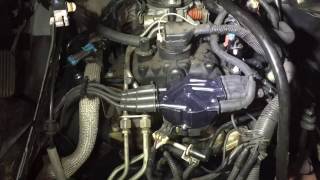

- Check Engine Light: A faulty sensor will almost always trigger the check engine light. Common trouble codes include P0335 and P0336. 🎬 See how to diagnose a P0335 code on a Chevy van.
- Engine Won't Start: The engine will turn over (crank) but won't fire up because the ECM isn't getting a signal to trigger spark and fuel.
- Stalling: The engine may stall unexpectedly while driving, which can be dangerous. It might restart after cooling down or it might not.
- Rough Idling and Misfires: You may feel the engine vibrating or running unevenly, especially when stopped.
- Poor Acceleration and Reduced Fuel Economy: Incorrect timing information can lead to sluggish performance and cause the engine to use more fuel than normal.
Choosing the Right Aftermarket Sensor
For a critical part like a crankshaft position sensor, quality matters. While OEM is an option, many aftermarket brands provide reliable performance. They can be grouped into tiers based on quality and reputation among mechanics.
Brand Quality Tiers
| Tier | Brands | General Assessment |
|---|---|---|
| Tier 1: OEM & OEM-Equivalent | ACDelco, Delphi | ACDelco is the original GM parts brand, and Delphi was an original equipment manufacturer for GM. These are your most reliable choices for fit and performance, closely matching the original part. |
| Tier 2: Reputable Aftermarket | NGK/NTK, Hitachi, Standard Ignition (SMP), Walker Products, Beck Arnley | These brands have a strong reputation for producing quality electronic components. They are a solid choice, often providing a good balance of price and reliability. NGK (under the NTK brand for sensors) and Hitachi are well-respected Japanese manufacturers. |
| Tier 3: Economy/Value | Dorman, Holstein, Spectra, True Tech, and other store brands | These brands offer a cost-effective solution. However, reviews can be mixed, with some users reporting premature failures or out-of-box issues. They can be a viable option for a budget repair, but may carry a higher risk of needing to be replaced again sooner. |
A Note on Dorman Parts
While Dorman offers a wide range of parts and can be a good solution for many repairs, their electronic sensors sometimes have mixed reviews. Some users have reported issues with Dorman crank sensors not working correctly out of the box, requiring them to use an OEM or Tier 1 brand instead.
Known Issues, Recalls, and TSBs
There have been recalls related to crankshaft position sensors on other GM vehicles, particularly those with the 8.1L V8 engine from different model years, due to manufacturing variations causing the sensor to fail. However, no specific, widespread recall for this exact part on the 2003-2007 Express 2500 with the common 4.8L or 6.0L engines was found. Failures are typically due to age, heat, and normal wear. A key service item to be aware of is the "crankshaft variation relearn" procedure, which is required after replacing the sensor.
Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on my 2003-2007 Express 2500?
On vans with the 4.8L, 5.3L, and 6.0L V8 engines, the crankshaft position sensor is located on the passenger side of the engine block, above the oil pan and just behind the starter motor. You will need to remove the starter to access and replace the sensor.

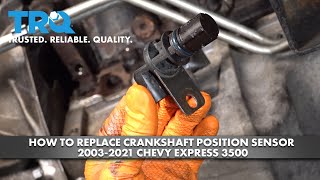

🎬 Watch this step-by-step walkthrough for replacing the sensor on your Express van.Do I need to perform a "crank relearn" after replacement?
Yes. After replacing the crankshaft position sensor on these GM vehicles, a "crankshaft position system variation learn" procedure is required. This procedure uses a professional scan tool to calibrate the new sensor with the ECM. If this is not done, the engine may run poorly, misfire, and set a trouble code (like P1336). Some high-end DIY scan tools may have this function, but most owners will need to have a repair shop perform the relearn.
🎬 Watch a professional technician explain the GM crank relearn procedure.Can I just clean the sensor instead of replacing it?
Sometimes, the sensor tip can become covered in metallic debris or grime, which can interfere with its signal. You can try removing it and cleaning the tip. However, these sensors typically fail internally due to heat and age. Cleaning is unlikely to fix a sensor that has already failed and is causing stalling or a no-start condition. Given the labor involved in accessing the sensor, replacement is usually the best course of action.
What is the difference between a crankshaft and a camshaft sensor?
They perform similar functions but monitor different parts. The crankshaft sensor tracks the rotation of the crankshaft at the bottom of the engine. The camshaft sensor tracks the rotation of the camshaft(s) at the top of the engine, which controls the valves. The ECM uses both signals together to get a complete picture of the engine's timing. A failure in either sensor can cause similar symptoms.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12560228
The sensor for this application is a 3-pin blade-style connector in an oval shape. It mounts to the engine block with a single bolt.
