Hummer H2 (2003-2007) Transmission Shift Solenoid Replacement Guide
Fix your H2's harsh shifting and transmission error codes by choosing the right replacement solenoids.
- Symptoms like harsh shifting, getting stuck in gear, or a Check Engine Light with codes like P0751/P0756 strongly point to solenoid failure in the 4L65-E transmission.
- It is highly recommended to replace the solenoids as a complete kit, along with the transmission filter and fluid, since the transmission pan must be removed for access.
- There are no active recalls for this issue; it is a common wear item.
- A quality aftermarket brand like Standard Ignition offers a reliable alternative to more expensive OEM parts for your H2.
Is Your H2 Transmission Acting Up?
If you're experiencing problems like delayed shifts, harsh clunking into gear, or a check engine light, a failing transmission control solenoid could be the culprit. These small valves play a huge role in your H2's drivability. Because the 2003-2007 Hummer H2 uses the robust 4L65-E transmission, solenoid failure is a common wear-and-tear issue that can often be fixed without a complete transmission rebuild. This guide will help you understand the symptoms, choose the right aftermarket part, and know what to expect from the repair.
Symptoms of a Failing Transmission Solenoid
Solenoid issues can show up in several ways. You might notice one or more of the following signs:
- Harsh or Delayed Shifting: The most common symptom is a noticeable delay or a hard jerk when the transmission shifts, especially from 1st to 2nd gear.
- Failure to Shift: Your H2 might refuse to upshift or downshift, sometimes getting stuck in a single gear like 2nd or 3rd (often called "limp mode"). One owner reported losing 1st and 4th gears specifically.
- Transmission Slipping: You might feel the engine rev up, but the vehicle doesn't accelerate as it should, as if it's momentarily in neutral between gears.
- Check Engine Light: A failing solenoid will almost always trigger a Check Engine Light. Common trouble codes include P0751 (Shift Solenoid 'A' Performance 🎬 Watch: Understanding the P0751 code and how to fix it.), P0756 (Shift Solenoid 'B' Performance), and P0741 (Torque Converter Clutch Solenoid Performance).
Get a Proper Diagnosis
While these symptoms strongly point to solenoids, they can sometimes overlap with other transmission issues. A Technical Service Bulletin (TSB) for the 2004 H2 noted that a slip condition could also be caused by a damaged internal clutch. Always have the trouble codes scanned to confirm which solenoid or circuit is reporting a fault before buying parts.
Choosing the Right Aftermarket Solenoid
When replacing a solenoid in your H2, you have several options. The term "transmission control solenoid" can refer to individual shift solenoids 🎬 See this video to locate the A and B solenoids. (A and B are identical), the TCC solenoid, or a complete kit that includes multiple solenoids and a wiring harness.
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard provides parts that meet or exceed OEM specifications. They are a reliable choice for durability and proper function.
- ATP (Automatic Transmission Parts): ATP is a budget-friendly option. While many users have success with their parts, some reviews mention inconsistent quality, such as receiving parts that appeared to be previously opened. They can be a good value, but inspect the part carefully upon arrival.
- Pioneer Cable: Search results for this brand primarily show transmission shifter *cables*, not electronic solenoids. They are not a primary manufacturer for this specific electronic part.
OEM vs. Aftermarket Quality
For the 4L65-E transmission, the original equipment (ACDelco) solenoids are excellent quality. High-quality aftermarket brands like Standard Ignition are a dependable alternative and can offer significant savings. For a heavy-duty vehicle like the H2, it's wise to invest in a reputable brand rather than the cheapest option available to avoid doing the job twice.
Hummer H2 Transmission Solenoid Cost
The cost depends on whether you replace a single solenoid or a complete kit, and if you do the work yourself.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Solenoid (Single) | $42 - $80 |
| New Aftermarket Solenoid Kit | $90 - $175 |
| New OEM (ACDelco) Solenoid Kit | $100 - $200 |
| Shop Labor | $200 - $400 |
Frequently Asked Questions (FAQ)
Should I replace all the solenoids at once?
It is highly recommended. The labor to access the valve body by dropping the transmission pan is the same whether you replace one or all of them. Since they are all the same age and have been operating under the same conditions, replacing them as a master kit can prevent future failures and save you from having to do the job again.
Do I need to replace the transmission filter and fluid too?

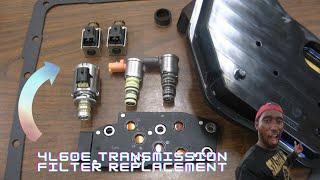

Yes. The replacement process requires removing the transmission pan, which means you will drain the fluid and remove the filter to access the solenoids. You must install a new filter and pan gasket and refill with fresh, compatible transmission fluid. 🎬 Watch: A step-by-step walkthrough of the solenoid and filter replacement. One forum user noted their fluid was pitch black, and a change was overdue.
What's the difference between a shift solenoid and a TCC solenoid?
Shift solenoids (A and B) control the gear changes from 1-2, 2-3, and 3-4. The Torque Converter Clutch (TCC) solenoid locks the torque converter at cruising speeds to improve fuel efficiency, creating a direct 1:1 link between the engine and transmission. A faulty TCC solenoid can cause shuddering at highway speeds or stalling when coming to a stop.
Are there any recalls for the H2 transmission solenoids?
No. There have been no recalls issued by GM or the NHTSA for transmission solenoid failure on the 2003-2007 Hummer H2. All repairs for this issue are considered normal service or maintenance.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24230298 10478131
Fits 4L65-E 4-Speed Automatic Transmission. The 1-2 Shift Solenoid ('A') and 2-3 Shift Solenoid ('B') are identical and interchangeable parts.
