A Comprehensive Guide to the Starter Motor for the 2003-2007 Jeep Liberty
If your Jeep Liberty just clicks or won't crank, your starter motor might be the problem.
- The vehicle for these years is the Jeep Liberty (KJ), not the Cherokee, in North America.
- A single 'click' with no crank is the most common symptom of a failed starter.
- Replacement is a difficult DIY job; the starter is hard to access and remove.
- Due to the difficult labor, choosing an aftermarket part with a lifetime warranty is a smart investment.
Is Your Jeep Liberty Starter Failing?
A bad starter can leave you stranded. For the 2003-2007 Jeep Liberty (KJ), especially those with the 3.7L V6 engine, the symptoms are usually clear. It's important to know these signs so you don't confuse them with a dead battery.
Common Failure Symptoms
- Single Loud Click: You turn the key, and all you hear is one loud 'CLACK' from the engine bay. This often means the starter solenoid is engaging, but the motor itself isn't turning the engine.
- No Sound at All: If you turn the key and nothing happens, but your lights and radio work, the starter may not be receiving the signal to start. This can sometimes be caused by other issues like a bad starter relay or ignition actuator pin 🎬 See how to diagnose a no-start issue that isn't the starter., which are also known problems in these Jeeps.
- Grinding Noise: A harsh grinding sound when you try to start the engine can mean the starter gear is not meshing correctly with the engine's flywheel, or the gear is damaged.
- Intermittent Starting: The starter works one day but not the next. This can be an early sign of the starter motor wearing out. Heat can sometimes make this problem worse.
Known Issues, Recalls, and TSBs
While there are no specific recalls for the starter motor on the 2003-2007 Jeep Liberty, the vehicle has been subject to recalls for other issues, such as suspension corrosion and airbag problems. There are no widespread Technical Service Bulletins (TSBs) from Jeep that point to a universal defect with the starter itself. However, owner forums frequently discuss starting problems that can be traced to the starter, the starter relay in the fuse box, or the ignition actuator pin inside the steering column.
Choosing a New Aftermarket Starter
When your starter fails, you have a few options. For an older vehicle like the KJ Liberty, a new aftermarket starter often provides the best balance of cost and reliability.
- New OEM (Mopar): This is the highest-cost option. You're getting the same part that the vehicle was built with, but it's often not necessary for a vehicle of this age.
- Remanufactured OEM (Mopar): A used OEM starter that has been rebuilt with new wear components. Quality is generally good, but costs are still higher than aftermarket.
- New Aftermarket: These are brand-new starters made by companies other than Mopar. Quality can range from excellent to poor. Brands like Duralast, Carquest, and TYC are common. Many new aftermarket parts offer a good warranty, sometimes for a lifetime.
- Remanufactured Aftermarket: The most budget-friendly choice, but also the one with the most varied quality. These are old starters rebuilt by third-party companies.
Pro Tip: Consider the Warranty
The starter on a 3.7L V6 Liberty is difficult to replace due to its location. Because the labor can be intensive, choosing a part with a good warranty is smart. A lifetime warranty from a brand like Duralast or Carquest means if the part fails again, you can get a new one for free, saving you the cost of the part on a tough job.
Cost of Replacing a Jeep Liberty Starter
| Part or Service | Estimated Cost |
|---|---|
| New OEM (Mopar) | $250 - $400+ |
| New Aftermarket | $120 - $220 |
| Remanufactured | $100 - $190 (plus core charge) |
| Shop Labor | $150 - $230 |
Frequently Asked Questions
Is it hard to replace the starter on a 2003-2007 Jeep Liberty?

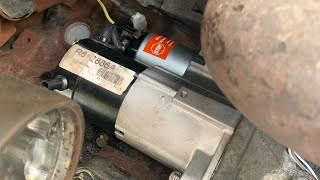

Yes, it is considered a difficult job for a DIY mechanic. The starter is located in a tight space, and on 4x4 models, the front driveshaft must often be removed 🎬 Watch: How to replace the starter without removing the driveshaft. for access. Many owners report that twisting the starter into a very specific orientation 🎬 Watch this video to see the trick for maneuvering the starter out. is necessary to get it out of the vehicle, which causes a lot of frustration.
My Liberty clicks but won't start. Is it the battery or starter?
A single, loud click usually points to the starter. Rapid, fast clicking often points to a battery that is too weak to turn the engine over. If your interior lights are bright and don't dim when you turn the key, the battery is likely okay, and the starter is the more probable cause.
What tools are needed to replace the starter?
You will need a good socket and ratchet set (10mm, 13mm, 15mm sockets are common), wrenches, a floor jack, and jack stands to safely lift the vehicle. Having a variety of extensions and a universal joint for your ratchet can be very helpful for reaching the top bolt.
Should I buy a new or remanufactured starter?
For this vehicle, a new aftermarket starter with a lifetime warranty is often the best value. It avoids the potential quality issues of a remanufactured part while providing peace of mind that you won't have to buy the part again if it fails.
Helpful Videos
Technical Specifications
OEM Part Numbers: R6044735AB 56044735AB 56041641AG 4801424AB
This guide applies to the 2003-2007 Jeep Liberty (KJ), primarily equipped with the 3.7L V6 engine. The 2.4L I4 (discontinued in 2006) and the 2.8L Diesel (2005-2006) may use different starter motors. Always verify the part number with your vehicle's VIN.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
