Engine Oil Pan Gasket Replacement Guide for 2003-2007 Jeep Wrangler TJ
Stop that annoying oil drip and keep your Wrangler's engine protected with the right parts and knowledge.
- Confirm your engine size (2.4L I4 or 4.0L I6) before ordering, as the gaskets are different.
- For the 4.0L, clean and inspect the valve cover and rear main seal areas to confirm the oil pan gasket is the true source of the leak.
- Fel-Pro is a highly recommended aftermarket brand that often includes helpful installation aids.
- Thoroughly cleaning the mating surfaces on both the engine block and oil pan is critical for a leak-free repair.
Is Your Wrangler's Oil Pan Gasket Failing?
Oil leaks are a common issue on the 2003-2007 Jeep Wrangler TJ, and the oil pan gasket is a frequent culprit. Because these Jeeps are built for adventure, the undercarriage is often exposed to rocks and debris that can damage the oil pan or the gasket. Age and heat also cause the gasket material to become brittle and crack. Here are the main signs that your oil pan gasket needs to be replaced:
- Visible Oil Drips: The most obvious sign is seeing fresh puddles of dark oil on the ground where you park.
- Low Engine Oil: If you're constantly needing to top off your engine oil between changes, a leaky gasket could be the cause.
- Oily Grime on the Engine: An oily, dirty film on the bottom of the oil pan and surrounding engine parts is a clear indicator of a slow leak.
- Burning Oil Smell: If oil drips onto hot exhaust components, it will burn off and create a distinct, unpleasant smell.
A Note on the 4.0L Engine
🎬 Watch: Learn about common issues with the 4.0L engineFor the popular 4.0L inline-six engine, oil leaks around the back of the engine are very common. While it could be the oil pan gasket, it's often mistaken for a leaking rear main seal or even a valve cover gasket leaking down the back of the block. It's wise to clean the engine thoroughly and identify the exact source of the leak 🎬 See a successful oil pan and gasket replacement walkthrough before buying parts. Many owners choose to replace the oil pan gasket and rear main seal at the same time, as they are located next to each other and require similar labor to access.
🎬 Watch: How to replace the rear main seal and gasketChoosing the Right Aftermarket Gasket
You don't need to go to the dealer for a quality oil pan gasket. Aftermarket brands offer excellent, and often improved, designs. Modern one-piece rubber or silicone gaskets are a significant upgrade over older, multi-piece cork designs. They provide a better, more durable seal.
Brand Quality Tiers
Based on owner feedback and mechanic recommendations, here's how the available brands generally stack up for your Wrangler:
- Top Tier (Excellent Quality): Fel-Pro is widely regarded as the top choice in the aftermarket. They are known for analyzing and improving upon OEM designs. Their kits for the Wrangler often include helpful extras like "snap-up" alignment tools to make installation easier.
- OEM-Equivalent (Good Quality): Victor Reinz (Reinz) and Mahle are reputable brands that often supply parts directly to vehicle manufacturers. They provide a reliable, factory-quality fit and seal.
- Jeep Specialist (Good Quality): Omix-Ada specializes in Jeep parts and offers gaskets that meet or exceed factory specifications. They are a solid choice for a direct-fit replacement.

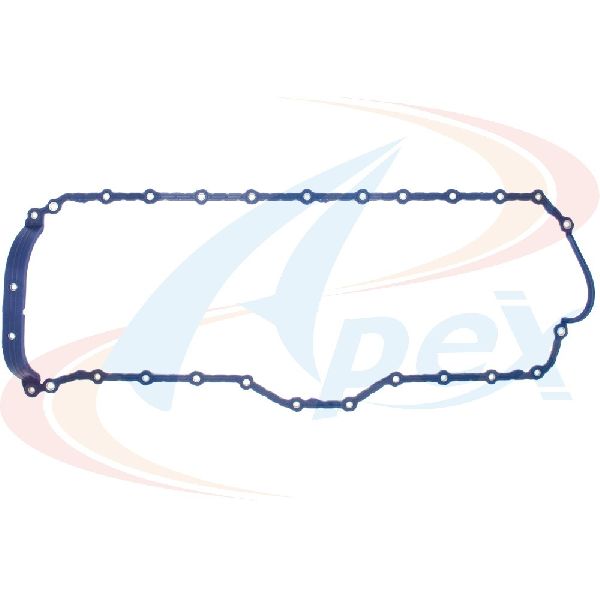

- Standard/Budget (Good Value): Apex offers a more budget-friendly option that still provides a reliable seal for daily driving and light off-roading.
Pro Tip: Preparation is Everything
The success of your gasket replacement depends almost entirely on surface preparation. Both the engine block's and the oil pan's mating surfaces must be perfectly clean and dry. Use a plastic scraper or a razor blade held at a low angle to carefully remove all traces of the old gasket and any sealant. Wipe the surfaces down with brake cleaner or another degreaser to ensure they are free of any oil residue before installing the new gasket.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $33 - $55 |
| Shop Labor | $232 - $790 |
| Total (Installed) | $265 - $845 |
Frequently Asked Questions
Do I need to use RTV sealant with my new gasket?
For modern one-piece gaskets, you typically only need to apply a small dab of RTV silicone at the points where engine components meet, such as where the timing cover meets the block and at the corners of the rear main bearing cap. This helps seal any small imperfections at these junctions. Do not apply a continuous bead of RTV around the entire gasket unless the manufacturer's instructions specifically tell you to.
Is this a one-piece or multi-piece gasket?
Most quality aftermarket gaskets for the 2003-2007 Wrangler are a one-piece design made from molded rubber or silicone. This is a significant improvement over older four-piece cork gaskets, as it is easier to install and less prone to leaking.
Do I have to drop the exhaust to get the oil pan off?
On the 4.0L engine, it is often necessary to at least disconnect and lower the exhaust downpipe from the manifold to get enough clearance to remove the oil pan. Some owners have managed to get the pan out without doing so, but it is very tight.
Is it important to know if I have the 2.4L or 4.0L engine?
Yes, it is critical. The 2.4L four-cylinder and the 4.0L inline-six engines use completely different oil pans and gaskets. You must order the specific gasket set that matches the engine in your Wrangler to ensure a proper fit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53010340AB 5241062AC
Fits 2003, 2004, 2005, 2006, 2007 Jeep Wrangler (TJ). Engine-specific gaskets for 2.4L I4 and 4.0L I6 models. Most aftermarket kits feature a one-piece molded rubber or silicone design.
