Jeep Wrangler TJ (2003-2007) Engine Oil Pressure Switch Guide
Understanding the oil pressure gauge in your TJ is key to engine health; here’s what you need to know before replacing the switch.
- An erratic oil pressure gauge on a TJ is almost always the sending unit, not a major engine problem.
- This is a simple, inexpensive DIY repair that requires a special socket (1-1/16 inch).
- Do not use Teflon tape; the new sensor will have pre-applied sealant and needs to ground through the threads.
- If you hear engine knocking, stop immediately and have the actual oil pressure checked with a mechanical gauge.
Is Your Oil Pressure Gauge Acting Up?
A common issue for 2003-2007 Jeep Wrangler TJ owners is an erratic oil pressure gauge. You might see the gauge drop to zero at idle, only to jump back to a normal reading when you accelerate. Or, upon startup, the gauge might not move at all, triggering the "Check Gauges" light. While this can be alarming, it's frequently caused by a faulty oil pressure switch 🎬 Watch how a faulty sensor causes erratic gauge readings., not a lack of actual oil pressure. These sensors are a known failure point on the 4.0L and 2.4L engines.
First, Verify The Problem
Before replacing parts, always check your oil level to ensure it's correct. If the level is fine but the gauge is acting erratically, the switch is the most likely culprit. However, if you hear engine knocking or ticking noises along with a low-pressure warning, stop the engine immediately. This could indicate a serious internal engine problem that requires a professional diagnosis with a mechanical gauge.
Choosing the Right Aftermarket Switch
When it comes to aftermarket parts for your Jeep, quality can vary. For a simple but critical part like the oil pressure switch, choosing a reliable brand is important. Based on owner experiences and brand reputation, here’s a breakdown of available options.
Tier 1: OEM-Quality Aftermarket
- Standard Ignition (Standard Motor Products): Often regarded as a high-quality aftermarket brand, sometimes even manufacturing parts for OEM. They emphasize durable materials and rigorous testing. Many owners have had good, long-term success with this brand.
Tier 2: Reputable Jeep Specialists
- Crown Automotive: A well-known brand in the Jeep community. Generally considered a good-quality option, often preferred over Omix-Ada for fit and finish.
- Omix-Ada: One of the largest suppliers of Jeep parts. Quality can sometimes be hit-or-miss according to forum discussions, but they are a major player. Some owners use them as a last resort if other brands aren't available.
Tier 3: Value-Oriented Options
- Holstein, Walker Products, True Tech, Vemo, Global Parts: These brands fall into the general replacement category. They offer a cost-effective solution and are widely available. While they may not have the long-standing reputation of the specialist brands, they can be a viable option, especially if backed by a good warranty.
Pro Tip: Many owners on forums suggest that for critical sensors, spending a little more on a reputable brand like Standard or Crown can prevent the headache of a premature failure and having to do the job twice.
Cost of Replacing the Engine Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $11.72 - $56.71 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions
Is it a switch or a sending unit?
For the 2003-2007 TJ, the part functions more like a switch, even though it's often called a sending unit. It doesn't provide a variable resistance to show exact pressure changes. Instead, it signals the computer if the pressure is simply "good" (above a certain PSI), which then places the needle in the middle of the gauge, or "bad," causing it to drop to zero.
Where is the oil pressure switch located on a 2003-2007 Wrangler?
On both the 4.0L I6 and 2.4L I4 engines, the oil pressure switch is located on the passenger side of the engine block, typically near the oil filter housing or motor mount. It has a single electrical connector.
Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly job. It usually takes less than an hour with basic tools. Access can be a bit tight, but it's a straightforward process of unplugging the connector and unscrewing the old sensor. You will need a special oil pressure switch socket or a 1-1/16 inch deep socket/wrench.
🎬 Follow this video guide to replace the unit yourself.Do I need to use thread sealant on the new switch?
No, do not use Teflon tape or other sealants. The sensor grounds itself through the threads to the engine block. Most new aftermarket switches come with a pre-applied thread sealant on the threads that allows for a good connection and prevents leaks.
Are there any recalls for this issue?
No, there have been no specific recalls issued by the NHTSA for the engine oil pressure switch on the 2003-2007 Jeep Wrangler. A Technical Service Bulletin (TSB) for a P0520 code was issued for later model Jeeps, but not specifically for the 2003-2007 TJ.

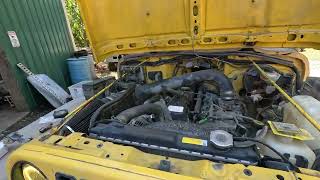

Helpful Videos
Technical Specifications
OEM Part Numbers: 56031003 56031003AB
Fits 2003-2006 4.0L 6-Cylinder and 2.4L 4-Cylinder engines. The part for 2007 models may differ. The connector is a single-pin plug. Requires a 1-1/16" deep-well socket or oil pressure switch socket for removal and installation.
