A Guide to the Transmission Filter Kit for the 2003-2007 Mazda 6
Know the critical differences between 4-cylinder and V6 models before you buy a transmission filter.
- Crucially, only 4-cylinder models have an easily serviceable transmission filter; the V6 filter is internal and requires a transmission teardown.
- A clogged filter on a 4-cylinder can cause harsh shifting, whining noises, and gear slippage.
- Always use fluid that meets the Mazda ATF M-V (Type M5) specification to avoid shifting problems and potential damage.
- Wix and Beck Arnley are reputable aftermarket brands that offer quality replacement kits for the 4-cylinder models.
Is Your Mazda 6 a 4-Cylinder or a V6? The Answer Changes Everything
Before you shop for a transmission filter for your 2003-2007 Mazda 6, you must know which engine you have. The service procedure is not the same for both.
- If you have the 2.3L 4-cylinder engine: Your transmission (model FN4A-EL) has a serviceable filter located inside the transmission pan. This is a part you can and should change as part of routine maintenance. This guide is for you. 🎬 Watch this step-by-step transmission fluid and filter change walkthrough.

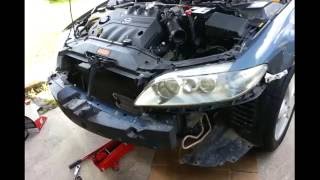

- If you have the 3.0L V6 engine: Your transmission (model Aisin AW6A-EL) has an internal filter that is NOT considered a normal service item. To replace it, the entire transmission must be removed from the car and taken apart. This is a major job for a professional transmission shop, not a simple maintenance task. Do not buy a filter kit expecting to change it during a fluid service. The standard service for the V6 transmission is a simple fluid drain and fill. 🎬 See how to perform a fluid change on V6 models.
V6 Owners: A Word of Caution
Some parts stores may list transmission filter kits for the V6 model. These kits are for the internal filter. Buying one under the assumption it's an easy replacement is a common and costly mistake. If you own a V6, focus on regular transmission fluid changes with the correct fluid type.
Symptoms of a Clogged Transmission Filter (4-Cylinder Models)
A dirty or clogged filter restricts fluid flow. This can starve the transmission of the pressure it needs to operate correctly. You might notice:
- Delayed or Harsh Shifting: The car may hesitate before shifting, or the shifts might feel jerky and rough.
- Slipping Gears: The engine RPMs might flare up between shifts, as if the transmission is momentarily in neutral.
- Whining Noise: A whining or buzzing sound from the transmission area can indicate the pump is straining to pull fluid through a clogged filter.
- Check Engine Light: In some cases, severe transmission performance issues can trigger a trouble code.
Choosing the Right Aftermarket Filter Kit (4-Cylinder Models)
When Mazda built your car, they used a quality filter designed to last. The good news is that reputable aftermarket brands produce reliable replacements that meet or exceed original equipment (OE) quality.
Brand Quality Tiers
- Top Tier (Excellent OE-style replacement): Brands like Wix and Beck Arnley have a strong reputation for quality. They focus on meeting OE specifications for fit and function. Forum users and reviewers generally report good experiences with fitment and reliability. These kits often include high-quality rubber gaskets.
- Standard Tier (Good Value): Brands like ATP and Premium Guard offer a good balance of quality and price. They are a solid choice for a daily driver and are widely available.
- Economy Tier (Budget-Focused): Brands like Vaico can be more budget-friendly. While they will function, they may not have the same level of material quality or strict tolerances as higher-tier brands. They are a choice if the budget is the primary concern.
Pro Tip: Pay attention to the included gasket. Many mechanics and experienced DIYers prefer rubber gaskets over cork as they are less prone to cracking and can be more forgiving during installation.
Estimated Costs for Transmission Filter Service (4-Cylinder)
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Filter Kit | $22 - $50 |
| Transmission Fluid (4-5 quarts) | $40 - $90 |
| Shop Labor | $150 - $250 |
| Total Professional Job | $212 - $390 |
Frequently Asked Questions
How often should I change my transmission filter?
For the 4-cylinder Mazda 6, a good interval is every 30,000 to 60,000 miles, especially if you drive in heavy traffic or tow. Many owners do it with every other transmission fluid change. If you notice any shifting issues, it's a good idea to inspect it sooner.
What kind of transmission fluid do I need?
This is critical. For the 2003-2007 Mazda 6, you must use a fluid that meets the Mazda ATF M-V (Type M5) specification. Using the wrong type of fluid can cause poor shifting and even damage the transmission. Always check the bottle to ensure it is compatible.
Is changing the transmission filter a DIY job?
For the 4-cylinder model, it is possible for an experienced DIYer. It requires safely lifting the car, draining the fluid, removing many bolts, and dealing with a messy pan. On some cars, the frame makes it difficult to remove the pan, and you may need to gently jack up the engine for clearance. If you are not comfortable with this, it's best to leave it to a professional.
Should I get a kit with a cork or rubber gasket?
Both will work, but most modern kits use and many mechanics prefer rubber gaskets. They are generally more durable and easier to install without leaks. If your kit comes with a cork gasket, be careful not to overtighten the pan bolts, as this can crack the gasket.

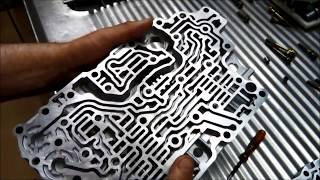

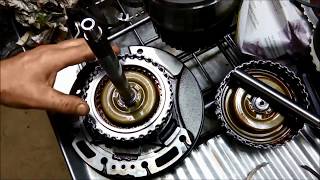

Helpful Videos
Technical Specifications
OEM Part Numbers: FNC1-21-500 FN01-21-500

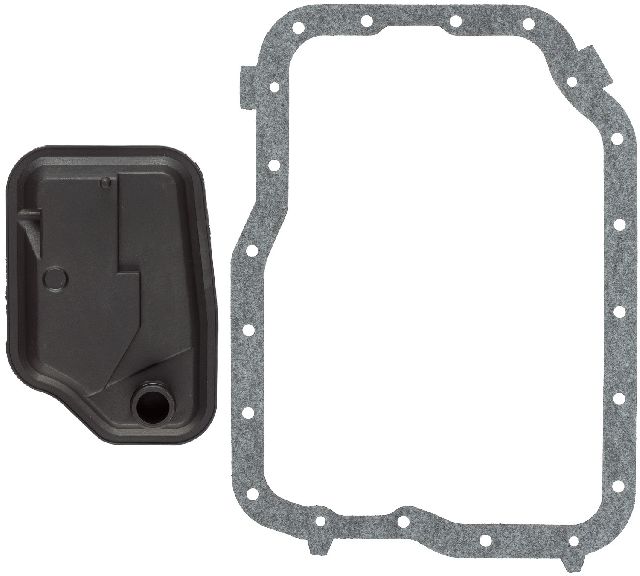

Fitment is specific to the 4-cylinder FN4A-EL transmission. Kit should include the filter and a pan gasket (cork or rubber).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
