Mitsubishi Outlander Ignition Knock Sensor Guide (2003-2007)
Is your Outlander running rough or showing a check engine light? Your knock sensor could be the problem.
- A bad knock sensor will trigger a Check Engine Light with code P0325 and cause poor performance.
- Replacement is labor-intensive due to the sensor's location under the intake manifold.
- Using a quality aftermarket brand like Standard Ignition or Beck Arnley is recommended to avoid premature failure.
- Do not ignore a faulty knock sensor, as it can lead to serious engine damage over time.
Symptoms of a Failing Knock Sensor
When your Outlander's knock sensor fails, the engine computer loses its ability to detect harmful detonation. To protect the engine, it will often default to a 'safe' mode, which can cause several noticeable issues. The most common sign is the check engine light appearing on your dashboard.
- Check Engine Light: A code like P0325 is the most frequent indicator of a knock sensor circuit malfunction.
- Poor Engine Performance: You may feel a significant lack of power and sluggish acceleration. The engine computer retards ignition timing to prevent potential damage, which makes the vehicle feel slow.
- Reduced Fuel Economy: When the engine isn't running efficiently due to incorrect timing, your gas mileage will suffer.
- Engine Noise: In some cases, you might hear a metallic pinging or knocking sound from the engine, especially during acceleration or when going uphill. This is the detonation that the faulty sensor is failing to correct.
Choosing the Right Aftermarket Knock Sensor
For a critical sensor like this, the quality of the replacement part matters. While an OEM Mitsubishi part is always a safe bet, quality aftermarket brands can offer good performance for less money. For the 2003-2007 Outlander, the choice often comes down to balancing cost and reliability.
Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| OEM | Mitsubishi | The original part your vehicle was built with. Offers guaranteed fit and performance but at the highest cost. |
| Premium Aftermarket | Standard Ignition (SMP), Beck Arnley | These brands are known for producing reliable sensors that often meet or exceed OEM specifications. Beck Arnley is known for sourcing parts from OEM suppliers and rebranding them. Standard Ignition is a long-standing reputable manufacturer. They are a solid choice for a balance of quality and price. |
| Standard Aftermarket | Global Parts | These parts are more budget-friendly. While they can work, some forums report a higher chance of premature failure or being dead-on-arrival with economy sensors. For a part with high labor costs to access, it may be worth spending more on a premium brand to avoid doing the job twice. |
Replacement Cost
The cost to replace the knock sensor on a 2003-2007 Outlander is mostly labor. The sensor itself is located on the back of the engine block, and in many cases, the intake manifold must be removed to access it, making it a time-consuming job.
Estimated Costs
| Item | Cost Range |
|---|---|
| New OEM Part | $140 - $230 |
| New Aftermarket Part | $36 - $144 |
| Shop Labor | $202 - $296 |
| Total Professional Replacement | $429 - $524 |
Frequently Asked Questions (FAQ)
Where is the knock sensor located on the 2003-2007 Outlander?
The knock sensor is bolted to the back of the engine block, underneath the intake manifold. This location makes replacement difficult, as the manifold and other components like the power steering pump may need to be removed to gain access.
Is a P0325 code always a bad knock sensor?
Not always. While P0325 points to a malfunction in the knock sensor circuit, the problem could also be the wiring, the connector, or even the ECU. Always inspect the wiring harness for damage, corrosion, or loose connections before replacing the sensor itself.
What happens if I don't replace a bad knock sensor?
Continuing to drive with a faulty knock sensor can lead to long-term engine damage. Without the sensor's input, the ECU can't protect the engine from harmful detonation, which can damage pistons, rings, and bearings over time. You will also experience poor performance and fuel economy until it's fixed.
Can I clean my knock sensor?
No, cleaning the sensor will not fix an internal electrical failure. The sensor is a sealed electronic component. If it has failed, it must be replaced. The issue is typically an internal fault in the piezoelectric element, not dirt on the outside.
Technical Specifications
OEM Part Numbers: MN137468 MD304932 MR514405

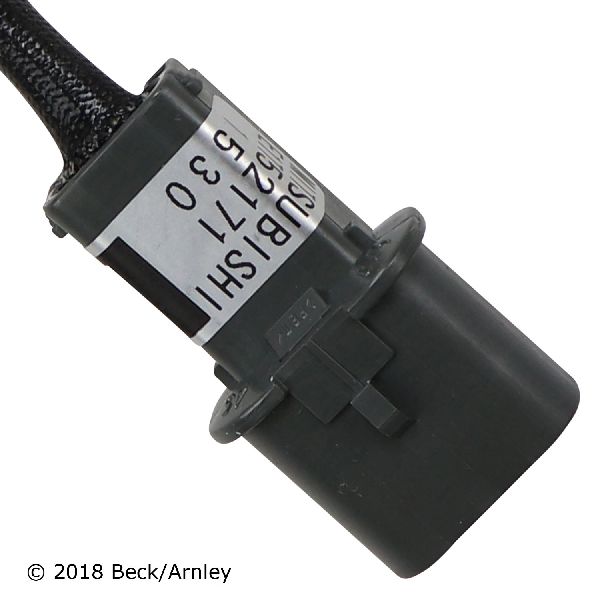

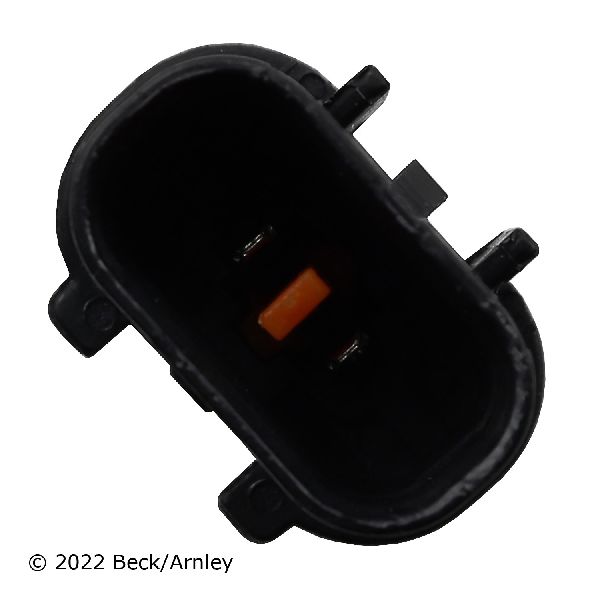

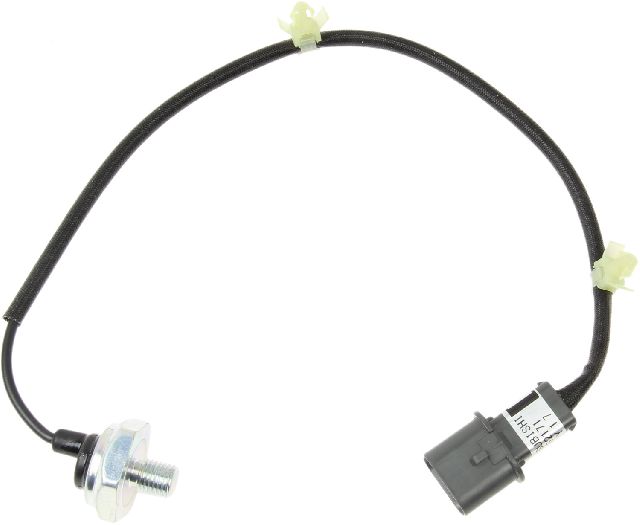

Single bolt-on piezoelectric sensor, typically with a 2-pin oval connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
