2003-2007 Porsche Cayenne Engine Coolant Temperature Sensor Guide
Having temperature gauge problems or a check engine light on your Cayenne? Your coolant sensor may be the culprit.
- Replacement is a labor-intensive job requiring intake manifold removal on V8s; labor is the biggest cost.
- Due to the high labor cost, use a high-quality OEM-supplier brand like Hella or Vemo to avoid repeat repairs.
- Properly bleeding the cooling system with a vacuum tool after replacement is critical to prevent engine damage.
- There are no known recalls for this specific part on the 2003-2007 Cayenne.
Is Your Cayenne's Coolant Temp Sensor Failing?
A bad engine coolant temperature sensor on the 2003-2007 Cayenne can cause a variety of confusing symptoms. Because this sensor provides critical data to the engine computer, a false signal can make the vehicle run poorly. Owners may notice the temperature gauge on the dashboard behaving erratically, either staying at zero or jumping to the maximum reading. Other common signs include the engine cooling fans running at full speed even when the engine is cold, or not running at all when it's hot. This can also trigger a Check Engine Light and lead to reduced fuel economy, rough idling, and even black smoke from the exhaust.
Choosing the Right Aftermarket Sensor: A Word of Caution
Replacing the coolant temperature sensor on the first-generation Cayenne is a labor-intensive job, especially on V8 models (Cayenne S and Turbo). The sensor is located at the back of the engine, buried under the intake manifold. 🎬 See this walkthrough for removing the intake manifold. While it's possible to change it without removing the manifold, it is extremely difficult and not recommended for most people. Because of the high labor involved, this is not a part you want to replace twice.
Here's a breakdown of brand quality tiers for this specific part:
- Tier 1 (OEM-Equivalent): Brands like Hella, Vemo, and Genuine Porsche parts are your best bet. They are known suppliers to German car manufacturers and offer the highest reliability. The OEM part number is often cited as 99660640501.
- Tier 2 (Reputable Aftermarket): Brands such as Delphi, Beck Arnley, and Standard Motor Products (SMP) generally offer good quality and are a viable alternative if OEM-supplier brands are unavailable.
- Tier 3 (Budget): Lesser-known or store-brand parts are the most affordable. However, due to the critical nature of this sensor and the difficult replacement process on the Cayenne, installing a budget part is a significant risk.
Important Replacement Warning
This is not a simple repair. The intake manifold typically needs to be removed for access on V8 engines. The cooling system must be partially drained before starting and, more importantly, properly bled after the new sensor is installed. Failure to bleed the system correctly can leave air pockets, leading to overheating and severe engine damage. A vacuum bleeding tool is highly recommended.
Cost of Replacing the Coolant Temperature Sensor
| Item | Estimated Cost |
|---|---|
| New OEM Sensor | $50 - $75 |
| New Aftermarket Sensor | $13 - $56 |
| Shop Labor | $300 - $600 (2-4 hours) |
*Cost estimates are approximate and can vary based on location and the specific repair shop. Labor costs are high due to the location of the sensor.
Frequently Asked Questions (FAQ)
Where is the coolant temp sensor located on a 2003-2007 Cayenne?
On the V8 models (Cayenne S, Turbo), the sensor is located on a coolant manifold at the very back of the engine, underneath the intake manifold, near the firewall. 🎬 Watch: See the exact sensor location on the engine. On V6 models, it is also in a very tight and difficult-to-access location at the back of the engine.
Can I replace the Cayenne coolant temp sensor myself?
This is a challenging DIY job. For V8 models, it requires removing the intake manifold, which is a significant task. It is recommended for experienced DIY mechanics only. 🎬 Watch: Pro tips for replacing the Cayenne coolant sensor. If you are not comfortable with extensive engine work and do not have tools like a vacuum coolant bleeder, it is best to leave this job to a professional.
Are there any recalls for the coolant temperature sensor on the 955 Cayenne?
No. Searches of NHTSA data and Porsche forums show no specific recalls or widespread Technical Service Bulletins (TSBs) for the engine coolant temperature sensor on the 2003-2007 Porsche Cayenne. Recalls found relate to newer models or different cooling system components.
What are the common trouble codes for a bad coolant temp sensor?
The most common diagnostic trouble codes (DTCs) are P0117 (Engine Coolant Temperature Sensor 1 Circuit Low) and P0118 (Engine Coolant Temperature Sensor 1 Circuit High). P0117 often occurs when the sensor shorts, causing the gauge to read zero, while P0118 can happen with an open circuit, causing the gauge to read max.

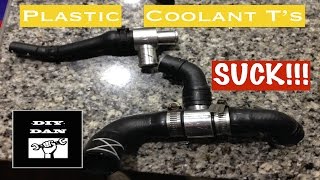

Helpful Videos
Technical Specifications
OEM Part Numbers: 99660640501
The sensor for V8 models is a 22mm, 4-pin sensor that screws into the rear coolant distributor.
