A Guide to the Engine Timing Chain Guides for the 2003-2007 Saturn Ion
If you hear a rattling noise from your Saturn Ion's engine, it's a warning sign you cannot afford to ignore.
- The timing chain system is a known weak point on 2003-2007 Saturn Ions; do not ignore a rattling engine noise.
- This is an interference engine; a broken timing chain will cause catastrophic engine damage.
- Always replace the entire timing chain kit (chain, guides, tensioner, sprockets), not just the broken guide.
- A quality aftermarket kit from a brand like Cloyes, Melling, or INA is a reliable and cost-effective solution.
A Known Weak Point in the Saturn Ion Engine
The timing chain system is a widely recognized failure point on the 2.2L Ecotec engine used in the 2003-2007 Saturn Ion, particularly in the earlier 2003-2004 models. The original design had an oiler nozzle that did not provide enough lubrication to the timing chain at low engine speeds. This oil starvation leads to a stretched timing chain, a failed tensioner, and ultimately, broken plastic timing chain guides.
Warning: This is an Interference Engine
The 2.2L Ecotec is an interference engine. This means if the timing chain breaks or jumps time, the pistons will collide with the valves. This event causes catastrophic, expensive engine damage that typically requires a complete engine replacement. Do not ignore the symptoms of a failing timing chain system.
Symptoms of a Failing Timing Chain Guide
A broken guide is usually the result of a stretched chain or bad tensioner. The symptoms below point to a problem with the entire timing system.
- Engine Rattle: The most common sign is a distinct rattling, slapping, or scraping noise coming from the passenger side of the engine. 🎬 Watch: Hear what a failing timing chain sounds like. This noise is often most noticeable during a cold start and may come and go initially.
- Check Engine Light: A stretched chain can cause camshaft and crankshaft correlation errors, triggering the Check Engine Light. Code P0016 is very common with this issue. 🎬 See why you should diagnose P0016 before starting repairs.
- Poor Engine Performance: You may experience rough idling, hesitation, a lack of power, or even stalling as the engine's timing becomes incorrect.
Choosing the Right Aftermarket Replacement
When a timing chain guide fails, you must replace the entire timing chain kit. Replacing just the one broken guide is a temporary fix that ignores the root cause—a worn chain and tensioner—and will lead to another failure. For a vehicle of this age, a quality aftermarket kit is a smart and cost-effective choice. Many aftermarket kits are considered as good as, or even better than, the original parts because they include updated components.
Look for a complete kit from a reputable brand that includes:
- Timing Chain
- All Timing Guides (Fixed and Pivoting)
- Timing Chain Tensioner
- Camshaft and Crankshaft Sprockets
- The updated, higher-flow oiler nozzle (per TSB #03-06-01-017)
Pro Tip: Replace the Water Pump
The water pump on the 2.2L Ecotec engine is driven by the balance shaft chain, which is located behind the main timing chain cover. Since all the labor to access this area is already being done, it is highly recommended to replace the water pump and the balance shaft chain kit at the same time. This can save you from a very expensive repair down the road.
Brand Quality Tiers
When shopping for a timing kit, focus on established brands known for quality engine components. While store brands are available, sticking with a trusted name is wise for such a critical job.
- Top Tier (Professional's Choice): Brands like Melling and INA are highly regarded by professional mechanics. Melling is a stalwart in engine parts, and INA (part of the Schaeffler Group) is a major OEM supplier known for excellent engineering.
- Quality Aftermarket (Popular Choice): Cloyes is a long-standing and very popular brand for timing components. They offer comprehensive kits and are a reliable choice for DIYers and shops alike. In some cases, even OEM parts are manufactured by Cloyes.
Estimated Replacement Costs
The majority of the cost for this repair is labor. The timing cover is difficult to access, making this a time-consuming job.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Timing Kit | $150 - $250 |
| New Aftermarket Timing Kit | $19.67 - $46.47 (guides only) to $90 - $330 (full kit) |
| Shop Labor | $561 - $823 |
| Total Estimated Job Cost | $750 - $1,400+ |
Note: Costs are estimates and vary by location and the specific parts included. This table reflects replacing the full timing kit.
Frequently Asked Questions (FAQ)
Was there a recall for the Saturn Ion timing chain?
No, there was no official safety recall for the timing chain system on the 2003-2007 Saturn Ion. GM did issue a Technical Service Bulletin (TSB #03-06-01-017) with an updated oiler nozzle to improve lubrication, and NHTSA conducted a preliminary investigation, but it did not lead to a recall for the Ion. The main recalls for the Ion were for the ignition switch and power steering systems.
Can I just replace the one broken guide?
No. A broken guide is a symptom of a larger problem, almost always a stretched chain and a failing tensioner. If you only replace the guide, the underlying issue will cause the new guide to fail quickly. You must replace the entire timing chain kit (chain, guides, tensioner, and sprockets) to properly fix the problem.
Is this a DIY-friendly job?
This is an advanced, labor-intensive repair that is not recommended for beginners. It requires significant disassembly of the engine, special tools to hold the camshafts, and a precise understanding of how to set engine timing. An error during installation can destroy the engine when you try to start it. For most owners, this job is best left to a professional mechanic.

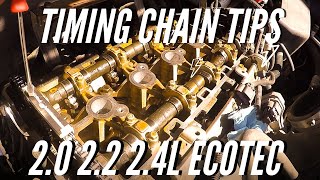

🎬 Watch: Full step-by-step Ecotec timing chain replacement walkthrough.What happens if I keep driving with a rattling noise?
Continuing to drive is a major risk. The rattling indicates the chain is loose. If it jumps a few teeth, your car will run poorly or not at all. If it breaks completely, the pistons will crash into the valves, resulting in catastrophic engine failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12588387
The timing system in the 2003-2007 Saturn Ion with the 2.2L L61 engine is a chain-driven system. It includes a primary timing chain, a balance shaft chain, multiple plastic guides, and hydraulic tensioners. A key service update is TSB #03-06-01-017, which introduced a higher-flow oiler nozzle to improve chain lubrication.
