A Guide to the Engine Valve Cover Gasket for the 2003-2007 Saturn Ion
If you smell burning oil or see leaks on your Ecotec engine, your valve cover gasket is the most likely suspect.
- A burning oil smell is the most common sign of a failed valve cover gasket on your Saturn Ion.
- Proper installation is more critical than the brand of gasket; ensure mating surfaces are spotless and bolts are torqued to 89 in-lbs.
- Quality aftermarket brands like Elring, Reinz, and Victor Gaskets offer a reliable and cost-effective repair.
- Apply a small amount of RTV sealant only where the timing chain cover meets the head to prevent common leaks.
Is Your Saturn Ion Leaking Oil?
A common issue for the 2003-2007 Saturn Ion is a leaking engine valve cover gasket. This is a frequent point of failure as the vehicle ages. When the gasket fails, oil seeps out from the top of the engine. Often, this oil drips onto the hot exhaust manifold, creating a distinct burning oil smell in and around your car. In other cases, the spark plug tube seals fail, allowing oil to fill the wells, which can lead to engine misfires.
Symptoms of a Failing Valve Cover Gasket
- Burning Oil Smell: This is the most common symptom, caused by oil dripping onto the hot exhaust manifold.
- Visible Oil Leaks: You may see oil residue and grime collected on the side of the engine, just below the black plastic valve cover.
- Oil in Spark Plug Wells: If the spark plug tube seals fail, you will find liquid oil when you pull the ignition coil pack to access the spark plugs. This can cause misfires and damage the coils. 🎬 See what oil in the spark plug wells looks like.
- Low Engine Oil: A significant leak will cause a noticeable drop in your engine oil level between changes, requiring you to top it off frequently.
Known Issues & Recalls
There are no specific recalls or widespread Technical Service Bulletins (TSBs) from General Motors for a leaking valve cover gasket on the 2003-2007 Saturn Ion. However, this is a well-documented common failure point for the 2.2L Ecotec engine due to the aging of the original rubber gasket material.
Choosing the Right Aftermarket Gasket Set
For a part like a valve cover gasket, you don't need to pay the premium for a dealer part. High-quality aftermarket brands offer excellent reliability and are used by professional mechanics and DIYers alike. The success of this repair depends more on careful installation than a minor difference between reputable brands.

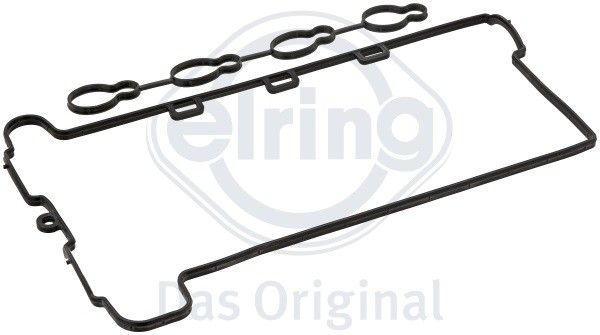

- Reputable Aftermarket Brands (Elring, Reinz, Victor Gaskets): These brands are known for producing OE-quality gaskets. They are a reliable choice and provide a durable seal when installed correctly. Forum users and mechanics often use these brands without issue.
- OEM Gaskets: While an OEM gasket from a GM dealer is always an option, it will be the most expensive choice and offers no significant performance advantage over a quality aftermarket kit for this specific repair.

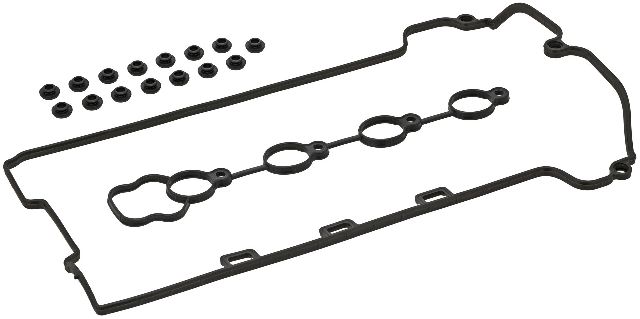

All recommended aftermarket kits for the Saturn Ion are made of molded rubber and include the main perimeter gasket, spark plug tube seals, and often the bolt grommets.
Installation is Key
The biggest cause of repeat leaks is improper installation. Make sure the valve cover's groove and the cylinder head's mating surface are perfectly clean and free of old oil and gasket material. Use a torque wrench to tighten the bolts to the correct specification (89 in-lbs) in a spiral sequence, starting from the center and working your way out. Do not overtighten, as this can crack the plastic valve cover or warp the gasket.
Cost of Replacement
Replacing the valve cover gasket is a relatively inexpensive repair, especially if you do it yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $42 - $91 |
| Shop Labor | $171 - $251 |
| Total Professional Replacement | $228 - $308 |
Frequently Asked Questions (FAQ)
Do I need to use RTV sealant with the new gasket?
Yes, but only in specific spots. The molded rubber gasket itself does not require sealant. However, you should apply a small dab of oil-resistant RTV sealant at the corners where the timing chain cover meets the cylinder head. This is a common point for leaks even with a new gasket if it is not sealed properly.
Is this a difficult job to do myself?

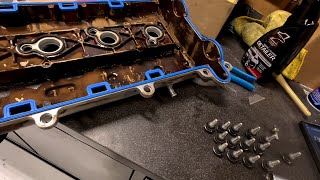

No, this is considered a beginner-to-intermediate level job. It requires basic hand tools (primarily a 10mm socket) and can be completed in 1-2 hours. 🎬 Watch: Step-by-step guide to replacing your Ion's valve cover gasket. The most critical steps are cleaning the surfaces and torquing the bolts correctly.
What else should I replace while I have the valve cover off?
This is the perfect time to inspect and replace your spark plugs if they are due. You will have direct access to them once the ignition coil pack is removed. Also, inspect the ignition coil pack for any signs of oil contamination or cracking.
What is the torque spec for the valve cover bolts?
The correct torque specification for the 10mm valve cover bolts is 89 inch-pounds (approximately 7.4 ft-lbs). It is very important to use an inch-pound torque wrench and not to overtighten them, as this can cause the new gasket to leak or damage the valve cover.
Helpful Videos
Technical Specifications
OEM Part Numbers: 190009 151071301
Kit includes molded rubber perimeter gasket, four spark plug tube seals, and bolt grommets.
