Saturn Ion Manual Transmission Mount Guide (2003-2007)
Solving the clunks, shakes, and vibrations in your 2003-2007 Saturn Ion with a manual transmission.
- Clunking noises and heavy vibration are the most common signs of a failed manual transmission mount on an Ion.
- Since new OEM mounts are largely unavailable, quality aftermarket brands are the only practical option for this repair.
- The Saturn Ion has three transmission mounts; if one fails, it's wise to inspect the other two and the single engine mount, as they are likely worn as well.
- Continuing to drive with a bad mount can cause damage to other parts like CV axles and the exhaust flex pipe.
Is Your Saturn Ion Shaking or Clunking?
If you're feeling a lot of vibration through the floor and steering wheel, or hearing loud clunking sounds when you shift, accelerate, or brake, a bad manual transmission mount is a likely culprit. These are very common symptoms for the 2003-2007 Saturn Ion as the original rubber mounts get old and break down. Ignoring a failed mount puts extra stress on other parts, like your CV axles and the exhaust flex pipe, which can lead to more expensive repairs down the road.
Symptoms of a Failing Manual Transmission Mount
- Excessive Vibration: A constant buzzing or shaking felt in the cabin, especially when the car is idling or accelerating. You might feel it get worse at certain speeds.
- Clunking or Banging Noises: Loud thuds or bangs when you shift gears, take off from a stop, or hit the brakes hard. This is the sound of the transmission moving and hitting against other parts.
- Rough Shifting: Shifting gears with your manual transmission might feel more difficult, or you might hear grinding noises because the transmission is no longer aligned properly.
- Visible Engine Movement: If you have a helper put the car in gear and gently apply the gas with the brakes on, you might see the whole engine and transmission assembly rock back and forth excessively under the hood.
Known Issues & Recalls
There are no official recalls or Technical Service Bulletins (TSBs) from GM or the NHTSA specifically for the manual transmission mounts on the 2003-2007 Saturn Ion. However, this model was part of major recalls for a faulty ignition switch and issues with the electric power steering, but these do not relate to the mounts.
Choosing the Right Aftermarket Mount
Original Equipment (OEM) mounts for the Saturn Ion are very hard to find new, so aftermarket parts are the standard choice for this repair. The brands you will find (Anchor, DEA, Pioneer) are budget-friendly options. Here’s an honest assessment:
- Brand Tiers: Most aftermarket mounts for the Ion fall into the 'economy' category. Brands like Anchor and DEA are known for being affordable but have mixed reviews on quality and longevity. Some users report they work fine, while others experience early failure or fitment issues. Pioneer is sometimes seen as having a slightly better finish, closer to the original part.
- OEM vs. Aftermarket: While a new OEM part would be ideal, it's not a realistic option for most owners. An aftermarket mount will solve the immediate problems of clunking and vibration. Be aware that they may be made of harder rubber, which can transmit a little more vibration into the car, and they may not last as long as the original factory part did.
Pro Tip: Your Ion has three transmission mounts (upper, front lower, and rear lower) and one engine mount. If one has failed due to age and mileage, the others are likely worn out too. It is highly recommended to inspect all mounts and replace any that show signs of cracking, collapsed rubber, or excessive movement. Replacing them in a set can save you from doing the job again in a few months.
Cost to Replace a Saturn Ion Manual Transmission Mount
| Item | Estimated Cost |
|---|---|
| New Aftermarket Manual Transmission Mount | $49.18 - $85.93 |
| Shop Labor for One Mount | $150 - $250 |
| Total Professional Replacement (One Mount) | $200 - $335 |
Note: Costs are estimates and can vary based on your location and the specific mount being replaced. The upper mount, for example, requires more labor to access.
Frequently Asked Questions
How many transmission mounts does a manual Saturn Ion have?
The manual transmission Saturn Ion has a total of four mounts supporting the drivetrain: one engine mount and three separate transmission mounts. They are often referred to as the upper mount (under the fuse box), the front lower mount, and the rear lower mount.
Is it hard to replace a Saturn Ion transmission mount myself?
For an experienced DIYer, this is a manageable job. It is considered moderately easy to intermediate. You will need a good set of metric sockets, extensions, and most importantly, a floor jack and a block of wood to safely support the transmission while you unbolt the mount. The upper mount requires removing the air filter box and some wiring to access the bolts.
Should I replace all the mounts at once?
It's a good idea. The mounts wear out from age and stress. If one has completely failed, the others have been taking on extra load and are likely weak. Inspecting all of them during the repair is smart, and replacing them as a set can prevent future failures and save on labor costs.
What happens if I don't replace a bad transmission mount?
You can drive the car, but it's not recommended for long. The excessive movement can cause damage to other expensive components, including CV axles, exhaust pipes, and even other mounts. The constant vibration and clunking will also make the car unpleasant and potentially unsafe to drive.
Technical Specifications
OEM Part Numbers: 22722618 22671215

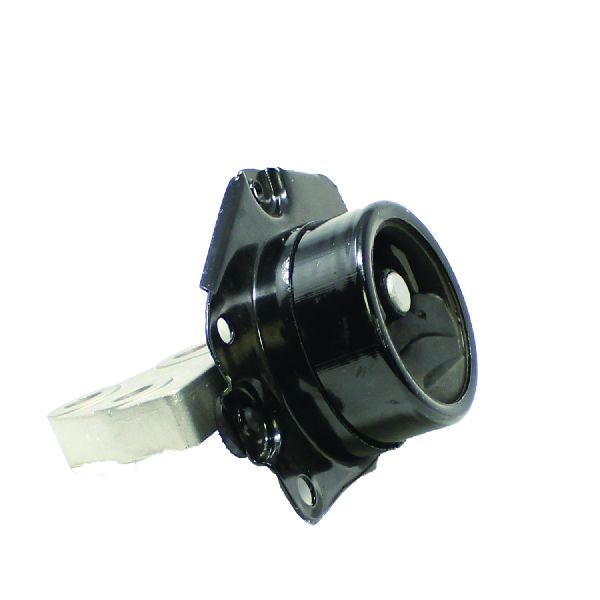

The manual transmission Saturn Ion uses a set of three transmission mounts and one engine mount. Aftermarket part numbers vary by brand; for example, Anchor part numbers for the various mounts include 3291 (Upper), 3081 (Front Lower), and 3086 (Rear Lower). Always verify the specific mount location (upper, front, rear) before ordering, as they are not interchangeable.
