Saturn Ion Steering Tie Rod End Guide (2003-2007)
Solving steering wander and clunking noises in your 2003-2007 Saturn Ion starts with checking your tie rod ends.
- A bad tie rod on an Ion causes steering looseness, clunking on turns, and uneven tire wear.
- Differentiate tie rod failure from the common EPS motor failure, which makes steering heavy and triggers a warning light.
- Replacing tie rod ends is a manageable DIY job, but a professional wheel alignment is mandatory immediately after.
- For best results, replace outer tie rod ends in pairs using a quality aftermarket brand like Moog, TRW, or ACDelco Professional.
Is It Your Tie Rods, or Something Else?
If you own a 2003-2007 Saturn Ion, you've probably heard about steering issues. Many clunks and steering problems are blamed on tie rods, but your car has a few other common culprits. It's important to know the difference.
The Electric Power Steering (EPS) Recall
Nearly all 2004-2007 Ions were recalled for a faulty electric power steering motor (NHTSA Recall #14115). This can cause a sudden loss of power assist, making the wheel very hard to turn, especially at low speeds. A "PWR STR" warning light will usually appear on your dash. This is different from a bad tie rod, which typically causes looseness or noise, not a loss of power assist.
Other common noise-makers on the Ion are worn sway bar links and a failing intermediate steering shaft, which can cause a clunking sound or a loose feeling in the steering wheel. However, if your symptoms include a combination of steering looseness, specific noises, and uneven tire wear, a bad tie rod end is a likely suspect.
Signs of a Failing Tie Rod End on Your Ion
A worn tie rod end is a safety concern because if it fails completely, you will lose steering control on that wheel. Look for these specific symptoms:
- Loose Steering or Wander: The steering wheel feels sloppy, has a lot of "play," or you constantly have to make small corrections to keep the car driving straight.
- Clunking or Knocking Noises: You hear a distinct clunk or knock from the front end, especially during low-speed turns like pulling into a parking spot.
- Uneven Tire Wear: The inside or outside edge of your front tires wears out much faster than the rest of the tread. This is a classic sign of a bad alignment, often caused by a worn tie rod.
- Vibration Through the Steering Wheel: A shaky steering wheel, especially at higher speeds, can be caused by the wheel shimmying due to a loose tie rod end.
Choosing the Right Aftermarket Tie Rod End
For a car the age of the 2003-2007 Saturn Ion, high-quality aftermarket parts offer the best value. The original parts have likely been replaced at least once. Here’s how the available brands generally stack up.
Brand Quality Tiers
Premium Brands ($35 - $59):

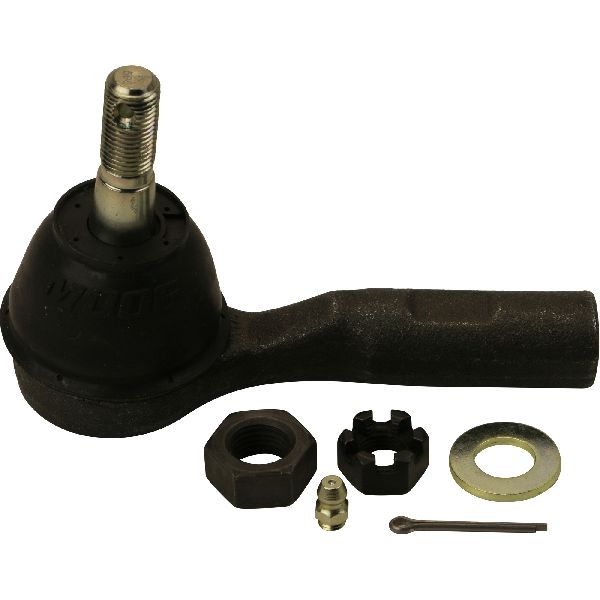

- Moog: Often considered the gold standard in aftermarket chassis parts. Moog's "Problem Solver" line typically includes improvements over the original design, such as greaseable fittings for longer life and stronger internal components.
- TRW: A major OEM supplier, TRW parts are engineered to meet or exceed original factory specifications. They are a very safe bet for quality and fit.
- ACDelco Professional (Gold): This is ACDelco's top-tier aftermarket line, designed for professional technicians. Quality is comparable to the original GM part.

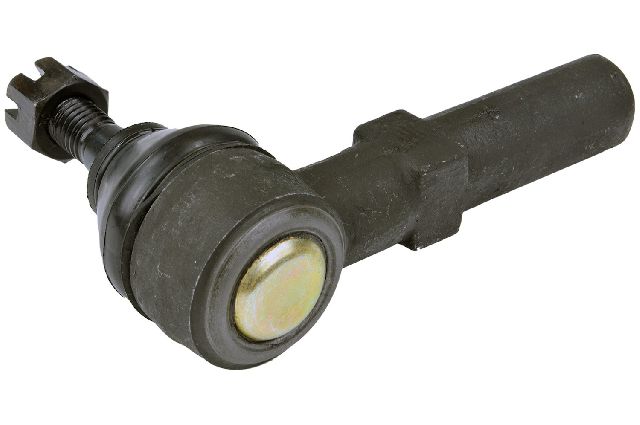

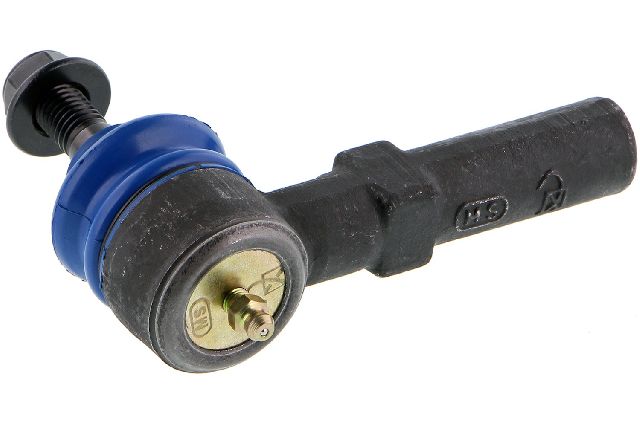

- Mevotech: Known for innovative engineering, Mevotech often adds durability enhancements to their chassis parts, similar to Moog.
Standard Brands ($20 - $35):
- Delphi: Another respected OEM supplier, Delphi parts are a reliable choice for daily driving.
- ACDelco Silver (Advantage): This is ACDelco's mid-grade offering, providing a good balance of quality and price.
- Dorman: A well-known aftermarket brand that produces a vast range of parts. Quality is generally considered suitable for everyday repairs.
Economy Brands ($15 - $25):
- QuickSteer, Skyward, Suspensia, and various store brands: These brands meet basic requirements and can be a good option if budget is the primary concern. They may not have the advanced features or longevity of premium brands.
Pro Tip: Greaseable vs. Sealed
Some aftermarket tie rods (like many from Moog) have a grease fitting (zerk). This allows you to add fresh grease periodically, which can flush out contaminants and extend the part's life. Sealed units are maintenance-free but cannot be re-lubricated. For a vehicle like the Ion, a greaseable part can be a long-lasting upgrade.
Estimated Costs
| Item | Estimated Cost |
|---|---|
| Aftermarket Outer Tie Rod End (Part Only) | $15 - $59 each |
| Shop Labor (Replacement) | $75 - $150 |
| Wheel Alignment (Required) | $80 - $120 |
| Total Professional Replacement (One Side) | $170 - $330 |
Frequently Asked Questions (FAQ)
Is replacing a tie rod end a DIY job?
Yes, for someone with moderate mechanical skill. The process involves lifting the car, removing the wheel, loosening a jam nut, and using a special tool or a hammer to separate the tie rod from the knuckle. However, a professional wheel alignment is absolutely required immediately after the repair.
Do I have to get an alignment after replacing tie rods?
Yes, without exception. Replacing a tie rod end will change your vehicle's toe alignment setting. Skipping the alignment will cause poor handling, pulling to one side, and will destroy your front tires in a very short time.
Should I replace the inner and outer tie rods at the same time?

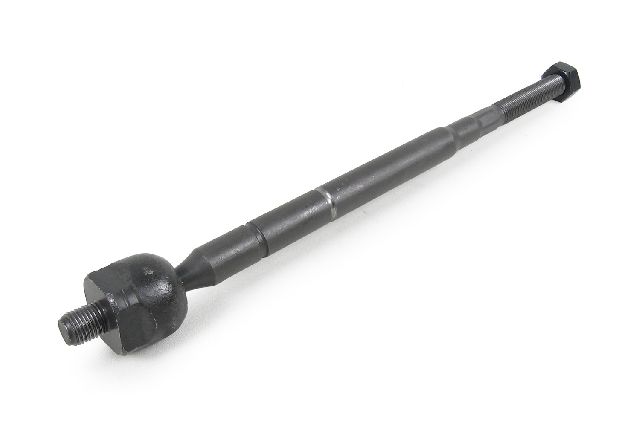

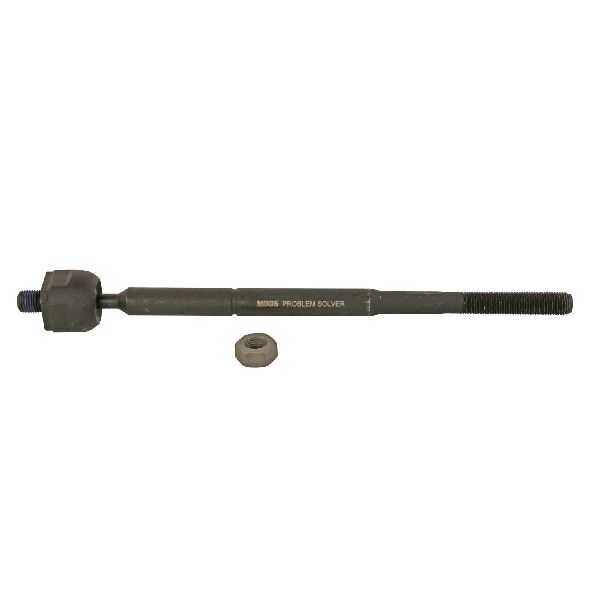

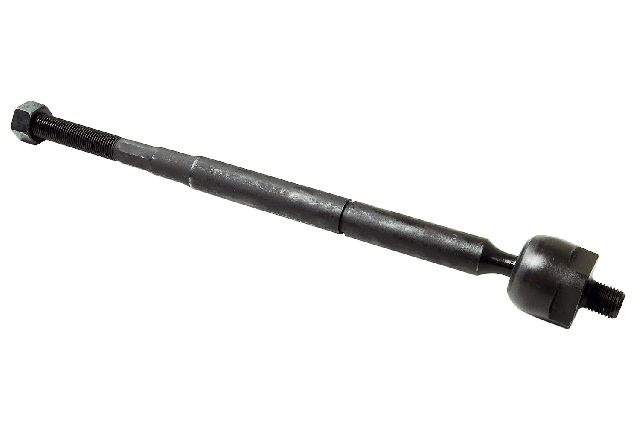

Not necessarily. The outer tie rod end wears out more frequently. You can check the inner tie rod for play when the outer is disconnected. If the inner is tight, there's no need to replace it. Replacing the inner tie rod requires a special tool.
Should I replace them in pairs (left and right)?
It is highly recommended. If one side has failed due to age and mileage, the other side is likely not far behind. Replacing both at the same time saves you from doing the same job twice and paying for a second alignment down the road.
Technical Specifications
The 2003-2007 Saturn Ion uses a rack-and-pinion steering system with one inner and one outer tie rod end per side. The outer tie rod end connects to the steering knuckle.
