A Guide to the Engine Coolant Thermostat for the 2003-2008 Audi A4 Quattro
Understand the symptoms of failure and how to choose the right replacement thermostat for your B6 or B7 generation A4.
- Thermostat replacement is a difficult, labor-intensive job on the A4, requiring alternator removal.
- The most common failure is being stuck open, causing a P0128 code and an engine that won't warm up properly.
- Due to the high labor cost, choose a quality OEM-equivalent (Calorstat) or trusted aftermarket (Gates, Facet) brand to avoid repeat repairs.
- It is highly recommended to also replace the coolant temperature sensor and inspect the plastic J-plug during the job.
Is Your A4's Thermostat Failing?
A bad thermostat in the B6 and B7 generation Audi A4 can cause issues that might seem confusing. The most common failure is the thermostat getting stuck in the open position. This means coolant is always flowing to the radiator, which prevents your engine from getting fully warm, especially on the highway. A more dangerous, though less common, failure is a thermostat stuck closed, which will cause your engine to overheat quickly and can lead to serious damage.
Key Symptoms of a Bad Thermostat:
- Engine Runs Too Cold: The temperature gauge on your dash never reaches the middle 90°C (194°F) mark, or you notice it dropping towards cold when driving at highway speeds.
- Check Engine Light: A thermostat that is stuck open will often trigger a Check Engine Light with the code P0128 (Coolant Thermostat Below Regulatory Temperature).
- Poor Heater Performance: If the engine isn't getting hot enough, the air blowing from your vents for heat will only be lukewarm.
- Engine Overheating: If the thermostat sticks closed, the temperature gauge will shoot into the red. You may see a warning light or steam from the engine. This is a critical situation, and you should stop driving immediately.
- Coolant Leaks: The plastic thermostat housing can become brittle with age and crack, leading to coolant leaks on the front of the engine.
A Difficult and Labor-Intensive Repair
Replacing the thermostat on the 2003-2008 A4 Quattro is not a simple job. It is located behind the alternator on most engines, requiring the removal of the serpentine belt and the alternator itself to gain access. Because of the high labor cost involved, it is critical to use a high-quality replacement part to avoid doing the job twice.
Choosing the Right Aftermarket Thermostat
Given the high labor cost, saving a few dollars on a cheap part is not recommended. The quality difference between brands can be significant. Here’s a breakdown of the available brands.
Brand Tiers

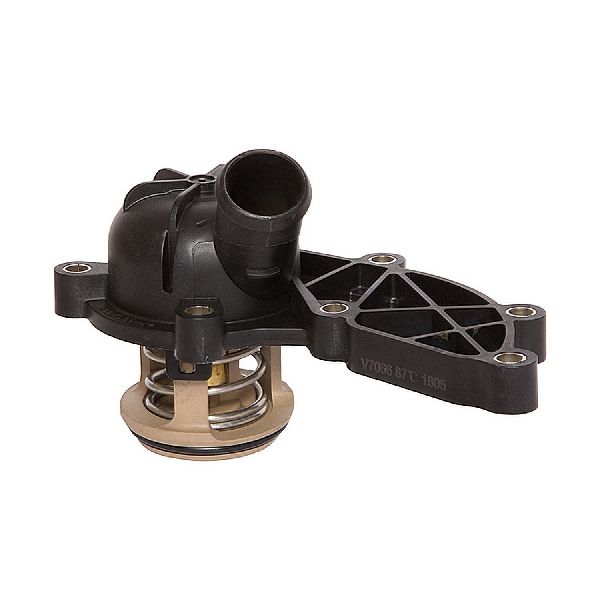

- OEM-Equivalent Brands (Calorstat): Calorstat (by Vernet) is a well-known OEM supplier for many European vehicles. Choosing a part from this brand is the closest you can get to dealer quality and is highly recommended for reliability.

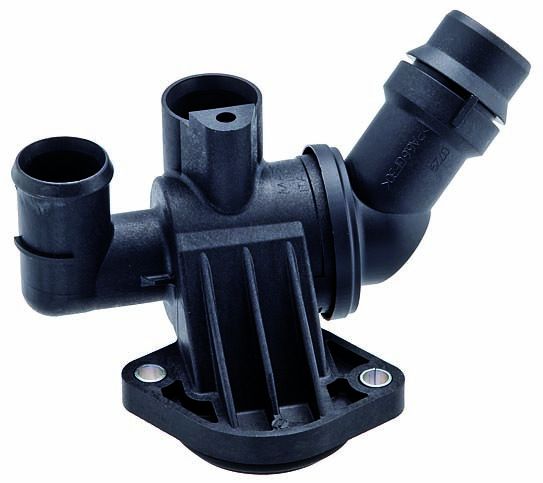

- Trusted Aftermarket Brands (Gates, Facet): Gates is a major name in the aftermarket, known for producing reliable parts that meet or exceed original specifications. Facet is another established brand that produces quality components, sometimes with design improvements over the original, such as using metal instead of plastic fittings.
- Budget-Friendly Brands (URO Parts): URO Parts is known as a budget-friendly option. While some of their standard replacement parts have mixed reviews regarding longevity, they also offer upgraded parts like all-aluminum thermostat housings that can be a durable alternative to the failure-prone OEM plastic. If considering this brand, the upgraded aluminum version is the wiser choice.
Pro Tip: Replace Other Parts While You're In There
Since the repair is so involved, it's smart to replace a few other small parts at the same time. It is highly recommended to replace the coolant temperature sensor, as a faulty sensor can mimic the symptoms of a bad thermostat. Also, carefully inspect the plastic "J-plug" coolant pipe, which often becomes brittle and can crack during the repair.
Cost of Replacing the Thermostat
The cost is heavily influenced by the high labor charge due to the part's location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Thermostat Assembly | $47 - $167 |
| Shop Labor | $465 - $685 |
| Total Professional Replacement | $900 - $1,150+ |
Frequently Asked Questions
Are there any recalls for the thermostat on my A4?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific safety recalls for the main engine coolant thermostat on the 2003-2008 Audi A4. There have been recalls for auxiliary coolant pumps on other Audi models, but these do not apply to the main thermostat on the B6/B7 A4.
Can I just replace the inner thermostat valve instead of the whole housing?
No. For this generation of Audi A4, the thermostat element is integrated into the plastic housing and is only sold as a complete assembly. This design ensures all related seals and connections are new, reducing the risk of leaks.
My temperature gauge is acting weird. Is it the thermostat or the coolant temperature sensor?
It could be either. A faulty coolant temperature sensor can send incorrect readings to your gauge. However, a thermostat stuck open will also cause low or fluctuating temperature readings. Because the labor to get to the thermostat is so intensive, it is strongly recommended to replace both the thermostat assembly and the coolant temperature sensor at the same time to prevent having to do the job again.
What kind of coolant should I use?
You must use a coolant that meets Audi's specifications, which is typically a G12 or G13 formula. These are phosphate-free coolants designed for European engines. Using the wrong type of coolant (like a generic green or orange fluid) can cause corrosion and damage to the cooling system. Always mix it with distilled water per the instructions on the bottle.
Technical Specifications
OEM Part Numbers: 06B121111K 06B121111H 06B121111D 06B121111G
Sold as a complete housing assembly with integrated thermostat. Opening temperatures vary by engine, but are typically around 87°C or 100°C.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
