A Guide to the Manifold Absolute Pressure Sensor for the 2003-2008 Cadillac CTS
Solve rough idling, poor fuel economy, and hesitation issues by understanding and choosing the right MAP sensor for your CTS.
- A faulty MAP sensor commonly causes a Check Engine Light (P0106, P0107), rough idle, poor fuel economy, and hesitation.
- Replacement is very easy and accessible on top of the engine, making it a great DIY job.
- For best results, choose an OEM (ACDelco) or premium aftermarket brand (Bosch, Delphi) to ensure accurate readings and longevity.
- In freezing weather, a P0106 code can be caused by temporary icing on the sensor and may not require replacement.
Is Your Cadillac CTS MAP Sensor Failing?
When the MAP sensor on your 2003-2008 CTS starts to go bad, it sends incorrect pressure readings to the engine's computer. This throws off the delicate balance of air and fuel, leading to a number of noticeable driving problems. Ignoring these signs can lead to poor performance, bad fuel economy, and potentially leave you stranded.
Common Symptoms of a Bad MAP Sensor:
- Check Engine Light: This is often the first sign. The light will come on with codes like P0106, P0107, or P0108 stored in the computer. 🎬 See how to diagnose these specific trouble codes easily.
- Rough Idle: Your engine may shake or idle unevenly when stopped.
- Hesitation or Stalling: The car may stumble when you accelerate or stall when you come to a stop.
- Poor Fuel Economy: If the computer thinks there is more air than there actually is, it will inject too much fuel, wasting gas.
- Black Smoke from Exhaust: This is a clear sign that the engine is running too rich (too much fuel), often due to a bad MAP sensor reading.
- Reduced Engine Power: Your CTS may feel sluggish and slow to respond to the throttle.
Known Issue: Cold Weather Faults (TSB 20-NA-043)
General Motors issued a technical service bulletin that applies to the P0106 trouble code. In very cold weather, ice can form on the MAP sensor during long drives, causing it to send faulty readings and trigger a Check Engine Light. The bulletin notes that the issue often resolves itself after the engine warms up and melts the ice. If you experience this problem in winter, the sensor itself may not be broken. Crucially, GM warns technicians NOT to clean the sensor with chemicals or compressed air, as this can damage it.
Choosing the Right Aftermarket MAP Sensor for Your CTS
When it comes to electronic sensors, quality matters. While saving money is tempting, a cheap, low-quality sensor can fail quickly or provide inaccurate readings, causing the same problems you're trying to fix. Here’s how the available brands generally stack up.
Tier 1: OEM & Premium Aftermarket
These brands are either the original equipment manufacturer or have a reputation for equivalent quality. They are the safest choice for reliability and performance.
- ACDelco: As the genuine GM parts brand, ACDelco is the original part that came on your Cadillac. It guarantees perfect fit and performance.
- Delphi: A major OEM supplier for many car brands, Delphi parts are known for their high quality and are often considered an OEM-equivalent option.
- Bosch: Another top-tier OEM supplier, Bosch sensors are engineered to high standards and are a trusted choice for European and domestic vehicles.
Tier 2: Reputable Aftermarket
These brands are well-established in the aftermarket and offer a good balance of price and quality. They are generally reliable for most repairs.
- Standard Motor Products (SMP): A long-standing brand that produces a wide range of quality replacement parts.
- NGK/NTK: While famous for spark plugs, their sensor line (NTK) is also well-regarded.
- Walker Products: A company specializing in fuel and engine management components with a solid reputation.
Tier 3: Economy Brands
This category includes brands like Facet, Global Parts, MTC, and True Tech. While they are the most affordable, their quality can be inconsistent. For a critical sensor like the MAP, it's often worth spending a little more to avoid potential issues. Some owners report problems with budget sensors causing poor performance right out of the box.
Pro Tip: Easy DIY Replacement

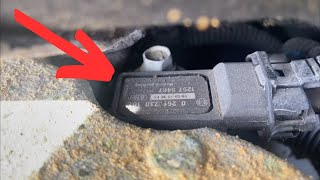

Replacing the MAP sensor on the 2003-2008 CTS (especially with the 3.6L V6) is a very simple job. The sensor is located on the top rear of the intake manifold, held in by a single bolt. You simply unplug the connector, remove the bolt, swap the sensor, and reconnect everything. This is a great repair for a beginner to tackle in under 30 minutes.
🎬 Watch this step-by-step walkthrough of the replacement process.Cost of Replacing Your MAP Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $44 - $94 |
| New OEM (ACDelco) | $75 - $120 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $125 - $220 |
Cost estimates are approximate and can vary by location and supplier.
Frequently Asked Questions
Can I just clean my old MAP sensor?
While cleaning can sometimes solve issues with other sensors like the Mass Air Flow (MAF) sensor, it is generally not recommended for the MAP sensor. In fact, a GM technical bulletin specifically warns against cleaning it with chemicals or compressed air, as this can cause damage. Given the low cost of replacement, swapping it with a new part is the more reliable solution.
Where is the MAP sensor located on my CTS?
For the common 3.6L V6 engine found in the 2003-2007 CTS, the MAP sensor is on the top of the engine, at the back of the intake manifold. It is easily accessible, held in by one bolt and an electrical connector.
Do I need to disconnect the battery to change the MAP sensor?
Yes, it is always a good safety practice to disconnect the negative battery terminal before working on any part of your vehicle's electrical system. This prevents accidental shorts and can also help the ECU reset and recognize the new sensor once it's installed.
What's the difference between a MAP and a MAF sensor?
Your CTS has both. The MAP (Manifold Absolute Pressure) sensor measures air pressure inside the intake manifold. The MAF (Mass Air Flow) sensor measures the volume and density of the air entering the engine, and it's located on the air intake tube after the air filter. Both work together to provide the ECU with the data it needs to manage the engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12575467

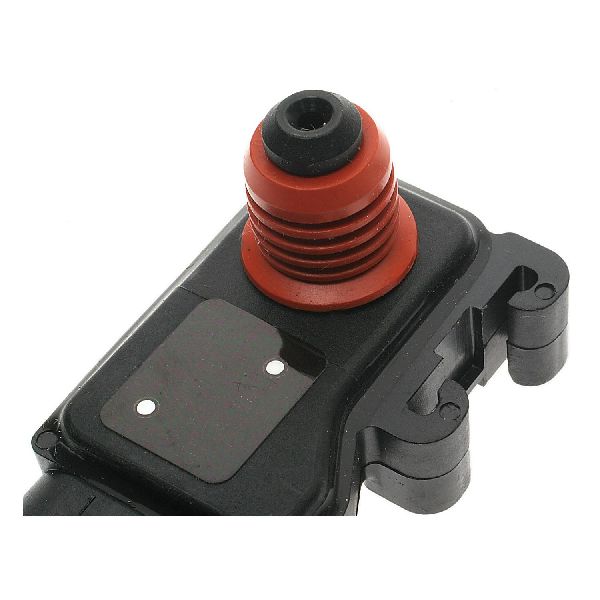

The MAP sensor for the 2003-2008 Cadillac CTS is typically a 3-pin sensor that mounts directly to the intake manifold with a single bolt. It provides a variable voltage signal to the ECU based on manifold pressure. Always verify the part number with your vehicle's VIN for an exact match.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
