Chevrolet Express 3500 Parking Brake Cable Guide (2003-2008)
Don't let a snapped or frozen parking brake cable leave your heavy-duty Express van unsecured.
- Your van uses a multi-cable system; inspect the front, intermediate, and both rear cables when one fails.
- Rust is the primary cause of failure. Choose replacement cables with protective coatings.
- For 2003-2005 models, be aware of NHTSA recall 05042B, which involved replacing the right-rear cable due to a dragging brake shoe issue.
- Installation can be difficult due to the need to create slack in the system; this often requires a specific procedure or a second person.
Common Symptoms of a Failing Parking Brake Cable
Because these cables live under your van, they are exposed to water, road salt, and debris. Rust is the number one cause of failure. Look for these signs to know if one or more of your cables needs replacing.
- Spongy or Loose Pedal: The parking brake pedal goes to the floor with little resistance but doesn't hold the van. This often means a cable has stretched or snapped.
- Van Rolls When Parked: You engage the brake, but the van still rolls on an incline. This is a critical safety failure.
- Brake Won't Disengage: The cable is seized with rust, keeping the parking brake partially applied. You might feel a drag when driving or smell a burning odor from the rear brakes.
- Grinding or Squealing Noises: You may hear unusual noises when applying or releasing the parking brake, indicating a frayed or misaligned cable.
Vehicle-Specific Issue: NHTSA Recall 05042B
For 2003-2005 Chevrolet Express 3500 models, GM issued a safety recall because the parking brake shoes could drag against the drum even when the brake was not applied. This could cause the brake linings to wear down prematurely, making the parking brake ineffective. The fix involved inspecting the brake shoes and replacing the rear right-hand parking brake cable. If you own a van from this year range, it is critical to ensure this issue has been addressed.
Choosing the Right Aftermarket Parking Brake Cable
For a part like a parking brake cable, aftermarket options provide excellent value. Quality is determined by the materials, corrosion resistance, and correct fitment. The brands available offer different levels of quality and price.
Brand Quality Tiers
- Premium Aftermarket (ACDelco): As GM's own parts division, ACDelco is the closest you can get to original equipment. Their "Professional" series parts are widely considered a top-tier choice for fit and durability. If you want to do the job once with the highest confidence, ACDelco is a solid choice.
- Standard Aftermarket (Dorman, Raybestos): Raybestos is a trusted name in brakes, and their cables are marketed as meeting OE specifications with features like nylon coating for corrosion resistance. Dorman has a mixed reputation; while some mechanics avoid their parts, they are a major supplier for the aftermarket. For a standard repair, both brands can be suitable, but always check that the end fittings match your old cable before installation. Some users of other vehicles have reported fitment issues with aftermarket brands, so verifying the part is always a good idea.
- Economy (Replacement): These are often unbranded or store-brand parts that offer the lowest price. They can be a viable option for a tight budget, but inspect them carefully for quality. The main trade-off is often in the quality of the cable sheathing and corrosion-resistant coatings.
| Part Category | Estimated Price Range |
|---|---|
| New Aftermarket Cable (Single) | $13.07 - $94.55 |
| New OEM Cable (Single) | $50 - $120 |
| Shop Labor (per cable) | $95 - $200 |
Pro Tip: Inspect All Cables
Your Express 3500 has multiple parking brake cables. If one has failed due to age and rust, the others are likely in similar condition. It is wise to inspect the front, intermediate, and both rear cables and replace them as a set if they show signs of wear. 🎬 Watch: Full walkthrough of a parking brake cable replacement. This will save you from having to do the job again in a few months.
Frequently Asked Questions (FAQ)
How many parking brake cables does my Express 3500 have?
The system is typically made of four main sections: one front cable, one intermediate cable, and two rear cables (one for each rear wheel). You can often buy these individually or as a complete kit.
Why does my new cable seem too short to install?
This is a very common issue. The front cable has an automatic tensioner at the pedal 🎬 See how to replace the parking brake lever assembly. that needs to be reset to create enough slack for installation. This can be a two-person job: one person pulls hard on the front cable from underneath the van while the other inserts a screwdriver or pin into an alignment hole on the pedal mechanism to hold it. Alternatively, you can use vise grips to clamp the front cable in its extended position.
🎬 Watch: How to release the automatic cable tensioner.Can I just replace the one cable that broke?
Yes, you can replace just the failed cable. However, since rust and age are the main culprits, the other original cables are likely nearing the end of their service life. For a long-term repair, it's best to replace any cable that looks frayed, rusted, or has damaged sheathing.
Is replacing the parking brake cable a DIY job?
Yes, it is a feasible DIY job for someone with moderate mechanical experience. It requires safely lifting and supporting the rear of the van, removing the wheels and brake components to access the cable ends. The most difficult parts are often dealing with rusted fasteners and getting enough slack to connect the new cables.
Helpful Videos
Technical Specifications

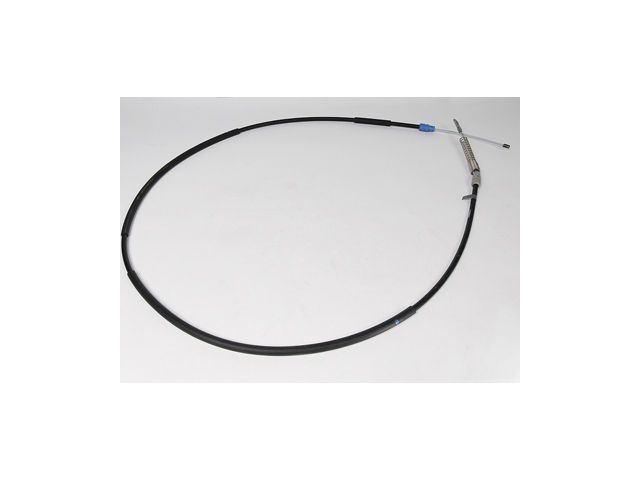

OEM Part Numbers: 20779564
System consists of front, intermediate, and two rear cables. Attaches to drum-in-hat style parking brake assembly. Common rear driver side cable length is ~88 inches.
