A Guide to Replacing Liftgate Lift Supports on Your 2003-2008 Honda Pilot
Tired of the rear hatch falling on your head? It's an easy and inexpensive fix.
- Failing liftgate supports are a common, simple-to-fix issue on 2003-2008 Pilots.
- Replacement is a very easy DIY job that requires only a screwdriver and less than 15 minutes.
- Always replace both supports at the same time to ensure proper function and longevity.
- Aftermarket brands like Stabilus, Strong Arm, and Tuff Support offer excellent value compared to OEM parts.
Is Your Pilot's Liftgate Failing?
If you own a first-generation Honda Pilot, you've probably experienced a liftgate that won't stay open. This is a very common issue as these vehicles have gotten older. The gas struts that hold the heavy door up simply wear out. The most obvious symptom is a liftgate that slowly drifts down or slams shut without warning. You might also notice it's much harder to open, or that it won't open fully, especially in cold weather.
Choosing the Right Aftermarket Lift Support
For a 2003-2008 Pilot, buying an aftermarket lift support is a smart choice. The original Honda parts are expensive, and aftermarket quality is very good for this specific part. They are sold individually but should always be replaced in pairs. Here’s a breakdown of common brands to help you decide.
Brand Tiers for Your Honda Pilot

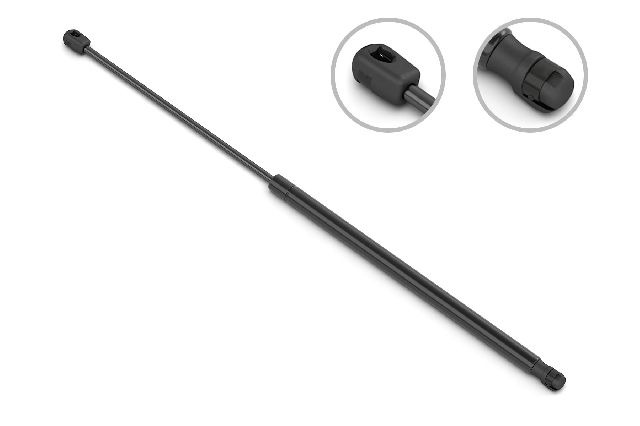

- Premium Aftermarket (OEM Quality): Stabilus
Stabilus is a well-regarded brand that is often the original equipment manufacturer (OEM) for many car companies, including Honda. Choosing Stabilus is the closest you can get to buying the original part without the high dealer price. They are known for durability and a fit and function that matches the original parts. - Standard Aftermarket (Best Value): Strong Arm, Tuff Support
Strong Arm and Tuff Support are popular, reliable aftermarket brands. They offer a great balance of price and performance. While some user reviews suggest they might not last as long as a premium brand like Stabilus, they provide strong lifting power and are a huge improvement over worn-out originals. For many Pilot owners, these brands are the go-to choice for an effective, budget-friendly repair. - Economy Aftermarket: FCS Struts
FCS is primarily known for suspension components, but they also offer lift supports. These are typically a budget-friendly option. While they will get the job done, general brand feedback suggests quality can be hit-or-miss. If your main goal is the lowest possible cost, FCS is an option, but other brands may offer better long-term reliability.
Pro Tip: When replacing your lift supports, you must have a way to securely hold the liftgate all the way up. You can have a friend hold it, or use a ladder, a sturdy piece of wood, or a prop rod. 🎬 See how to safely prop the hatch during your DIY repair. The old supports won't hold it, and the new ones can't be installed while it's closed.
Typical Costs for Liftgate Support Replacement
| Part Type | Cost (for a pair) |
|---|---|
| New Aftermarket | $25 - $50 |
| Shop Labor | $40 - $80 |
| Total DIY Cost | $25 - $50 |
| Total Shop Cost | $65 - $130 |
Warning: The liftgate on the Honda Pilot is heavy. A failing support can allow it to fall suddenly, which can cause serious injury. Address failing lift supports as soon as possible.
Frequently Asked Questions
Can I replace just one lift support?
You should always replace both lift supports at the same time. They wear out at a similar rate. If one has failed, the other is not far behind. Replacing only one will put extra strain on the new part and the old one, and the liftgate may still not function correctly.
How hard is it to replace them myself?
This is one of the easiest repairs you can do. The only tool you need is a small flat-blade screwdriver to release the clips on the old supports. 🎬 Watch a tutorial on how to easily release the mounting clips. The new ones often just snap into place. The entire job for both sides usually takes less than 15 minutes.
🎬 Watch this quick walkthrough to see the 15-minute replacement process.What happens if I buy the wrong ones?
It is important to buy supports specifically listed for the 2003-2008 Honda Pilot. Lift supports are engineered with a specific pressure rating for the weight of the door. Buying a support that is too weak will not hold the liftgate up. Buying one that is too strong can make the liftgate difficult to close and may even damage the mounting points over time.
Are there any recalls for the liftgate supports?
No, there are no recalls or major technical service bulletins (TSBs) for the liftgate lift supports on the 2003-2008 Honda Pilot. This type of failure is considered normal wear and tear, not a manufacturing defect.
Helpful Videos
Technical Specifications
OEM Part Numbers: 74820-S9V-A01 74820-S9V-A021 74870-S9V-A01 74870-S9V-A021
The liftgate uses two gas-pressurized lift supports, one on the driver's side and one on the passenger's side. They attach to ball-stud mounts on the vehicle body and the liftgate itself.
