A/C Receiver Drier Guide for the 2003-2008 INFINITI FX45
Is your FX45's air conditioning not blowing cold? The A/C receiver drier could be the problem.
- The A/C receiver drier must be replaced every time the A/C system is opened for service to protect new components and maintain warranties.
- This is not a DIY job for most owners because it requires specialized, expensive equipment to safely and legally handle the refrigerant.
- Symptoms of a bad drier include poor cooling, musty smells, or frost on A/C lines. Ignoring these can lead to compressor failure.
- Denso and Four Seasons are highly recommended aftermarket brands for this part, offering a good balance of quality and value.
Is Your FX45's A/C Struggling in the Heat?
If the air from your vents is warm, or not as cold as it used to be, a failing A/C receiver drier might be the cause. This part is a service item, meaning it has a limited lifespan. Over time, the material inside, called a desiccant, becomes saturated with moisture and can no longer protect the system. A clogged or failed drier restricts the flow of refrigerant, leading to poor cooling performance. Ignoring this can cause a chain reaction, leading to much more expensive repairs, including a seized A/C compressor.
Symptoms of a Failing A/C Receiver Drier
Watch for these common signs on your 2003-2008 FX45:
- Poor Cooling: This is the most frequent symptom. The air from your vents may be warm, only slightly cool, or cycle between cool and warm. This often happens when the drier is clogged.
- Musty or Moldy Smell: If the desiccant inside the drier is saturated, it can lead to a musty smell from the vents as moisture builds up in the system.
- Frost on A/C Components: Seeing frost or ice on the drier itself or the connected A/C lines can indicate a severe blockage, causing a rapid pressure drop and freezing moisture.
- Rattling Noises: If the desiccant bag inside the drier breaks apart, you might hear a rattling sound from the engine bay. This is a serious issue, as the debris can travel through and destroy the entire A/C system.
Critical Replacement Rule
The A/C receiver drier must be replaced any time the A/C system is opened for service. This includes replacing the compressor, condenser, or A/C hoses. The desiccant inside is so effective at absorbing moisture that it becomes saturated within minutes of being exposed to the atmosphere. Failing to replace the drier will void the warranty on your new parts and lead to their rapid failure.
Choosing the Right Aftermarket A/C Receiver Drier
For your FX45, several aftermarket brands are available. Since the receiver drier is a maintenance part that should be replaced whenever the system is serviced, choosing a quality part is important for long-term performance.
- Denso: Denso is a well-regarded OEM (Original Equipment Manufacturer) for many Japanese vehicles. Choosing a Denso drier is often the safest bet for fit and quality, as it's likely built to the same standards as the original part.
- Four Seasons: Four Seasons is one of the largest and most well-known aftermarket A/C parts suppliers. They offer a wide range of components and are generally considered a reliable choice for service parts like receiver driers.
- Global Parts (GPD): GPD is another major aftermarket supplier. They provide a cost-effective alternative and often come in kits, which can be convenient if you are replacing multiple components.
For a critical-yet-inexpensive part like the receiver drier, both Denso and Four Seasons are excellent choices with strong reputations. Global Parts offers a budget-friendly option. Given the importance of this part, sticking with a reputable brand is recommended.
Pro Tip: Check for Integrated Driers
On some vehicles, the receiver drier is integrated into the A/C condenser and sold as a single assembly. For the 2003-2008 FX45, the drier is typically a separate, replaceable component. However, always confirm whether you need the standalone drier or a condenser/drier assembly before ordering.
Estimated Replacement Costs for Your FX45
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Receiver Drier | $27.80 - $37.74 |
| Shop Labor (incl. Evacuate & Recharge) | $73 - $107 |
| Total Estimated Cost | $101 - $145 |
Note: Costs are estimates and do not include taxes, fees, or the price of refrigerant. Labor costs can vary significantly by location.
Frequently Asked Questions (FAQ)
Can I replace the A/C receiver drier myself?
While physically swapping the part is not overly complex, handling the refrigerant is the main challenge. The A/C system must be professionally evacuated before you begin work and then vacuumed and recharged afterward. This requires specialized equipment and certification. For this reason, replacing the drier is not considered a typical DIY job.
Do I have to replace the drier when I replace my A/C compressor?
Yes, absolutely. It is standard procedure and almost always required to validate the warranty on the new compressor. A failed compressor contaminates the system with metal debris, and the old drier will be full of this contamination. Not replacing it will cause the new compressor to fail quickly.
Are there any recalls for the FX45 A/C system?
No. Searches of the NHTSA database show no specific recalls or technical service bulletins (TSBs) for the A/C receiver drier or general A/C system on the 2003-2008 INFINITI FX45. Recalls for this vehicle range are primarily related to passenger airbag inflators.
What is a desiccant?
A desiccant is a material, typically silica gel, that is extremely good at absorbing moisture. It is contained in a small bag inside the receiver drier to pull any water out of the refrigerant.

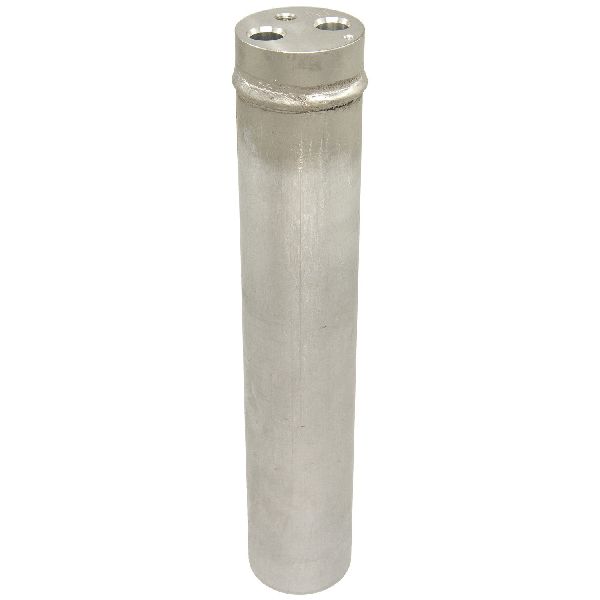

Technical Specifications
OEM Part Numbers: 92131-2Y920
Aluminum construction, desiccant bag included, pad mount style.
