Infiniti G35 (2003-2008) Engine Coolant Bypass and Heater Hose Guide
Dealing with a coolant leak near the back of your G35's engine? This guide is for you.
- The plastic heater hose connectors near the firewall are a common failure point and should be inspected and likely replaced with the hose.
- Upgrading to metal or aluminum connectors is a popular and permanent fix for the brittle plastic problem.
- Quality aftermarket brands like Gates and Continental are reliable and cost-effective choices for this part.
- Properly bleeding all air from the cooling system after the repair is critical to prevent overheating.
A Common Point of Failure: The Plastic Connectors
On the 2003-2008 Infiniti G35, the most common issue isn't usually the rubber hose itself, but the plastic connectors they attach to. After a decade or more of heat cycles, these original plastic connectors become extremely brittle. They are known to crack or even shatter with little warning, causing a sudden and major coolant leak. This can leave you stranded and risk severe engine damage from overheating. If you are replacing a leaking bypass or heater hose, it is critical to inspect these plastic connectors and replace them at the same time. Many owners choose to upgrade to metal or aluminum connectors for a permanent solution.
🎬 Watch: How to replace the brittle plastic heater hose connector.Symptoms of a Failing Coolant Bypass Hose
The signs of a bad bypass hose or a failed connector are hard to miss. You should be on the lookout for:
- Coolant Puddles: Puddles of green or blue liquid on the ground, typically under the middle or back of the engine bay.
- Low Coolant Level: Your coolant reservoir tank is consistently low, requiring frequent top-offs.
- Sweet Smell: A distinct sweet smell from the engine bay after driving is a classic sign of burning coolant.
- Engine Overheating: The temperature gauge on your dashboard climbs into the red, especially when stopped in traffic.

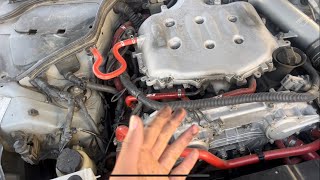

- Steam from Engine: In a severe failure, you may see steam pouring out from under the hood. 🎬 See this guide on finding and fixing common G35 leaks.
Choosing the Right Aftermarket Part
When it comes to replacing these hoses, you have a few choices. The original equipment (OEM) part from Infiniti is always an option, but for a simple rubber hose, a quality aftermarket part offers the same performance for less money.
Brand Quality: Aftermarket vs. OEM
| Brand Tier | Our Brands | Quality & Performance |
|---|---|---|
| Premium Aftermarket | Continental, Gates | Both Continental and Gates are top-tier aftermarket manufacturers known for making high-quality rubber products that meet or exceed OEM specifications. For a part like this, you can install either brand with confidence. They provide a reliable, cost-effective alternative to the dealer part. |
| Performance Upgrade | (Z1 Motorsports, Mishimoto, etc.) | Some owners opt for silicone hoses. These offer superior heat resistance and longevity but come at a higher cost. This is a great choice for performance-modified cars or for owners who want the absolute best, but it is not necessary for a daily-driven vehicle. |
| OEM (Original Equipment) | Infiniti | The OEM hose is a guaranteed fit, but it's made of the same EPDM rubber as quality aftermarket parts and is more expensive. Remember, the weak point in the original system is often the plastic connectors, not the hose itself. |
Pro Tip: Replace in Sets
If one hose or plastic connector has failed due to age, others are likely not far behind. It is highly recommended to replace the heater hose connectors, bypass hoses, and any other accessible cooling hoses at the same time to prevent future breakdowns. Always use new hose clamps.
Frequently Asked Questions (FAQ)
What exactly does this hose do?
It circulates engine coolant outside of the main radiator path. This helps supply the heater core with hot coolant for your cabin's heat and allows coolant to flow through the engine during warm-up before the thermostat opens. This ensures the engine temperature rises evenly.
Why do the plastic connectors fail so often?
The original connectors are made of plastic. Over many years and thousands of heat cycles, the plastic becomes brittle and weak. Eventually, it can no longer withstand the pressure of the cooling system and cracks, leading to a leak. This is a very common issue on G35s as they age.
Can I replace this hose myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The main challenge is access, as the hoses are located in a tight space at the back of the engine. The job requires draining the coolant, removing the old parts, and then properly refilling and bleeding the air out of the system. Failure to bleed the system correctly will cause overheating.

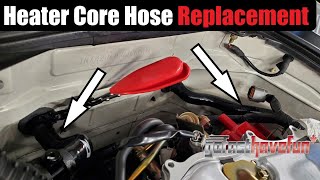

🎬 Watch: A step-by-step walkthrough for replacing the heater core hose.Is an aftermarket hose from Continental or Gates good enough?
Absolutely. For a standard rubber component like a coolant hose, brands like Gates and Continental are trusted industry leaders. Their products are engineered to meet OEM standards for fit and durability, making them a reliable and smart financial choice compared to more expensive dealer parts.

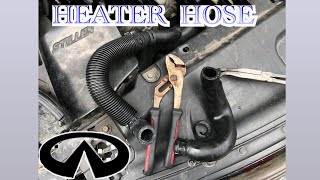

Helpful Videos
Technical Specifications
OEM Part Numbers: 14055-JK20A
This guide covers the various small coolant bypass and heater hoses located on the VQ35DE and VQ35HR engines. The most commonly replaced hose connects to a plastic connector near the firewall.
