Isuzu Ascender Catalytic Converter: A Guide for 2003-2008 Owners
Everything you need to know before replacing the catalytic converter on your 2003-2008 Isuzu Ascender.
- Always diagnose the root cause of P0420/P0430 codes before replacing the converter; engine issues can destroy a new part.
- The Isuzu Ascender shares its platform with the Chevy Trailblazer/GMC Envoy; many parts are interchangeable, but always verify fitment.
- Confirm your Ascender's wheelbase (standard or EXT) before ordering, as the exhaust parts are different.
- For longevity, consider a direct-fit converter from a reputable brand like MagnaFlow or Walker over cheaper, universal options.
Is Your Ascender's Catalytic Converter Failing?
The catalytic converter on the 2003-2008 Isuzu Ascender, which shares its platform with the Chevy Trailblazer and GMC Envoy, is designed to last a long time, but it can fail. When it does, you'll likely get a Check Engine Light with codes P0420 or P0430. These codes mean the converter's efficiency is below the required threshold, and it's no longer cleaning the exhaust properly. It's important to remember that while these codes often point to a bad converter, the root cause could be another engine issue, like a misfire or a faulty oxygen sensor, that has damaged the converter over time. Ignoring these issues can lead to more expensive repairs down the road.
First, Rule Out Other Problems
Before you spend money on a new converter, make sure your engine is in good health. A recurring P0420 or P0430 code, even after replacing the converter, often means there's an underlying issue. Problems like leaking fuel injectors, bad spark plugs, or a faulty oxygen sensor can destroy a new catalytic converter quickly. Always diagnose and fix these related problems first.
Choosing the Right Aftermarket Catalytic Converter
When replacing the converter on your Ascender, you have a choice between OEM and aftermarket parts. An OEM converter from the dealer is a guaranteed fit but can be very expensive. Aftermarket converters offer a more budget-friendly solution and come in different quality tiers.
Brand Tiers for Your Isuzu Ascender

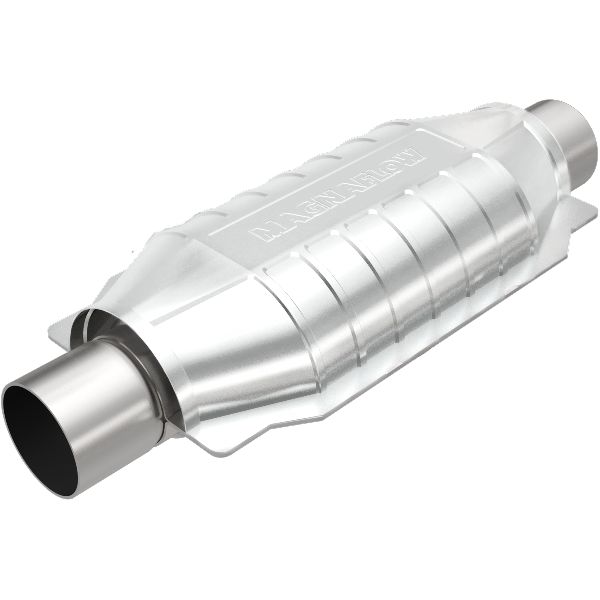

- Premium Direct-Fit (MagnaFlow, Walker): Brands like MagnaFlow and Walker are well-regarded in the aftermarket. They often use stainless steel construction and are designed as "direct-fit" parts, meaning they should bolt into place with minimal or no welding required, similar to the original part. MagnaFlow is sometimes associated with a slight performance and sound improvement, while Walker is known for creating reliable OE-style replacements. These are a good choice if you want a quality part that is likely to last and keep the check engine light off.
- Standard Replacement (AP Exhaust, Eastern Catalytic, BRExhaust): These brands provide a solid middle-ground option. They are often more affordable than the premium brands and are a common choice for repairs. However, some users report minor fitment issues, like slightly off angles or needing to adjust hangers, but they generally get the job done.
- Economy (Evan Fischer, other online brands): These are the most budget-friendly options. While tempting on price, be aware that quality can be inconsistent. They may not last as long or may have more fitment challenges. Some owners report check engine lights returning sooner with economy-grade converters.
Federal vs. CARB Compliance
Check your local emissions laws. Most states follow federal EPA standards. However, if you live in California, Colorado, New York, or Maine, you will likely need a more expensive CARB-compliant converter. Installing a non-compliant part in these states will cause you to fail an emissions test. Always verify which type you need before purchasing.
Common Ordering Mistakes for the Ascender
The Isuzu Ascender was built on the GMT360 platform, which had two different wheelbase lengths. The standard Ascender has a 113-inch wheelbase, while the 7-passenger Ascender EXT had a longer wheelbase. The exhaust parts are not interchangeable between these two models. Always confirm your vehicle's wheelbase before ordering to ensure you get the correct part.
Expected Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Federal EPA) | $150 - $600 |
| New Aftermarket (CARB Compliant) | $700 - $1200 |
| New OEM | $1600+ |
| Shop Labor | $159 - $233 |
Frequently Asked Questions
Will replacing the catalytic converter fix my P0420 code?
Most of the time, yes, if the converter is truly the failed part. However, the P0420 code means "catalyst efficiency below threshold." This can be caused by a bad oxygen sensor, exhaust leaks, or engine performance issues that can, in turn, ruin the converter. It is critical to diagnose the entire system to ensure you're fixing the root cause.
Can I install a catalytic converter myself?
For a direct-fit converter, it is possible for a skilled DIYer. The main challenge will be rusted and seized bolts on the exhaust flanges. You will need good tools, penetrating oil, and possibly a torch to heat the bolts. If you are using a universal or weld-in converter, this job should be left to a professional exhaust shop.
What's the difference between a direct-fit and a universal converter?
A direct-fit converter is designed to bolt directly onto your Ascender with no modifications. A universal converter is a generic part that must be cut and welded into your existing exhaust system by a muffler shop. Direct-fit is easier for DIY installation, while universal is often cheaper for the part itself but requires professional labor.
Were there any recalls for the Ascender's catalytic converter?
No, there have been no specific recalls issued by the NHTSA for the catalytic converter on the 2003-2008 Isuzu Ascender. Any failure of this part is typically due to age, mileage, or other engine-related problems.
Technical Specifications
The Isuzu Ascender was available with a 4.2L inline-6 (Atlas LL8) or a 5.3L V8 engine. The catalytic converter configuration differs between the two. The 4.2L has a single converter assembly, while the V8 has two. The vehicle was also offered in a standard and a long-wheelbase (EXT) version, which use different exhaust components.
