Isuzu Ascender Starter Motor Guide for 2003-2008 Models
If your Ascender just clicks or won't crank, this guide will help you diagnose the problem and choose the right replacement starter.
- A single click with no crank is a classic symptom of a failed starter on the Ascender.
- Rule out battery and ignition switch issues before condemning the starter.
- The starter replacement is a moderately difficult DIY job due to a hard-to-reach top bolt.
- Ensure you buy the correct starter for your specific engine (4.2L I6 or 5.3L V8) as they are not interchangeable.
Is Your Ascender's Starter Failing?

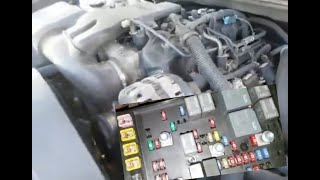

A failing starter rarely dies without warning. Because the Isuzu Ascender shares its platform with GM trucks like the Chevrolet Trailblazer, its starting system issues are well-documented. Often, the first sign is an intermittent no-start condition where you have to turn the key multiple times before the engine cranks. If you hear a single, sharp click when turning the key 🎬 Watch a video on diagnosing this common clicking symptom. but the engine doesn't turn over, the starter solenoid is likely engaging but the motor itself is failing to spin. Sometimes, a failing starter can be temporarily revived by tapping on it with a mallet while someone else turns the key, but this is a clear sign that immediate replacement is needed.
Don't Mistake Other Issues for a Bad Starter
Before replacing your starter, make sure your battery is fully charged and the terminals are clean and tight. A weak battery, corroded cables, or a faulty ignition switch can mimic the symptoms of a bad starter. It's common for owners to replace the starter only to find the issue was a bad ground or ignition switch.
Choosing the Right Aftermarket Starter
Since the Ascender is a rebadged GM vehicle, many parts are available. When choosing a new aftermarket starter, you'll find several quality tiers.
- Premium Brands (e.g., ACDelco): ACDelco is GM's own parts division, and their parts are often considered original equipment (OE) quality. Choosing an ACDelco Professional or Gold series starter is the closest you can get to the original part without going to a dealer. They are built to meet or exceed original specifications. 🎬 See an unboxing and review of an ACDelco starter.
- Quality Aftermarket (e.g., MPA - Motor Parts of America): MPA is a major manufacturer of new and remanufactured starters. They offer reliable, OE-equivalent parts that are rigorously tested and often come with strong warranties, providing a good balance of quality and value.
- Performance Brands (e.g., Powermaster): If you have a modified Ascender or simply want a more robust starter, Powermaster is a popular choice. They specialize in high-torque starters that can overcome issues like heat soak, which is when a hot engine makes it harder for the starter to crank.
New vs. Remanufactured: While remanufactured starters can be cheaper, new aftermarket units from reputable brands are often preferred. A new starter has all-new components, eliminating the possibility of a failure from a reused part that wasn't replaced during the remanufacturing process. Given the labor involved, spending a little more on a new unit can provide peace of mind.
Known Issues, Recalls, and Service Bulletins
Searches for the 2003-2008 Isuzu Ascender and its GM counterparts did not reveal any specific recalls or Technical Service Bulletins (TSBs) directly related to the starter motor itself. However, owners have reported intermittent no-start conditions that were sometimes traced back to the ignition switch rather than the starter. There was a recall for some Isuzu and Chevrolet trucks regarding a starter motor cable, but this recall did not apply to the Ascender model years.
Cost of Replacing an Isuzu Ascender Starter
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $55 - $310 |
| New OEM Starter | $244 - $604 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement (Aftermarket Part) | $140 - $435 |
| Total Professional Replacement (OEM Part) | $330 - $729 |
Frequently Asked Questions
How difficult is it to replace the starter on a 2003-2008 Ascender?
The replacement is moderately difficult. The starter is located on the passenger side of the engine. Access is tight, and one of the mounting bolts can be hard to reach from underneath the vehicle. Some mechanics access the top bolt from above, which may require removing a hose. It typically takes 🎬 Follow this step-by-step guide to replacing the 4.2L starter. a professional 1-2 hours.
Is the starter the same for the 4.2L and 5.3L engines?
No, the starter motors for the 4.2L I6 and the 5.3L V8 engines are different parts. They have different part numbers and are not interchangeable. It is critical to order the correct starter for your specific engine.
What tools are needed to replace the starter?
You will need a basic set of sockets and wrenches, including 8mm, 10mm, 13mm, and 15mm sizes. A long socket extension and a swivel socket are highly recommended for accessing the top mounting bolt. You will also need a jack and jack stands to safely lift the vehicle.
My Ascender makes a grinding noise when I try to start it. Is that the starter?
A grinding noise can be caused by a few things. It could be the starter gear (Bendix) failing to retract properly after the engine starts, or it could be damaged teeth on the starter gear or the engine's flywheel. In either case, the starter should be inspected and likely replaced immediately to prevent further damage.
Helpful Videos

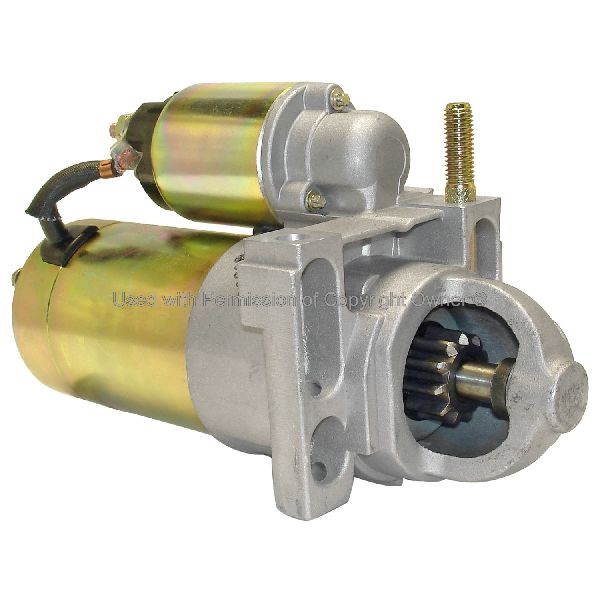

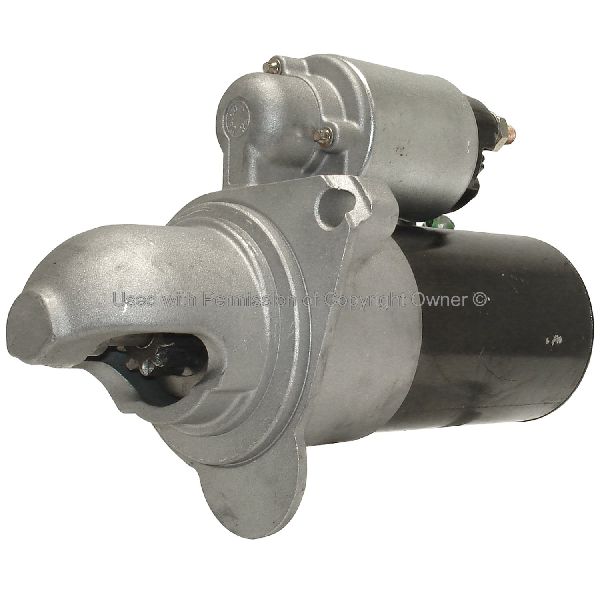

Technical Specifications
OEM Part Numbers: 8890178460 10465582
The Isuzu Ascender uses a 12-volt, permanent magnet gear reduction (PMGR) starter. The specific part varies between the 4.2L I6 and 5.3L V8 engines. Always verify fitment using your vehicle's VIN or engine type before purchasing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
