2003-2008 Pontiac Vibe HVAC Blend Door Actuator Guide
That annoying clicking sound from your dashboard is a common problem, and this guide will show you how to fix it for good.
- The most common failure is the recirculation actuator behind the glove box, causing a clicking noise.
- This is a well-known issue on the 2003-2008 Vibe and Toyota Matrix due to weak plastic gears in the original part.
- Replacement is a simple DIY job that can be done in under an hour by accessing the part through the glove box opening.
- Aftermarket parts are a cost-effective and reliable alternative to the more expensive OEM part.
Is Your Vibe's Dashboard Making a Clicking Noise?
If you hear a steady clicking or tapping sound coming from behind the passenger side of the dashboard, you likely have a bad HVAC blend door actuator. This is a very common issue on the 2003-2008 Pontiac Vibe and its twin, the Toyota Matrix. The sound is most noticeable when you start the car or press the air recirculation button. The plastic gears inside the original actuator wear out and strip, but the motor keeps trying to turn the door, which causes the noise.
Symptoms of a Failing Actuator

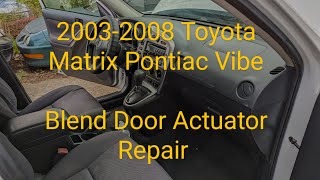

- Clicking or Tapping Noise: A repetitive clicking from behind the glove box is the number one symptom. 🎬 Watch: How to identify and fix that dashboard clicking noise.
- Air Stuck on Recirculate or Fresh Air: The door may get stuck in one position, preventing you from choosing your air source.
- Incorrect Air Temperature: While less common for the recirculation actuator, a failure of the separate temperature blend actuator can cause the system to be stuck on hot or cold.
Choosing the Right Aftermarket Part
The original factory actuator has a known design weakness with its plastic gears. Many owners have found that aftermarket replacement parts are a reliable and cost-effective solution. Some aftermarket brands use a more robust internal gear design that can be more durable than the original part. Since the labor to replace the part is the same, choosing a quality aftermarket part can provide a long-lasting repair without the high cost of an OEM part from the dealer.
Cost of Replacing Your Actuator
| Part Type | Part Cost | Labor Cost | Total Cost |
|---|---|---|---|
| New Aftermarket | $40.99 | $61 - $90 | $102 - $131 |
| New OEM | $65 - $135 | $61 - $90 | $126 - $225 |
Replacing the Actuator: A DIY Guide

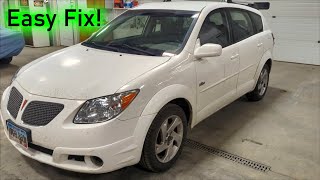

This is a job most owners can do at home with basic tools. While some guides show removing the entire dashboard, it is not necessary. The easier method is to 🎬 Watch this step-by-step guide to replacing the actuator yourself. go through the glove box.
- Empty and Remove the Glove Box: Open the glove box, empty it, and remove the stop screw on the side. Squeeze the sides of the glove box to release the stops and pull it completely out.
- Locate the Actuator: Look up and to the left inside the cavity. You will see the actuator with a blue electrical connector. It is in a tight space.
- Remove the Screws: The actuator is held in by two small screws. These are usually 5.5mm or 7/32" hex heads. You will likely need a small socket or a mini-ratchet. Access is tight, and you may have to do this by feel. Many people find they can loosen the screws by hand using just the socket.
- Install the New Actuator: Disconnect the electrical plug, swap the new actuator in, and reinstall the screws. Plug the new part in and test it by pressing the recirculation button before you put the glove box back in.
Pro Tip: The top screw is hard to see and reach. Consider tethering your tool with a string or zip tie so you don't drop it inside the dashboard.
🎬 See these expert tips for reaching those difficult actuator screws.Frequently Asked Questions
Are there any recalls for this part on the Pontiac Vibe?
No. While there are several safety recalls for airbags on the 2003-2008 Vibe, there are no official recalls or Technical Service Bulletins (TSBs) from GM or Toyota for the HVAC blend door actuator.
Is it safe to drive with a broken blend door actuator?
Yes, it is generally safe to drive. The main issue is the annoying clicking noise and the inability to control the air source. However, if a different actuator fails and you cannot defrost your windshield, that becomes a serious safety hazard in cold or wet weather.
Can I just unplug the actuator to stop the clicking?
Yes. As a temporary fix, you can access the actuator through the glove box and simply unplug the electrical connector. This will stop the noise, but the door will be stuck in its last position (either fresh air or recirculate).
My air is blowing from the wrong vents. Is that the same part?
No. The part that causes the clicking (recirculation actuator) is electrical. The part that directs air to the floor, dash, or defrost vents on a Vibe is controlled by a mechanical cable connected to the HVAC control knob. If air is coming from the wrong vents, the cable may have slipped off its lever.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88970277 87106-02020
This is the air inlet or recirculation door actuator, typically located behind the glove compartment. It is a 5-pin electrical motor that controls the fresh air vs. recirculate door.
