A/C Expansion Valve Guide for 2003-2009 Dodge Sprinter 2500
Is your Sprinter's A/C blowing warm? This guide covers the common causes and how to choose the right replacement A/C expansion valve.
- First, rule out a common electrical fault in the dash A/C control unit before suspecting the expansion valve.
- Always replace the receiver/drier and all O-rings when replacing the expansion valve to prevent future system damage.
- If the old A/C compressor failed and contaminated the system with metal debris, the entire system must be flushed.
- Replacement requires specialized A/C equipment to recover, evacuate, and recharge the system with the correct amount of R-134a refrigerant.
Is Your A/C Problem the Expansion Valve?
Before you replace the A/C expansion valve on your 2003-2009 T1N Sprinter, it's important to check for a more common issue. Many A/C problems on these vans are caused by failing solder joints on a relay inside the dashboard's A/C control unit. This electrical fault prevents the A/C compressor from turning on at all, or only allows it to work sometimes. If your compressor clutch isn't engaging, investigate the control unit first 🎬 Watch: How to fix common A/C control unit electrical faults. before assuming a mechanical part like the expansion valve has failed.
Symptoms of a Failing Expansion Valve
If the A/C control unit is working correctly and the compressor is running, a bad expansion valve can cause several symptoms:
- Warm or Poorly Cooled Air: The most obvious sign is that the air coming from your vents isn't cold, even with the A/C on full blast.
- Frost on Vents or A/C Lines: A valve stuck open can allow too much refrigerant into the evaporator, causing it to get too cold and form ice. You might see frost on the valve itself or coming from the vents.
- Hissing Sound from the Dash: A steady hissing noise from the passenger side of the dashboard area can be a sign of the expansion valve operating incorrectly.
- Intermittent Cooling: The A/C might blow cold for a few moments and then switch to warm air as the valve struggles to regulate refrigerant flow. 🎬 See this guide for a complete T1N Sprinter A/C diagnosis.
A/C System Contamination
If your A/C compressor has failed internally, it can send metal shavings throughout the system. These shavings will clog the new expansion valve and receiver/drier, causing them to fail quickly. If metal is found in the system, it is critical to flush the entire system and replace the compressor, receiver/drier, and expansion valve at the same time.
Choosing the Right Aftermarket Expansion Valve
For your 2003-2009 Dodge Sprinter, you have several aftermarket brand choices. Since this van is a re-badged Mercedes-Benz, parts quality can vary. Here’s an honest look at the available brands.
Brand Tiers for Your Sprinter:

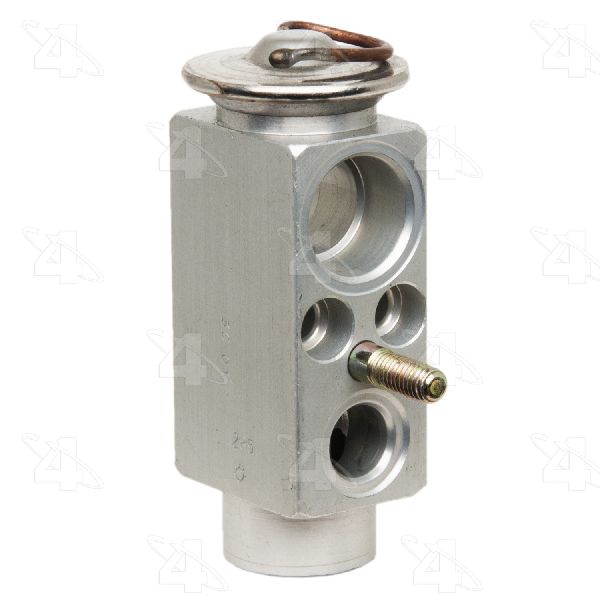

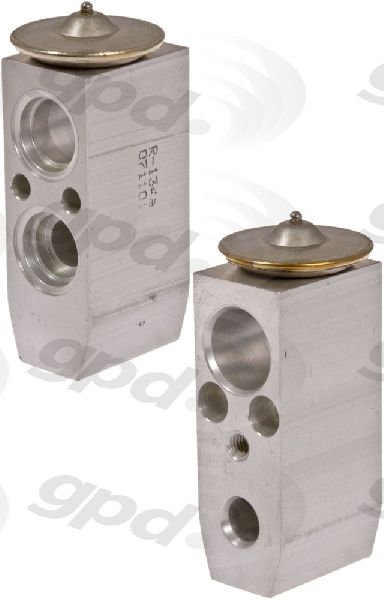

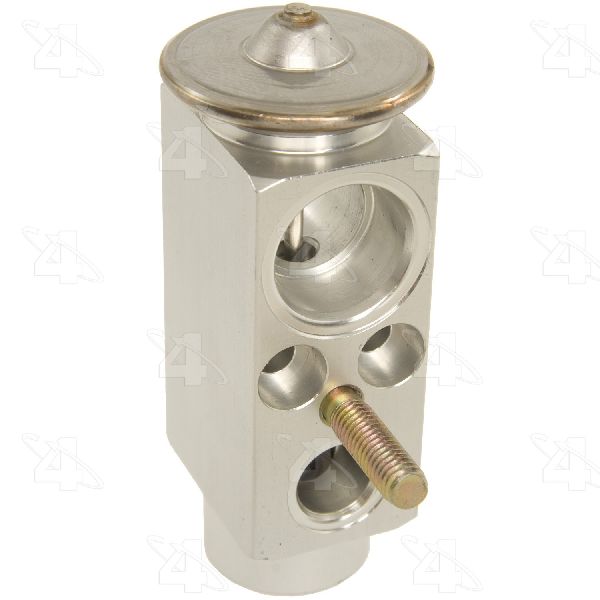

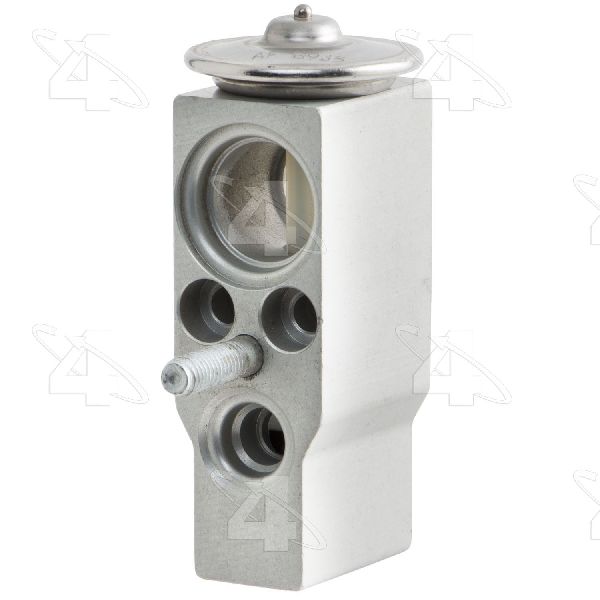

- Good - Four Seasons & Global Parts Distributors (GPD): Both Four Seasons and GPD are well-known aftermarket A/C parts suppliers. Four Seasons has mixed reviews, with some users having long-term success and others seeing them as a budget option. GPD markets its parts as meeting or exceeding OE specifications and subjects them to leak and durability testing. For a daily driver, these brands offer a good balance of price and acceptable quality.
- Economy - URO Parts: URO Parts are typically the lowest-priced option. While the company claims its parts meet OE specifications, user reviews across many car communities are consistently poor, citing issues with fit, quality, and premature failure. It is best to consider this a budget, economy-tier part where longevity may be a concern.
Always Replace the Receiver/Drier
Anytime the A/C system is opened for a repair like replacing the expansion valve, you must also replace the receiver/drier. The drier contains a desiccant that absorbs moisture from the refrigerant. Once exposed to air, it becomes saturated and can no longer protect your A/C system from corrosion and freeze-ups. Failure to replace it will lead to premature failure of other components.
Cost to Replace a Dodge Sprinter A/C Expansion Valve
The total cost involves the part, shop labor, and the cost to evacuate and recharge the refrigerant.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Expansion Valve | $100 - $210 |
| New Aftermarket Expansion Valve | $33 - $60 |
| Shop Labor & System Recharge | $230 - $450 |
| Total Estimated Cost (Aftermarket) | $263 - $510 |
Cost estimates are based on national averages and may vary by location and repair shop. This does not include the cost of a new receiver/drier or a full system flush if needed.
Frequently Asked Questions (FAQ)
Can I replace the A/C expansion valve myself?
This is an advanced DIY job. While the valve itself is accessible in the engine bay near the firewall, the repair requires specialized tools, including an A/C manifold gauge set and a vacuum pump to properly evacuate and recharge the system. Handling refrigerant is also regulated, so the job is often best left to a professional.
What is the difference between an expansion valve and an orifice tube?
They both do the same basic job of metering refrigerant, but in different ways. The 2003-2009 Sprinter uses a block-style thermostatic expansion valve (TXV). An orifice tube is a simpler, fixed-size tube, while a TXV can actively adjust refrigerant flow for better efficiency.
Do I need to add oil when replacing the expansion valve?
A small amount of PAG oil is lost when parts are replaced. While replacing just the expansion valve doesn't require adding a lot of oil, it's critical that the system has the correct total oil charge. When a professional recharges the system, they typically add the correct amount of oil with the refrigerant. The A/C system in the Sprinter is very specific about the amount of refrigerant and oil it needs to cool properly.
Where is the expansion valve located on a 2006 Dodge Sprinter?
The A/C expansion valve is located in the engine compartment, on the passenger side, mounted to the firewall where the A/C lines go into the cabin to connect to the evaporator. Access can be a bit tight due to the windshield wiper assembly.
🎬 Watch: Step-by-step expansion valve replacement and system vacuum test.Helpful Videos
Technical Specifications
OEM Part Numbers: 2028300184 9018300084 5143304AA
Refrigerant Type: R-134a. Refrigerant Capacity (Front A/C only): 1.9 lbs (860g). Refrigerant Capacity (Front & Rear A/C): 2.87 lbs (1300g).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
