Guide to the 2003-2009 Dodge Sprinter 3500 Automatic Transmission Oil Cooler
Keep your Sprinter's hard-working transmission from overheating by understanding its oil cooler.
- Heat is the primary cause of transmission failure; a working cooler is essential for the longevity of your Sprinter's transmission.
- Symptoms include overheating warnings, fluid leaks under the front of the van, a burning smell, and poor shifting performance.
- The cooler is a separate unit, making replacement a feasible DIY job. Carefully inspect the lines and fittings for corrosion at the same time.
- Quality aftermarket brands like Hayden and Four Seasons offer a reliable and cost-effective alternative to more expensive OEM parts.
Symptoms of a Failing Transmission Cooler
When the transmission cooler isn't working right, your Sprinter will give you warning signs. Ignoring them can lead to serious and expensive transmission damage.
- Transmission Overheating: This is the most direct symptom. You might get a warning light on your dashboard. An overheating transmission can cause the van to go into "limp mode" to protect itself.

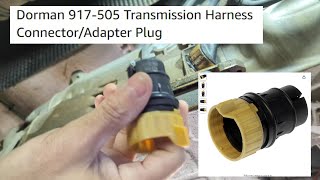

- Fluid Leaks: You may see puddles of reddish or brown fluid under the front of your van. Leaks often happen where the cooler lines connect to the cooler itself. On these Sprinters, the aluminum connectors can corrode 🎬 Watch: How to fix a leaking transmission harness socket. and cause leaks.
- Burning Smell: If the transmission fluid gets too hot, it can burn. This creates a distinct, sharp burning odor.
- Poor Shifting: When the fluid is too hot, it doesn't work as well. This can cause slipping gears, delayed or rough shifts, and a general feeling of sluggish performance.
- Unusual Noises: Whining, clunking, or humming sounds can be a sign that parts inside the transmission aren't getting enough lubrication due to low or burnt fluid.
Engine Oil Cooler vs. Transmission Oil Cooler
The V6 engine in 2007-2009 Sprinters is known for oil cooler leaks, but this is the engine oil cooler located in the valley of the engine, not the transmission cooler. This is a very different and much more expensive repair. Make sure you correctly identify which part is leaking before ordering.
Choosing a New Aftermarket Cooler
For the 2003-2009 Sprinter 3500, the transmission cooler is a separate, stand-alone unit, not integrated into the main radiator. This makes replacement easier. When choosing a new part, you have options between OEM and aftermarket.
OEM vs. Aftermarket Quality
An OEM (Original Equipment Manufacturer) part is what the van was built with. Aftermarket parts are made by other companies. For a simple part like a transmission cooler, a quality aftermarket unit can be a good, cost-effective choice. Brands like Hayden and Four Seasons are common aftermarket suppliers.
- Hayden: This is a well-known brand in the cooling industry, and some OEM manufacturers use their products. They are generally considered a reliable choice for aftermarket coolers, often featuring a plate-and-fin design with internal turbulators for efficient cooling.
- Four Seasons: This brand is also a major supplier of automotive heating and cooling parts. Their parts are designed to meet or exceed OEM standards and offer a dependable, budget-friendly alternative.

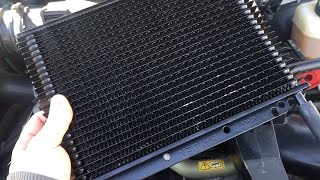

Some owners on forums discuss bypassing the factory cooler setup entirely and installing a larger, universal auxiliary cooler, especially if they live in hot climates or tow heavy loads. However, 🎬 Watch: How to install an auxiliary transmission oil cooler upgrade. for most users, a direct-fit replacement is the simplest and most reliable option.
Cost of Replacing the Transmission Cooler
The cost to replace the cooler depends on the price of the part and the shop's labor rate. Since the cooler itself is relatively inexpensive, labor makes up a significant portion of the total cost.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Cooler | $51 - $96 |
| New OEM Cooler | $150 - $250+ |
| Shop Labor | $170 - $320 |
| Total Estimated Cost | $221 - $416+ |
Note: Prices are estimates and can vary based on your location and the specific repair shop. This estimate does not include the cost of new transmission fluid, which will be required.
Frequently Asked Questions
Are there any recalls for the transmission cooler on my Sprinter?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific recalls for the automatic transmission oil cooler on 2003-2009 Dodge Sprinter 3500 models. Recalls for this period primarily concern airbags.
What about Technical Service Bulletins (TSBs)?
No specific TSBs directly addressing widespread failure of the transmission cooler itself on the 2003-2009 Sprinter were found. TSBs for other vehicles sometimes mention leaks from cooler lines or fittings, which can be a common failure point.
Can I replace the transmission cooler myself?
Yes, this is a feasible DIY job for someone with moderate mechanical skills. The cooler is typically located at the front of the vehicle, near the radiator. The process involves draining some fluid, disconnecting the cooler lines, unbolting the old cooler, and installing the new one. 🎬 See this DIY walkthrough for installing a new transmission cooler. You must be careful not to damage the fittings on the lines or radiator. Afterward, you will need to top off the transmission fluid to the correct level, which is critical on these vans.
Should I replace the cooler lines at the same time?
It's a good idea to inspect the lines carefully for corrosion, cracks, or damage, especially at the fittings. If they look worn, replacing them at the same time as the cooler is a smart move to prevent future leaks. The cost for line replacement can range from $219 to $320.
What kind of transmission fluid should I use to top it off?
Always use a fluid that meets the specific requirements for your Sprinter's transmission (often a Mercedes-Benz specification like MB 236.14). Using the wrong fluid can cause shifting problems and damage the transmission. Check your owner's manual or a reliable parts source for the correct fluid type.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68068061AA 68064698AB 68064700AB
The transmission cooler for the 2003-2009 Dodge Sprinter 3500 is a stand-alone, air-to-fluid, plate-and-fin style cooler. It is mounted at the front of the vehicle, separate from the engine's main radiator. It connects to the transmission via two fluid lines.
