A Guide to the Brake Light Switch for the 2003-2009 Dodge Sprinter 3500
Understand why this small switch can cause major electrical issues in your Sprinter and how to choose the right replacement.
- A faulty brake light switch can cause brake light failure, dashboard warning lights (ABS/ESP), and prevent the van from shifting out of Park.
- Before ordering, confirm if your Sprinter needs the 4-pin (with ESP) or 6-pin (without ESP) version of the switch.
- Replacement is a simple DIY task located above the brake pedal, but some aftermarket parts may need minor adjustment to fit.
- Driving with a bad brake light switch is unsafe; if your brake lights are not working, the vehicle should not be driven.
Is Your Sprinter Experiencing Electrical Gremlins? Check the Brake Light Switch.
A failing brake light switch is a common issue on the T1N generation of Sprinter vans (which includes the 2003-2009 Dodge models). Because the switch communicates with so many different systems, a malfunction can cause a variety of seemingly unrelated problems. Understanding the symptoms can save you from a frustrating and incorrect diagnosis.
🎬 Watch this video on brake light switch symptoms to ignore.Symptoms of a Failing Brake Light Switch
When this switch starts to fail, you might notice one or more of the following issues. Sometimes, the symptoms can be intermittent, making them tricky to diagnose.
- Brake Lights Don't Work or Stay On: The most obvious sign is that your brake lights either fail to illuminate when you press the pedal or they remain on even when your foot is off the brake.
- ABS/ESP/BAS Warning Lights: A faulty switch can trigger the ABS, ESP, and/or BAS warning lights on your dashboard. This is because the stability and anti-lock brake systems rely on an accurate signal from the switch to function correctly.
- Stuck in Park: Your Sprinter has a safety feature that prevents you from shifting out of Park unless the brake pedal is depressed. If the switch fails, the vehicle doesn't receive the signal that the brake is applied, and the shifter will be locked.
- Cruise Control Issues: The cruise control may not engage, or it might shut off unexpectedly. The system needs to know the brakes are not being touched to operate, and a bad switch can send a false signal.
Common Ordering Mistake

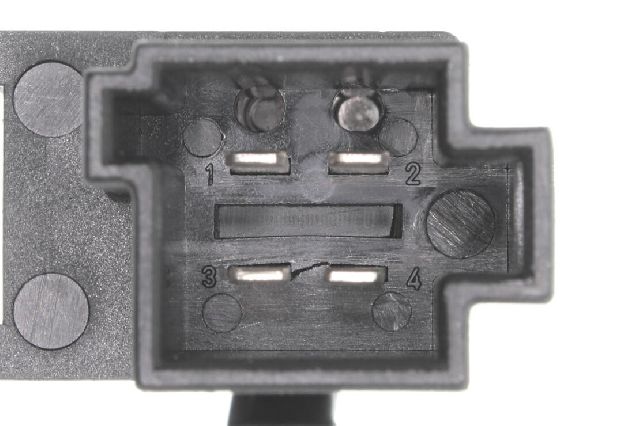

The 2003-2009 Sprinter used two different types of brake light switches: a 4-pin version for models with Electronic Stability Program (ESP) and a 6-pin version for models without it. Most North American Sprinters from 2004 onwards came standard with ESP. Always verify which system your van has before ordering a new switch to ensure you get the correct part.
Choosing the Right Aftermarket Brake Light Switch
Since the Dodge Sprinter is a re-badged Mercedes-Benz, parts quality can vary between OEM and aftermarket suppliers. For a simple but critical part like the brake light switch, choosing a reputable brand is important.

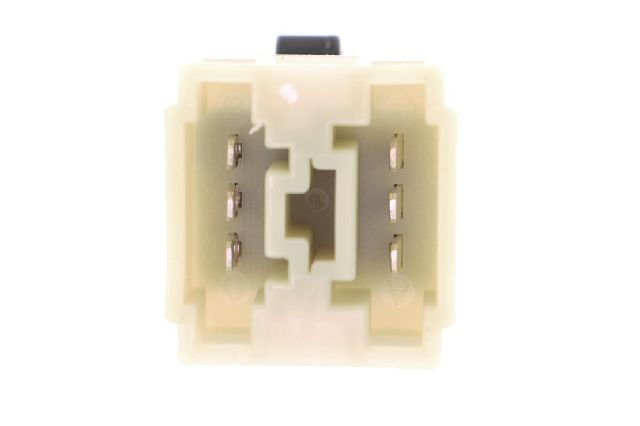

- Vemo: Often considered a high-quality aftermarket brand for German vehicles, Vemo is a reliable choice. Their parts are engineered to meet or exceed original specifications.
- Standard Ignition (SMP): A well-respected name in the aftermarket industry, Standard Motor Products provides dependable electronic components that are a solid alternative to OEM.

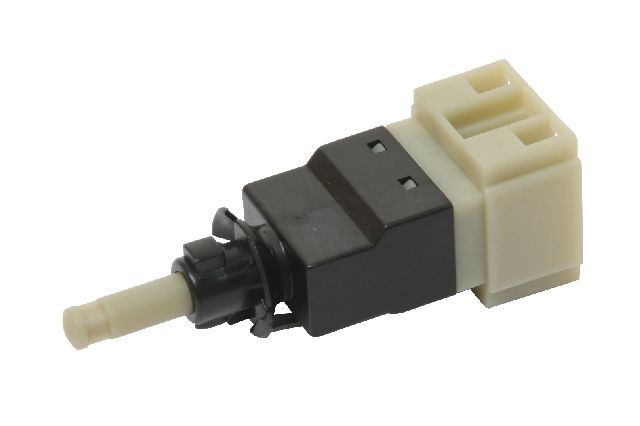

- URO Parts: This brand offers a budget-friendly option. However, owner feedback suggests that the quality of URO's electronic parts can be inconsistent. While it may function correctly, it might not have the same longevity as higher-tier brands.
- Rostra Powertrain: While a known aftermarket manufacturer, Rostra is less commonly discussed in Sprinter forums for this specific part compared to German-centric brands like Vemo.
Pro Tip: Try a Reset First
In some cases, the switch's internal plunger can go out of adjustment. Before replacing the part, you can try resetting it. With the engine running, press the brake pedal down firmly with your hand. Reach up under the dash, grab the plastic plunger extending from the switch, and pull it outwards until it clicks. Release the pedal. This can sometimes resynchronize the switch and resolve the issue, at least temporarily.
🎬 See how to identify and fix a bad brake switch.Cost of a New Brake Light Switch (2003-2009 Dodge Sprinter 3500)
| Part Type | Price Range |
|---|---|
| New Aftermarket | $22.02 - $40.02 |
| Shop Labor | $50 - $100 |
Note: Prices are estimates and can vary based on location, supplier, and brand.
Frequently Asked Questions
Can I replace the brake light switch myself?
Yes, this is a very feasible DIY job for most owners. The switch is located above the brake pedal under the dashboard. It typically requires no special tools, just the ability to work in a tight space. The process involves disconnecting the electrical connector, rotating the old switch to unclip it, and installing the new one in the reverse order. Some owners note that aftermarket switches may require minor filing of the plastic tabs for a perfect fit.
🎬 Follow this step-by-step T1N Sprinter brake light switch replacement guide.Is there a recall for the brake light switch on my Sprinter?
There is no specific recall for the brake light switch itself. However, there was a recall (NHTSA 16V-833) for 2003-2006 models because the brake warning light on the instrument cluster might not illuminate during the startup bulb check. This was a software issue and is unrelated to the mechanical function of the switch, but it's important to be aware of. A separate recall for newer 2019-2020 Sprinters involved a brake pedal issue that could cause the brake lights to stay on, but this does not apply to the 2003-2009 generation.
Why are my ABS and ESP lights on after replacing the switch?
If the warning lights appeared because of the faulty switch, they should go away after the new one is installed and the vehicle is driven a short distance. However, if you installed the wrong switch (e.g., a 6-pin instead of a 4-pin), or if the new switch is also faulty, the lights may remain. It's also possible that there is a separate underlying issue with the ABS/ESP system. If the problem persists, it's best to have the fault codes read with a scanner.
What happens if I ignore a bad brake light switch?
Ignoring a faulty brake light switch is a serious safety risk. If your brake lights don't work, drivers behind you will not know you are slowing down, which can easily lead to a rear-end collision. Additionally, you could find yourself stranded if you are unable to shift your van out of Park.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68056230AA 0015458709 0015456709 68013462AA 68013462AB 68022569AA
Located above the brake pedal. Available in 4-pin (with ESP) and 6-pin (without ESP) configurations.
