A Guide to Fuel Injectors for the 2003-2009 Dodge Sprinter 3500
Understanding common issues and choosing the right replacement injector for your T1N Sprinter's diesel engine.
- The most common issue is not the injector itself, but the copper seal underneath it failing, leading to "Black Death".
- Always use a new hold-down bolt and copper seal when replacing an injector; they are one-time-use parts.
- Bosch is the Original Equipment Manufacturer (OEM); using new Bosch injectors is the most reliable repair option.
- Be cautious with non-Bosch remanufactured injectors, as quality can be inconsistent and lead to further issues.
A Critical Job for Your Sprinter's Engine
The fuel injectors on your 2.7L diesel engine have a tough job. They operate under very high pressure and have to deliver fuel perfectly every time the engine fires. When they work correctly, your Sprinter runs smoothly and efficiently. But when they start to fail, you'll notice problems that can range from annoying to engine-damaging.
The "Black Death": A Common Sprinter Issue
Known Issue: Injector Seal Failure ("Black Death")
One of the most well-known problems on this generation of Sprinters (often called T1N) is not the injector failing, but the seal underneath it. This copper washer is supposed to seal the combustion chamber. When it fails, hot exhaust gases and soot leak past the injector and bake into a hard, black tar-like substance on top of the engine. This is famously known as "Black Death."

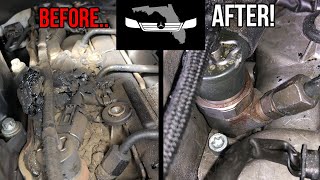

🎬 Watch this owner's journey fixing Black Death on a T1N.If you smell diesel fuel or exhaust fumes around the engine, it's a major warning sign. Left untreated, this buildup can make it extremely difficult to remove the injectors, turning a straightforward repair into a major, expensive job. It's crucial to inspect for this by removing the plastic engine cover and looking for any black goo around the base of the injectors.
🎬 See a professional repair of the Black Death on this engine.Choosing the Right Aftermarket Fuel Injector
When it's time to replace one or more injectors, you have choices. Since injectors are so critical to engine health, quality matters. Cutting corners here can lead to poor performance or even catastrophic engine damage.
Brand Tiers for Your Sprinter
- Premium Aftermarket (OEM): Bosch
Bosch is the Original Equipment Manufacturer (OEM) for the fuel injectors in your Sprinter. This means a new Bosch injector is the exact same part you would get from a Dodge or Mercedes-Benz dealer. For reliability and performance that matches the factory standard, choosing a new Bosch injector is the safest bet. Many experienced Sprinter owners and mechanics will only use genuine Bosch parts to avoid problems. - Remanufactured Aftermarket: Bosch, Dorman, GBR

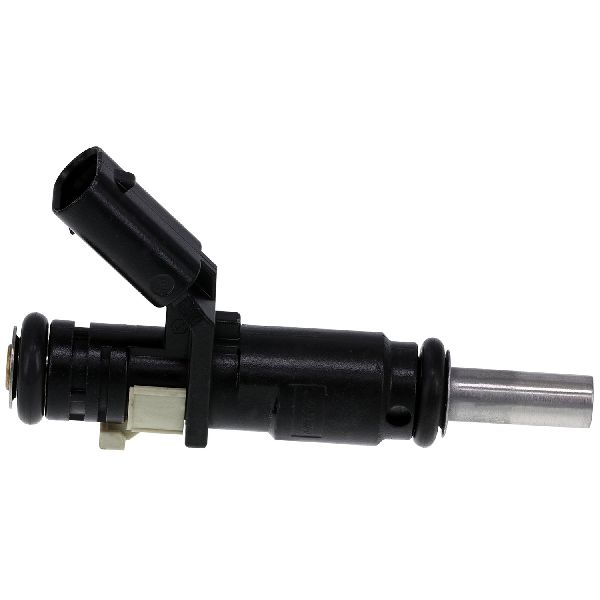

Remanufactured injectors are used cores that have been rebuilt. A Bosch-certified remanufactured injector is a good option, as it's rebuilt to factory specs. Other brands like Dorman and GBR Fuel Injection also offer remanufactured options which can be more affordable. However, the quality of remanufactured parts can be inconsistent. Some owners have had issues with remanufactured injectors failing prematurely. - Standard Aftermarket: Standard Ignition (SMP)
Standard Motor Products is a large aftermarket manufacturer. While they produce a wide range of quality parts, for a specialized component like a common rail diesel injector, most Sprinter specialists recommend sticking with the OEM supplier, Bosch. Aftermarket injectors that don't match the OE spray pattern or flow rate can cause poor running, bad fuel economy, and even engine damage.
Pro Tip: Replace the Bolt and Seal
Whenever an injector is removed or replaced, you must use a new copper sealing washer 🎬 Watch this trick for easily removing a stuck copper seal. and a new hold-down bolt. The bolt is a "stretch-to-yield" bolt, meaning it's designed for one-time use. Reusing the old bolt will lead to improper sealing, causing a repeat failure and the dreaded "Black Death".
Frequently Asked Questions (FAQ)
Do I need to replace all five injectors at once?
Not necessarily, but it's often recommended if your van has high mileage (over 150,000 miles). Injectors wear out at a similar rate. If one has failed, others may not be far behind. Replacing them all at once can save you from future breakdowns and repeated labor costs.
What is the "Black Death" and how do I check for it?
"Black Death" is a buildup of carbon and unburnt fuel around the fuel injectors, caused by a failed copper seal. To check for it, remove the plastic engine cover and inspect the area around the base of each injector for a black, tarry substance. You might also smell raw diesel fuel or exhaust fumes in the engine bay.
Is a remanufactured injector a good choice?
It can be, but it carries some risk. A remanufactured injector from Bosch is your best bet for a non-new part, as they are the original manufacturer. Cheaper remanufactured injectors from other brands have a higher reported failure rate, sometimes even being bad right out of the box. Given the high labor cost and potential for engine damage, many owners opt for new Bosch injectors for peace of mind.
Are there any recalls for the fuel injectors on my Sprinter?
Searches of the NHTSA database did not show any recalls specifically for fuel injector failure on the 2003-2009 Dodge Sprinter 3500. There was a recall (NHTSA 11V410000) for intake manifold corrosion that could lead to a fuel leak from the fuel return line, but this was not a defect of the injector itself.
Helpful Videos
Technical Specifications

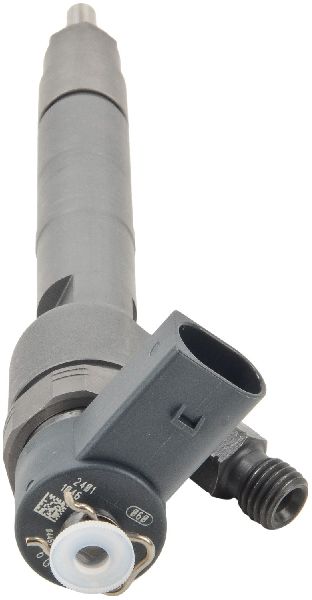

OEM Part Numbers: 6470700187 5137297AA 0445110162 0986435129
For the 2.7L OM647 (2004-2006) and OM612 (2003) 5-cylinder common rail diesel engine. Always verify the correct part number for your specific model year, as there are differences.
