Manifold Absolute Pressure (MAP) Sensor Guide for 2003-2009 Dodge Sprinter 3500
Keep your Sprinter's turbo-diesel running strong by understanding, diagnosing, and replacing a faulty MAP sensor.
- A failing MAP sensor is a common cause of power loss, black smoke, and a check engine light on Sprinter 3500s.
- Bosch is the OEM supplier; choosing a Bosch aftermarket part is the safest bet for quality and reliability.
- The part is different for 2003-2006 (2.7L) and 2007-2009 (3.0L) engines, so verify fitment.
- Replacement is simple for DIYers and typically takes under 30 minutes with basic tools.
Is Your Sprinter Losing Power or Smoking? It Could Be the MAP Sensor.
If you own a 2003-2009 Dodge Sprinter 3500, you know it's a workhorse. But when it starts acting up, it can be frustrating. A common culprit for issues like power loss, black smoke, and poor fuel economy is a failing Manifold Absolute Pressure (MAP) sensor. This sensor is critical for your turbo-diesel engine's performance. This article will help you understand the symptoms, choose the right replacement part, and decide if this is a job you can tackle yourself.
Generation and Engine Differences
The 2003-2009 year range covers two Sprinter generations with different engines. The 2003-2006 (T1N) models use a 2.7L 5-cylinder diesel (OM647), while the 2007-2009 (NCV3) models use a 3.0L V6 diesel (OM642). While the function of the MAP sensor is the same, the part itself and its location can differ. Always confirm the part fits your specific year and engine before purchasing.
Symptoms of a Failing MAP Sensor
A bad MAP sensor can cause a range of problems, from annoying to serious. Because it provides incorrect information to the engine's computer, the air-fuel mixture can be thrown off. Look out for these common signs:
🎬 Watch this video to see common symptoms of a bad sensor.- Check Engine Light: A faulty MAP sensor will often trigger the check engine light and store trouble codes like P0105, P0106, P0107, or P0108.
- Loss of Power / Limp Mode: The van may feel sluggish, struggle to accelerate, or go into "Limp Home Mode," where engine RPM is severely limited. This is a common complaint from Sprinter owners with a bad MAP sensor.
- Black Smoke from Exhaust: If the sensor causes the engine to run too rich (too much fuel), you'll see black smoke coming from the tailpipe.
- Poor Fuel Economy: An incorrect air-fuel mixture means the engine isn't running efficiently, leading to more trips to the gas station.
- Rough Idle or Stalling: The engine may run poorly at a stop or even stall out completely.
Choosing the Right Aftermarket MAP Sensor
When it's time to replace your MAP sensor, you'll find several aftermarket options. For a critical sensor like this on a Mercedes-derived engine, quality matters.

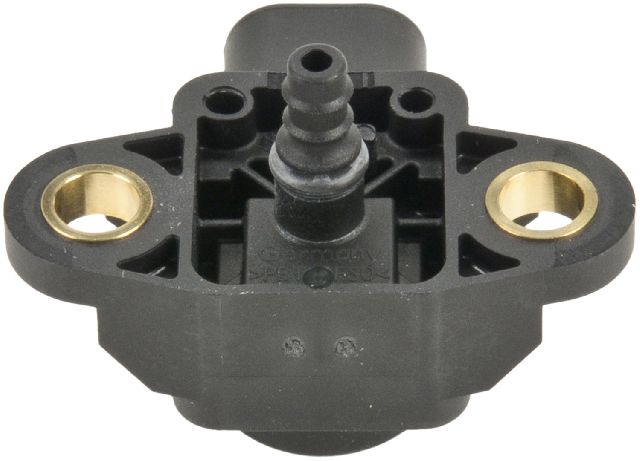

OEM vs. Aftermarket: The original equipment (OEM) sensor on your Sprinter was likely made by Bosch. Bosch is a top-tier brand known for high-quality electronics that meet manufacturer specifications. When buying aftermarket, choosing an OEM-supplier brand like Bosch is often the safest bet for fit, function, and longevity.
Brand Tiers:
- Top Tier (OEM Supplier): Bosch is the recommended choice. It's considered the original part without the dealership markup.

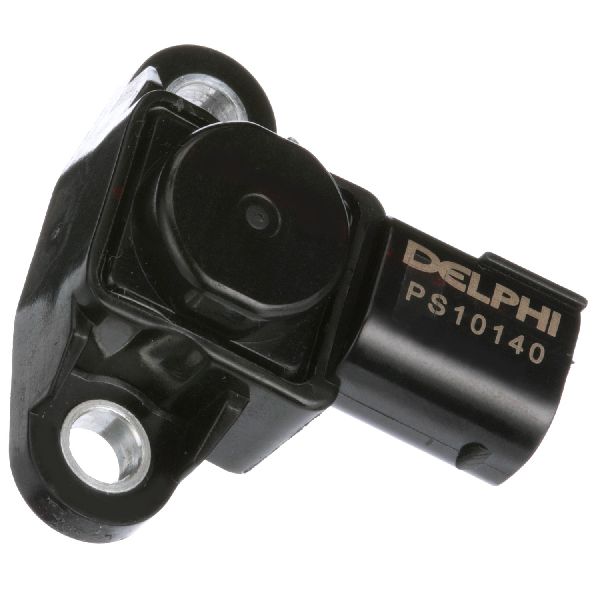

- Reputable Aftermarket: Brands like Delphi, Standard Motor Products (SMP), and NGK are well-known in the industry and generally produce reliable parts. They are a good alternative if a Bosch part isn't available.
- Value Brands: Other brands like Crown, Facet, or Global Parts may offer a lower price point, but their long-term reliability can be a gamble. For a sensor that directly impacts engine performance, it's often worth spending a little more for a proven brand.
Can I Just Clean My MAP Sensor?
Sometimes, a MAP sensor can be cleaned. On diesel engines, the sensor can get clogged with soot and oil. Carefully removing it and cleaning it with a dedicated MAF or electronics cleaner might restore its function. However, if the sensor has failed electronically, cleaning won't help, and replacement is the only option.
🎬 Learn more about symptoms and easy fixes for MAP sensors.| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $103 - $143 |
| New Aftermarket | $39 - $85 |
| Shop Labor | $37 - $54 |
Frequently Asked Questions
Where is the MAP sensor located on my Sprinter 3500?
The location varies by engine. On the 2004-2006 T1N (2.7L), the MAP sensor (also called the boost pressure sensor) is often found on a bracket on the large diameter charge air hose. On the 2007-2009 NCV3 (3.0L), it is typically located in or near the throttle body. Always visually confirm the location on your specific vehicle.
Is this a difficult part to replace myself?
No, for most people this is a very DIY-friendly job. It usually involves unplugging an electrical connector and removing one or two small bolts. The main challenge can be accessing the sensor, which might be in a tight spot. The job typically takes less than 30 minutes.
🎬 See a demonstration of how to replace a diesel MAP sensor.Are there any recalls for the MAP sensor?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the MAP sensor on the 2003-2009 Dodge Sprinter 3500.
What's the difference between a MAP and a MAF sensor?
Your Sprinter has both. The MAP (Manifold Absolute Pressure) sensor measures air pressure inside the intake manifold. The MAF (Mass Air Flow) sensor measures the volume and density of the air entering the engine before the turbo. Both work together to provide the ECU with the data it needs to manage the engine.
Helpful Videos
Technical Specifications
OEM Part Numbers: 0051535028 0061539928 68066040AA 05101120AB 5117545AB
Measures absolute pressure in the intake manifold and sends a voltage signal to the ECU. Typically a 3-pin or 4-pin sensor.
