A Comprehensive Guide to the 2003-2009 Hummer H2 A/C Accumulator
Keep your Hummer H2's air conditioning running cold by understanding this critical, often-overlooked part.
- The A/C accumulator is a mandatory replacement part any time the A/C system is opened, especially during a compressor change.
- Quality aftermarket brands like Four Seasons and Global Parts are a cost-effective and reliable choice for the Hummer H2.
- Symptoms like poor cooling can also be caused by other common H2 issues, so proper diagnosis is important.
- There are no recalls for the A/C accumulator, but there is one for the brake hydro-boost accumulator on 2004-05 models; do not confuse them.
Is Your H2's A/C Feeling Weak? It Might Be The Accumulator.
If the air conditioning in your 2003-2009 Hummer H2 isn't blowing as cold as it used to, the A/C accumulator could be the culprit. While not as well-known as the compressor or condenser, a failing accumulator can bring your whole A/C system to a halt. This guide will walk you through the symptoms, replacement options, and critical information specific to your H2.
Symptoms of a Failing Hummer H2 A/C Accumulator
A bad accumulator will show signs that your A/C system is in trouble. Look out for these common symptoms:
- Poor Cooling Performance: This is the most common sign. A clogged or saturated accumulator can't circulate refrigerant properly, leading to weak or warm air from the vents.
- Visible Refrigerant Leaks: The accumulator can rust or its seals can fail, leading to leaks. You might see a greasy, oily residue on the accumulator body or on the ground beneath it.
- Rattling Noises: If you hear a rattling sound from the engine bay when the A/C is on, it could be the result of a damaged accumulator. The internal filter material, called desiccant, can break apart and rattle inside the canister.
- Moldy or Musty Smell: While a moldy smell is often caused by moisture buildup on the evaporator core, a failing accumulator that allows excess moisture into the system can contribute to the problem.
Recall Notice: A/C Accumulator vs. Brake Accumulator
There are NO safety recalls for the A/C accumulator on the 2003-2009 Hummer H2. However, there was a recall (NHTSA ID: 05V043000) for the hydraulic brake booster pressure accumulator on some 2004-2005 models. These are completely different parts. Do not confuse a brake system issue with an A/C system issue.

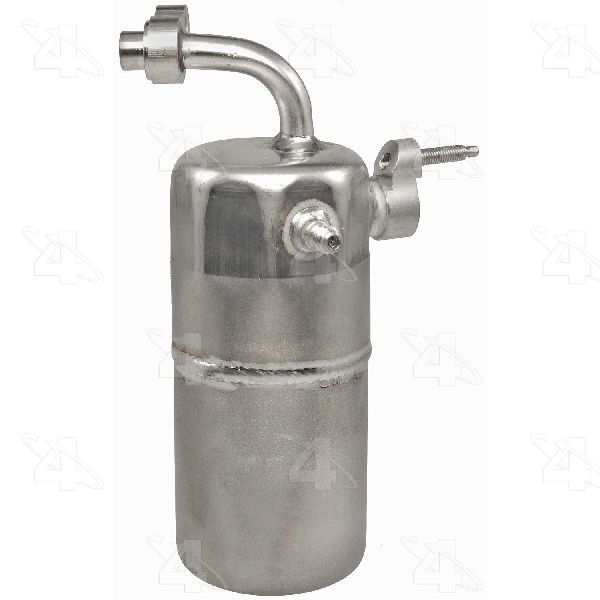

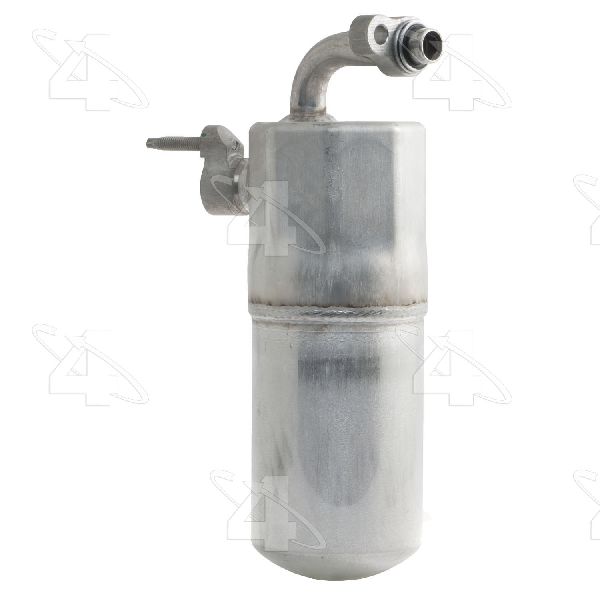

Choosing the Right Aftermarket Accumulator
For a vehicle like the Hummer H2, the original GM accumulator has likely been superseded by newer part numbers. While OEM is always an option, high-quality aftermarket accumulators from brands like Four Seasons and Global Parts (GPD) offer a reliable and cost-effective solution.
Here's the honest truth: the accumulator is a service part that must be replaced any time the A/C system is opened for a major repair, especially a compressor replacement. Because it's a mandatory replacement item, spending a premium on an OEM part doesn't provide a significant benefit for most owners. Aftermarket brands build their parts to meet or exceed original equipment (OE) fit and function, containing high-quality desiccant to protect your A/C system. For the H2, a new aftermarket accumulator is the smart, practical choice.
Pro Tip: Always Replace in a Kit
If you are replacing your A/C compressor, it is critical to also replace the accumulator and the orifice tube at the same time. Failure to do so will introduce moisture and debris into your new compressor, causing it to fail quickly and voiding its warranty.
🎬 Watch this full A/C compressor and system service walkthrough.Hummer H2 A/C Accumulator Cost
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $40 - $55 |
| New OEM (ACDelco) | $80 - $120 |
| Shop Labor for Installation | $150 - $250 |
Note: Labor costs include evacuating and recharging the A/C system, which is required for this job. Prices can vary by location.
Frequently Asked Questions
Do I have to replace the accumulator when I replace my H2's A/C compressor?
Yes, absolutely. It is a mandatory step. The accumulator filters out moisture and debris. A failed compressor often sends metal shavings through the system. Not replacing the accumulator will cause this debris to destroy your new compressor almost immediately.
Can I replace the A/C accumulator myself?
While the part itself is easy to access and unbolt, the job requires specialized equipment to safely evacuate the old refrigerant from the system and then vacuum test and recharge it with the correct amount of new refrigerant. For this reason, it is considered a job for a professional mechanic or a highly experienced DIYer with the proper A/C service tools.
🎬 See how to replace the accumulator and orifice tube.My A/C blows air, but it's weak. Is it the accumulator?
It could be, but weak airflow is also a very common H2 problem caused by leaves and debris clogging the evaporator core, since most H2s did not have a factory cabin air filter. If the air coming out is cold but the volume is low, check for a blocked evaporator or a failing blower motor first.
🎬 Watch this guide to cleaning a clogged evaporator core.What is the difference between an accumulator and a receiver/drier?
They perform the same function of removing moisture but are used in different types of A/C systems. Your Hummer H2 uses an orifice tube system, which is paired with an accumulator. Systems with an expansion valve use a receiver/drier.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19130063 25821905 89018423 89018449
The A/C system in the 2003-2009 Hummer H2 uses an orifice tube and accumulator design. The accumulator acts as a filter/drier and is located on the low-pressure side of the system between the evaporator and the compressor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
