A Guide to Replacing the Alternator on Your 2003-2009 Hummer H2
Don't let a weak alternator leave you stranded; understand your replacement options for the power-hungry H2.
- The stock H2 alternator is 145 amps; upgrade to a high-output model if you run accessories like winches or extra lights.
- Symptoms of failure include dim/flickering lights, a battery warning on the dash, strange noises, and a battery that won't stay charged.
- ACDelco and Bosch are top-tier choices for reliability, while Powermaster is a go-to for high-performance needs.
- While the replacement is a feasible DIY project, be aware that H2s can have other electrical issues (like a bad BCM) that mimic alternator failure.
Is Your Hummer H2 Alternator Failing?
A failing alternator in a Hummer H2 can cause a wide range of frustrating electrical problems before it leaves you completely stranded. Because the H2 relies on a steady flow of electrical power, even a slight drop in alternator output can trigger issues. Recognizing the early warning signs can save you from a tow truck call.
Common symptoms include a red battery warning light on your dashboard, which is the most direct indicator of a charging system problem. You might also notice your headlights and interior lights dimming or flickering, especially when the engine is at idle. Other signs can be more subtle, such as power windows that operate slowly or a radio that cuts out. In some cases, you may hear a grinding or whining noise from the engine bay, which could be the sound of the alternator's internal bearings failing. 🎬 Watch: How to test your alternator and understand how it works. As the problem worsens, the battery will drain, leading to a no-start condition that even a jump-start can't permanently fix.
Parasitic Drains vs. a Bad Alternator
The Hummer H2 is known for potential electrical issues, including parasitic drains caused by faulty modules like the Body Control Module (BCM) that can mimic alternator failure by draining the battery when the truck is off. If you've replaced the battery and alternator but still have problems, the issue could be a parasitic draw elsewhere in the vehicle. It's also been noted by owners that new or remanufactured alternators can sometimes be faulty right out of the box.
Choosing the Right Aftermarket Alternator

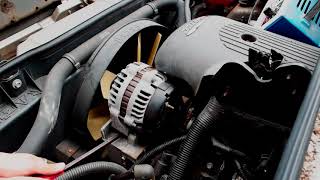

When replacing your H2's alternator, you have a choice between standard output and high-output units. The original factory alternator is typically a 145-amp model, which is sufficient for a stock vehicle. However, if you run extra accessories like a winch, powerful off-road lights, or a large audio system, you should strongly consider a high-output alternator.
Brand Quality Tiers
Not all aftermarket brands are created equal. Here’s a breakdown of the brands available to help you choose.
- Tier 1 - Premium & OEM-Equivalent: ACDelco and Bosch. As GM's official parts brand, ACDelco offers both new and remanufactured alternators that provide an OEM-level fit and performance. Bosch is a highly respected German manufacturer known for its rigorous testing and quality, though they primarily offer remanufactured units for the H2.
- Tier 2 - High-Performance & Quality New: Powermaster and WAI Global. Powermaster specializes in high-output alternators for vehicles with heavy electrical loads, offering options with significantly more amperage than stock. WAI Global is a good choice for those who prefer a 100% new part over a remanufactured one, with products engineered to meet or exceed OEM specifications.
- Tier 3 - Standard Aftermarket: Remy, BBB Industries, and MPA. These are established aftermarket manufacturers that produce reliable, budget-friendly new and remanufactured alternators. They offer a solid balance of price and performance for daily driving needs.

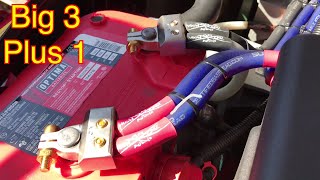

If you install a high-output alternator (above 160 amps), it is highly recommended to also perform a "Big 3" wiring upgrade. This involves replacing the main charging wires with thicker gauge cables to safely handle the increased electrical current.
🎬 See this walkthrough for a Big 3 wiring upgrade.Cost of Replacing a Hummer H2 Alternator
The cost can vary significantly based on the part you choose and who does the work. A standard remanufactured unit will be on the lower end, while a new, high-output performance alternator will be at the top of the price range.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Alternator | $78 - $453 |
| Shop Labor | $73 - $107 |
| Total Estimated Cost | $151 - $560 |
Note: Prices are estimates and can vary based on location, supplier, and the specific brand and amperage of the alternator chosen.
Frequently Asked Questions
Do I need a high-output alternator for my H2?
If your H2 is stock and used for daily driving, a standard 145-amp alternator is sufficient. However, if you have added high-draw accessories like a large stereo system, a winch, or extensive auxiliary lighting, a high-output alternator (180+ amps) is strongly recommended to prevent electrical issues and ensure all your equipment can run effectively.
Is a remanufactured alternator as good as a new one?
High-quality remanufactured alternators from reputable brands like Bosch or ACDelco are a reliable and cost-effective option. These units are rebuilt to meet or exceed original specifications, with wear components like bearings and brushes replaced. However, some owners prefer the peace of mind that comes with a 100% new unit from a brand like WAI Global.
Can I replace the H2 alternator myself?
Yes, for someone with moderate mechanical skill and the right tools, this is a manageable DIY job. The alternator is located on top of the engine and is relatively easy to access. The process involves disconnecting the battery, releasing the tension on the serpentine belt, and removing two main mounting bolts and the electrical connections.
🎬 Watch: Step-by-step guide to replacing a Hummer H2 alternator.Are there any recalls for the Hummer H2 alternator?
No, there are no specific NHTSA recalls for the alternator on the 2003-2009 Hummer H2. While there are recalls for other electrical components, the alternator itself was not subject to a recall for this model range.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10464476 15200109 15263859 20989650 22781130 19151921 25877026
The standard OEM alternator for the 2003-2009 Hummer H2 is rated at 145 amps. It is an air-cooled unit with a dual internal fan design and an internally regulated voltage. Aftermarket options are available in various amperages, from 145 amps up to 400 amps for high-demand applications.
