Hummer H2 Ambient Air Temperature Sensor Replacement Guide (2003-2009)
Fix your H2's 'ICE POSSIBLE' warning and get your A/C working again with this guide to replacing your ambient temp sensors.
- The 2003-2009 Hummer H2 uses two identical ambient air temperature sensors; it's best to replace both at the same time.
- A key symptom of failure is the 'ICE POSSIBLE' warning on the dash combined with a malfunctioning A/C system.
- This is an extremely easy DIY repair that takes less than 15 minutes and requires no special tools.
- Quality aftermarket sensors are a reliable and cost-effective solution for this specific part.
Is Your H2's Temperature Gauge Wrong?
If your Hummer H2 is showing strange outside temperatures, like 30°F on a hot summer day, a bad ambient air temperature sensor is the likely cause. This isn't just an annoyance; it directly impacts your automatic A/C's ability to cool the cabin. Because the truck thinks it's freezing outside, it may prevent the A/C compressor from turning on.

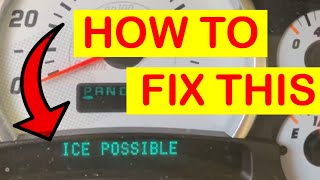

The "ICE POSSIBLE" Warning

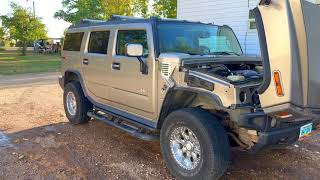

One of the most common signs of a failed sensor on an H2 is the "ICE POSSIBLE" message appearing on the dash display, even in warm weather. 🎬 See how a faulty sensor triggers the Ice Possible message. This is a clear signal that one or both sensors are sending faulty data to the vehicle's computer.
Symptoms of a Failing Ambient Air Temperature Sensor
- Incorrect Temperature Display: The temperature shown on the rearview mirror or dash is wrong.
- "ICE POSSIBLE" Message: A persistent warning on the Driver Information Center (DIC) in temperatures well above freezing.
- Automatic A/C Not Working: The system may blow air that isn't cold, or the A/C button light might just flash without engaging the compressor. 🎬 Watch how replacing these sensors can fix your A/C issues.
- Check Engine Light: In some cases, a failed sensor can trigger a check engine light with codes like P0071, P0072, or P0073.
Installation Guide: An Easy 10-Minute Fix
Replacing the ambient air temperature sensors on a 2003-2009 Hummer H2 is one of the easiest repairs you can perform. No special tools are needed.
- Locate the Sensors: Open the hood. Look on the passenger side of the radiator support frame. You will see two identical small, black sensors clipped into the frame.
- Disconnect the Sensor: Press the release tab on the electrical connector and pull it straight off the sensor. You may need a small flathead screwdriver to gently lift the tab.
- Remove the Old Sensor: The sensor is just held in by a clip. Simply pull it straight up and out of the mounting bracket.
- Install the New Sensor: Push the new sensor down into the clip until it snaps into place. Reconnect the electrical harness.
- Repeat for the Second Sensor: 🎬 Watch this quick walkthrough to see the sensor replacement process. Since they are inexpensive and prone to similar failure, it is highly recommended to replace both sensors at the same time.
Choosing the Right Aftermarket Sensor
For a simple part like an ambient air temperature sensor, an aftermarket replacement is a perfectly reliable and cost-effective choice. The technology is basic, and many reputable brands produce quality replacements. Even the OEM ACDelco part is often priced competitively with aftermarket options.
- Premium Aftermarket (Standard Ignition, Walker Products): These brands are well-regarded in the industry for producing parts that meet or exceed OEM quality. They are a solid choice for reliability and peace of mind.
- Value Aftermarket (Dorman): Dorman offers a budget-friendly option. While their quality can be inconsistent on more complex parts, for a simple sensor like this, they are generally considered an acceptable replacement.
| Part Type | Price Range (Per Sensor) |
|---|---|
| New Aftermarket | $10.54 - $33.37 |
| New OEM (ACDelco) | $15 - $25 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where are the ambient temp sensors on my Hummer H2?
They are located under the hood, clipped into the radiator support on the passenger side, right in front of the radiator. You will see two of them next to each other.
Can I replace these sensors myself?
Yes, absolutely. This is a very simple DIY job that requires no tools and takes less than 15 minutes for both sensors.
Why does my H2 have two sensors?
It is believed that one sensor sends its reading to the Driver Information Center (for the "ICE POSSIBLE" logic) while the other sends its reading to the display in the rearview mirror. Both provide input for the climate control system.
Is an aftermarket sensor good enough for my Hummer?
Yes. For this specific part, quality aftermarket brands provide a reliable and affordable alternative to OEM. Many owners use them without issue.
What happens if I don't replace a bad sensor?
Your vehicle will still run and drive, but you will have to live with an incorrect temperature display and a malfunctioning automatic climate control system, which can be very uncomfortable in hot or cold weather.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25775833 15-50151
Connector Shape: Oval, Terminal Quantity: 2, Mount Type: Push In
