Hummer H2 (2003-2009) Engine Cylinder Head Bolt Set: A Complete Guide
Secure your H2's engine reliability by understanding and choosing the right head bolts for the job.
- Always replace head bolts with a new set when removing the cylinder heads; the factory bolts are single-use TTY bolts.
- For a stock H2, choose a high-quality aftermarket TTY bolt set from a reputable brand like Fel-Pro or Victor Reinz for OEM-level reliability.
- Symptoms like overheating, white exhaust smoke, and milky oil are critical signs of a head gasket leak that require immediate attention to prevent engine failure.
- Proper installation is crucial. Ensure bolt holes in the engine block are perfectly clean and dry before installing new bolts to prevent cracking the block.
Symptoms of Failing Head Bolts
Head bolt problems are almost always related to a failing head gasket seal. If the bolts lose their clamping force or have been improperly installed, the seal can be compromised. Watch for these serious symptoms:
- Engine Overheating: An unexplained rise in engine temperature, especially under load, can be a primary sign.
- Coolant Loss with No Visible Leak: If you constantly need to add coolant but can't find a puddle under your H2, it might be leaking into the engine cylinders.
- White Smoke from Exhaust: Sweet-smelling white smoke from the tailpipe is a classic sign of coolant being burned in the combustion chamber.
- Milky Engine Oil: Check the dipstick and oil cap. A milky, frothy, or milkshake-like appearance means coolant has mixed with your engine oil, which can cause catastrophic engine damage.
- Bubbling in Coolant Reservoir: Combustion gases being forced into the cooling system can cause bubbling in the overflow tank.
Known Issue: Broken Exhaust Manifold Bolts

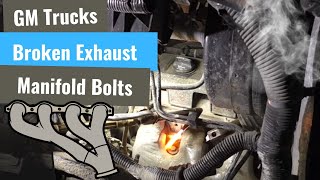

Many H2 owners experience a ticking noise from the engine, which is often caused by broken exhaust manifold bolts, not cylinder head bolts. This is a very common issue on GM V8s of this era, especially for the bolts closest to the firewall. 🎬 Watch: How to fix a broken exhaust manifold bolt While it's a different part, it's important not to confuse the symptoms. An exhaust leak ticks, while a head gasket leak causes the more serious symptoms listed above.
Choosing the Right Aftermarket Head Bolt Set
For a stock 2003-2009 Hummer H2, you do not need expensive, high-performance racing studs. You need a quality set of new Torque-to-Yield (TTY) bolts. OEM bolts are single-use only, and so are their direct aftermarket replacements. Reusing old head bolts will lead to improper clamping force and almost certain head gasket failure. Here’s a breakdown of the available brand tiers:
Tier 1: OEM-Quality Replacements
These brands are well-regarded in the industry and are often suppliers to vehicle manufacturers. For a critical component like head bolts, choosing from this tier provides the most peace of mind.
- Fel-Pro: A highly trusted and widely used brand for gaskets and sealing components in North America. Their TTY head bolts are considered an industry standard for quality and are engineered to provide precise clamping force. Tests have shown they are often identical in appearance and performance to OEM GM bolts.
- Victor Reinz: Another top-tier German brand with a strong reputation for producing high-quality gaskets and bolts that meet or exceed OEM specifications. Mechanics often consider Fel-Pro and Victor Reinz to be equally reliable choices.
Tier 2: Budget-Friendly Options
These brands provide a more affordable alternative, but have less of a proven track record for this specific, critical application.
- Apex: While Apex offers a wide range of automotive parts, they are generally considered a budget-oriented brand. Some forum discussions have reported failures with their high-performance head studs (a different product) in other applications, leading some mechanics to stick with more established brands for critical engine work. For a job as labor-intensive as a head gasket replacement, the small cost savings may not be worth the risk.
Pro Tip: Installation is Everything

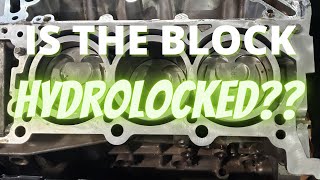

A General Motors Technical Service Bulletin (TSB 23-NA-141) warns that failure to completely clean coolant, oil, and debris from the engine block's bolt holes before installing new bolts can cause a "hydro-lock" condition. This can crack the engine block 🎬 See why cleaning head bolt holes is so important when the bolts are torqued down. Always ensure the bolt holes are perfectly clean and dry, and follow the specific multi-stage torque sequence and angle specifications exactly.
Aftermarket Head Bolt Set Cost for 2003-2009 Hummer H2
| Part Type | Price Range |
|---|---|
| New Aftermarket Head Bolt Set | $51.34 - $77.56 |
| Shop Labor for Head Gasket/Bolt Replacement | $1,500 - $2,500+ |
Note: Labor costs are an estimate for the full head gasket replacement job and can vary significantly by location and shop. The head bolts are only a small fraction of the total repair cost.
Frequently Asked Questions
Do I really have to replace my head bolts?
Yes. The Hummer H2 uses Torque-to-Yield (TTY) bolts. They are designed to permanently stretch when torqued to specification. They cannot be reused safely. Attempting to reuse them will result in incorrect clamping pressure and lead to head gasket failure.
Are aftermarket head bolts as good as OEM for my H2?
Yes, as long as you choose a reputable brand. Top-tier aftermarket brands like Fel-Pro and Victor Reinz are known for producing parts that meet or exceed OEM quality standards. For a stock engine, these are excellent and reliable choices.
What are TTY bolts?
TTY stands for Torque-to-Yield. Unlike standard bolts that are tightened to a specific torque value, TTY bolts are tightened to a lower initial torque and then turned an additional, specific angle (e.g., 90 degrees). This process stretches the bolt into its 'elastic' or 'yield' zone, providing a very even and precise clamping force across the cylinder head, which is critical for modern engines with aluminum heads and multi-layer steel gaskets.
Is replacing head bolts a DIY job?
No, this is not recommended for beginners. Replacing head bolts requires a complete teardown of the top half of the engine. It is a complex, labor-intensive job that requires specialized tools (like a torque-angle gauge), meticulous cleaning, and precise execution to avoid catastrophic engine damage. This job is best left to experienced mechanics.

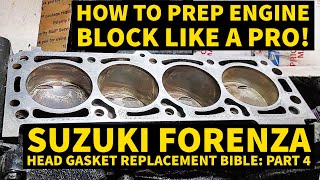

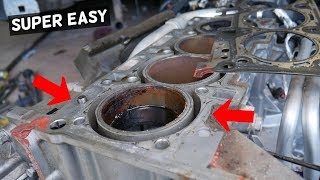

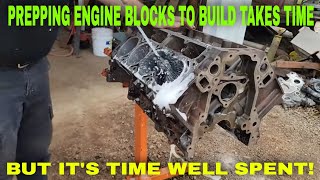

🎬 Watch this walkthrough of the head gasket removal processHelpful Videos
Technical Specifications
OEM Part Numbers: 12558840 19258707 12560745
Torque-to-Yield (TTY) design. Sets typically include M11 and M8 bolts of varying lengths required for both cylinder heads.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
