A Guide to the Hummer H2 Ignition Switch for 2003-2009 Models
Solve common starting problems, parasitic battery drain, and strange electrical issues linked to this common failure point.
- The Hummer H2 was not part of the major GM ignition switch recall; its failure symptoms are different and include stalling after starting and battery drain.
- A dead battery overnight is a classic symptom of a failing H2 ignition switch that isn't fully disengaging.
- When replacing the switch, proper gear alignment between the new switch and the lock cylinder housing is critical to ensure it works correctly.
- High-quality aftermarket brands like Standard Ignition and Dorman offer reliable and affordable solutions to this common problem.
Is Your H2 Ignition Switch Failing?
A bad ignition switch in a 2003-2009 Hummer H2 can cause some confusing symptoms. Because the H2's electrical system is complex, a failing switch can create problems that don't seem related to the ignition at first. Knowing the signs can save you from replacing the wrong parts.
Common Failure Symptoms:
- Starts and Immediately Stalls: The engine fires up when you turn the key to 'Start' but dies as soon as you release it to the 'On' position. This happens because the switch fails to keep power flowing to the ignition system.
- Dead Battery Overnight: You come out to a dead battery for no apparent reason. A worn ignition switch may not fully turn off, causing a small electrical draw (parasitic drain) that kills the battery.
- No Crank, No Start: You turn the key and nothing happens at all—no clicking, no cranking. The switch isn't completing the circuit to send power to the starter.
- Electrical Gremlins: The radio, windows, or dashboard lights may flicker or stop working randomly. In some cases, a bad switch can even trigger random warning lights or transmission error codes. 🎬 Watch: Diagnosing a no-crank and communication failure caused by the switch.
- Stalling While Driving: In severe cases, the switch can lose contact over a bump or during a turn, cutting power to the engine and creating a serious safety hazard.
Was the Hummer H2 Part of the Big GM Ignition Switch Recall?
No. The massive GM ignition switch recall (NHTSA campaign 14V047) that affected millions of smaller cars like the Chevy Cobalt and Saturn Ion did not include the 2003-2009 Hummer H2. That recall was for a different problem where a heavy keychain could bump the key out of the 'Run' position, shutting off the engine. The issues seen in the H2 are related to internal wear and electrical contact failure, not the key design.
Choosing the Right Aftermarket Ignition Switch
The original equipment (OEM) ignition switch for the H2 is a known failure point. High-quality aftermarket parts offer a reliable and affordable solution. The electrical switch is separate from the metal key lock cylinder.
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP), or Standard Ignition, is a highly respected brand known for making parts that meet or exceed OEM quality. They often use high-quality materials like copper alloy conductors and perform 100% testing on their switches. For owners who want the best-available aftermarket option, SMP is a top choice.
- Quality Aftermarket (Dorman, Rostra): Dorman is a popular brand that engineers its parts to be direct, cost-effective replacements for the original. Their switch for the H2 is designed to match the fit and function of the factory part and has undergone testing to ensure a quality fit. Rostra is another established brand in this category. These brands offer a solid balance of quality and value.
- Budget-Friendly (Replacement): 'Replacement' branded parts are a generic, low-cost alternative. They meet the basic requirements to get your truck running again and are a good option for those on a tight budget.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $22 - $41 |
| New OEM (GM) | $60 - $100 |
| Shop Labor | $75 - $150 |
Pro Tip: DIY Installation
Replacing the ignition switch is a job most DIYers can handle in under an hour with basic tools. The switch is located on the steering column, accessible after removing the lower plastic trim. The most critical step is to make sure the gear on the new switch is aligned in the exact same position as the old one before you install it. Failure to do this can cause a no-start condition or battery drain.
🎬 See this step-by-step walkthrough for a successful DIY switch replacement.Frequently Asked Questions
Can I just replace the ignition switch or do I need a new key?
You only need to replace the electronic ignition switch, not the lock cylinder that your key goes into. This means you can continue using your original keys without any need for reprogramming.
Why do my accessories and radio sometimes not work?
The ignition switch has different electrical contacts for each key position (Accessory, On, Start). When these contacts wear out, they can fail to send power to the circuits for your radio, windows, and other accessories, even when the truck is running.
Could a bad ignition switch really cause my transmission warning light to come on?
Yes, it's possible. A failing ignition switch can send erratic voltage signals throughout the vehicle's electrical system. This can confuse other computer modules, including the transmission control module, causing false error codes to be stored. One owner reported that replacing the ignition switch resolved multiple transmission codes (P2761, P0740, P0753, P0758, P0785).
My key is stuck in the ignition. Is that the switch?
It could be, but it's often caused by a separate, well-known issue with a shifter interlock cable. This cable can become loose or break, preventing the system from recognizing that the truck is in Park, which stops the key from being released. Check this cable connection under the steering column cover before replacing the entire switch for a stuck key problem.

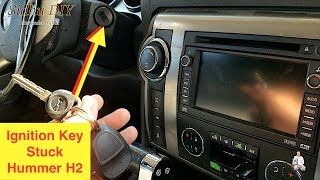

🎬 Watch: How to release a key stuck in the ignition.Helpful Videos
Technical Specifications
OEM Part Numbers: 15242754
Located on the steering column, this is the main electrical switch controlled by the key cylinder. It is separate from the mechanical lock cylinder.
