Hummer H2 Neutral Safety Switch and Range Sensor Guide (2003-2009)
Fix no-start problems, erratic gear indicators, and restore safe starting on your H2.
- This part is both a safety switch and a gear position sensor; its failure causes starting and gear display issues.
- A primary symptom is a no-crank condition where dash lights work but the engine won't turn over.
- Proper alignment during installation is critical; the transmission and new switch must both be in Neutral.
- Aftermarket brands like Standard (SMP) and Rostra offer a reliable alternative to more expensive OEM parts.
Is Your H2 Refusing to Start? It Could Be the Range Sensor.
A failing Neutral Safety Switch, also known as a Transmission Range Sensor, is a common issue on the Hummer H2 that can cause confusing symptoms. Because it's responsible for both starting safety and gear position information, its failure can mimic a bad starter, a dead battery, or even serious transmission trouble. Understanding the specific signs can help you diagnose the problem correctly and avoid replacing the wrong parts.
Symptoms of a Failing Neutral Safety Switch
When this sensor goes bad, your H2 will give you clear clues. Pay attention if you experience one or more of the following:
- No Crank in Park or Neutral: The most common symptom is turning the key and getting nothing—no click, no crank. All the lights on the dash work, but the engine won't even try to turn over.
- Starts in One Gear Only: Your H2 might start when the shifter is in Neutral but refuse to start in Park, or vice-versa.
- Incorrect Gear Display: The PRNDL indicator on your dashboard may not light up, show the wrong gear, or not change when you move the shifter.

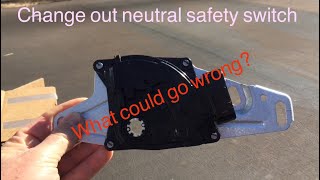

- Reverse Lights Don't Work: If you shift into Reverse and your backup lights don't turn on, the range sensor is a likely culprit as it controls that function. 🎬 See how a faulty switch causes backup light failure.
- Check Engine Light: A faulty sensor can trigger a Check Engine Light. A common trouble code associated with this failure is P0705 (Transmission Range Sensor Circuit Malfunction). 🎬 Watch this before replacing parts for a P0705 code.
- Starts in Any Gear: In rare and dangerous cases, a shorted-out switch can allow the engine to start while in Drive or Reverse. This is a critical safety failure that requires immediate attention.
Rule Out Other Issues First
A no-start condition can also be caused by a weak battery, a bad starter, or a faulty ignition switch. Shifter-related problems, like getting stuck in Park, are often caused by broken wires in the center console or a bad brake light switch, not the neutral safety switch itself.
Choosing the Right Aftermarket Part
While the original AC Delco part is an option, several aftermarket brands offer quality replacements at a lower cost. Not all aftermarket parts are created equal, so it's important to understand the differences in quality.
Tier 1: Quality Aftermarket (Standard, Rostra)
Brands like Standard Motor Products (SMP) and Rostra Powertrain have a strong reputation for producing reliable electronic components that often meet or exceed OEM specifications. SMP is a long-standing manufacturer trusted by many mechanics. Rostra is a specialized powertrain electronics producer known for quality control. Choosing a part from these brands is a solid investment in reliability without the full cost of an OEM part.
Tier 2: Economy Aftermarket (Dorman, Replacement)
Brands like Dorman and store-branded 'Replacement' parts offer the most budget-friendly solution. While Dorman manufactures a huge range of parts and describes them as durable replacements, their electronic components have a mixed reputation in enthusiast forums, with some users reporting premature failures. These parts can be a viable option if the budget is the primary concern, but may carry a higher risk of needing to be replaced again sooner than a Tier 1 or OEM part.
The Importance of Proper Installation
Regardless of the brand you choose, correct installation is critical. The switch must be physically aligned with the transmission in the Neutral position. New switches often come with a pin or tab to hold them in the neutral position for installation. If this alignment is off, you'll experience the same symptoms as a bad switch, such as an incorrect gear display or a no-start condition.
Cost of Replacing the Hummer H2 Neutral Safety Switch
The total cost depends on whether you do the job yourself or take it to a shop. The part itself is affordable, but labor can add to the final price.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $47 - $94 |
| New OEM (AC Delco) Part | $85 - $150 |
| Shop Labor | $95 - $150 |
| Total (Shop Repair) | $140 - $300 |
Frequently Asked Questions (FAQ)
Can I replace the H2 Neutral Safety Switch myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills and tools. The switch is located on the driver's side of the transmission. The process involves safely raising the vehicle, removing the shift linkage from the transmission shaft, unplugging the electrical connectors, unbolting the old switch, and installing the new one. 🎬 Watch this step-by-step walkthrough of the replacement process. The most critical step is ensuring both the transmission and the new switch are in the Neutral position before tightening the bolts.
Are there any recalls for this part on the Hummer H2?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no safety recalls for the neutral safety switch or transmission range sensor for the 2003-2009 Hummer H2.
What happens if I don't replace a bad switch?
At best, you will deal with an intermittent starting problem that could leave you stranded. At worst, if the switch fails in a way that allows the vehicle to start in gear, it creates a serious safety hazard that could cause an accident. It's best to replace it as soon as symptoms appear.
Is the Transmission Range Sensor the same as the Neutral Safety Switch?
Yes. On the Hummer H2 and similar GM trucks, these terms refer to the same part. It performs both the safety function (allowing start in P/N) and the sensor function (reporting gear position).
Why does my gear indicator (PRNDL) still not work after replacing the switch?
If a new switch doesn't fix the gear indicator, there are two common causes. First, the switch may be misaligned; it has slotted mounting holes for fine adjustment. Second, the instrument cluster itself may be faulty. Instrument cluster failure is a very common problem on 2003-2007 GM trucks and SUVs, including the H2, which can cause dead gauges and PRNDL display issues independent of the range sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24229422 24298931 24221125
Located on the driver's side of the 4L60E/4L65E transmission case, connected to the manual shift shaft.
