Hummer H2 Power Steering Pump Guide for 2003-2009 Models
Everything you need to know before replacing the power steering pump on your H2.
- The H2 uses a hydro-boost system, meaning a bad pump affects both steering and braking.
- Whining noises and stiff steering at low speeds are the most common early symptoms of failure.
- Always flush the entire power steering system when replacing the pump to prevent damaging the new part.
- For H2s with larger-than-stock tires, a heavy-duty aftermarket pump is a worthwhile upgrade over OEM or standard replacements.
Is Your H2's Power Steering Pump Failing?
The power steering pump on the 2003-2009 Hummer H2 is a known weak point, often struggling with the vehicle's weight and larger tires. Because it powers both steering and brakes through the hydro-boost system, recognizing the symptoms early is key to staying safe on the road.
Common Failure Symptoms:
- Whining or Groaning Noises: This is often the first sign. You may hear a whining sound that gets louder when you turn the steering wheel or as the engine RPMs increase. This noise comes from the pump working too hard, often due to low fluid, air in the system, or internal wear.
- Stiff or Heavy Steering: If turning the wheel, especially at slow speeds or when stopped, suddenly feels like a workout, the pump is likely not producing enough pressure. Several Technical Service Bulletins (TSBs) have been issued by GM for this exact issue on the H2.
- Hard Brake Pedal: Since the pump powers your brake booster, a failing pump can make the brake pedal much harder to press, increasing your stopping distance. This is a serious safety concern.

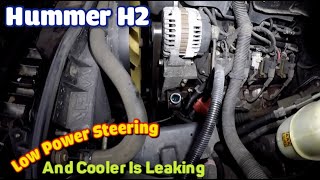

- Fluid Leaks: Puddles of reddish or light brown fluid under the front of your H2 are a clear sign of a leak. While the pump itself can leak, be sure to also check the power steering hoses, 🎬 Watch: How to find leaks and replace the steering cooler. as a hose recall was issued for potential fractures.
Hydro-Boost System Warning
A failing power steering pump on an H2 means you are losing assist for both steering AND braking. While you can technically still steer and stop, it will require a dangerous amount of physical effort. It is not safe to drive long distances in this condition.
Choosing the Right Aftermarket Pump
When replacing your H2's power steering pump, you have several options. The original OEM pumps are known to be a weak point, so a quality aftermarket part can be a good upgrade.
| Brand Tier | Brands | Typical Price | Description |
|---|---|---|---|
| Budget / Standard | Cardone (Reman), Replacement, BBB Industries | $80 - $180 | These are the most affordable options. However, quality can be inconsistent, especially with remanufactured units. Forum users report mixed experiences, sometimes needing to replace a new pump shortly after installation due to defects. These are a gamble, but can work for a budget-conscious owner. |
| OEM-Equivalent | Cardone (New), PWR, Mapco | $150 - $250 | These new aftermarket pumps aim to meet or exceed original specifications. They are generally more reliable than remanufactured parts and offer a good balance of price and performance for a daily-driven H2 with stock-sized tires. |
| Premium / OEM | ACDelco (GM OE), PSC | $250 - $500+ | ACDelco is the original GM part and a direct replacement. For a true upgrade, especially if you run larger tires, brands like PSC (Performance Steering Components) offer heavy-duty pumps with higher flow and pressure to handle the extra strain. |
Pro Tip: Flush The System!
When a pump fails, it can send metal debris throughout the entire steering system, including the lines, cooler, and steering gear. A recent GM Technical Service Bulletin (TSB 23-NA-144) emphasizes that failing to flush the system can cause the new pump and hydro-boost unit to fail prematurely. 🎬 See how to replace the hydro-boost brake booster unit. Always flush the system thoroughly and consider installing an in-line magnetic filter to catch any remaining contaminants.
Frequently Asked Questions (FAQ)
Is it hard to replace an H2 power steering pump?
For a DIY mechanic, it is a moderately difficult job that takes 2-4 hours. You will need to remove the serpentine belt and use a special pulley puller/installer tool, which can be rented from most auto parts stores. You may also need to remove the alternator for better access. If you're not comfortable with this, a professional mechanic can do the job.
🎬 Watch: Step-by-step guide to removing and installing the H2 pump.Was there a recall on the H2 power steering pump?
There was no recall on the pump itself. However, there was a safety recall (NHTSA 05V-455) for the power steering hose on some H2s, which could fracture, leak fluid, and cause a loss of power steering and braking assist. A leaking hose can starve the pump of fluid and cause it to fail.
Do I need a special pump for my bigger tires?
Yes, it's highly recommended. Larger, heavier tires put a huge strain on the stock power steering pump, which is a common reason they fail. If you have oversized tires, investing in a heavy-duty aftermarket pump from a brand like PSC will provide the necessary pressure and flow, making steering easier and prolonging the life of the components.
Should I buy a new or remanufactured pump?
While remanufactured pumps from brands like Cardone are cheaper, they have a reputation for inconsistent quality. Many owners and mechanics report having to replace them multiple times. A new aftermarket pump often provides better reliability and peace of mind for a slightly higher cost.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15909826 19420676 15909828 20756710 88963603 15267669 15076612
Vehicle utilizes a hydro-boost system where the power steering pump provides hydraulic assist for both the steering gear and the brake booster. Different part numbers apply for the 6.0L V8 (2003-2007) and 6.2L V8 (2008-2009) engines. A pulley puller/installer tool is required for service.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
