A Comprehensive Guide to 2003-2009 Hummer H2 Suspension Control Arms
Stop the clunking and tighten up your H2's steering with the right replacement control arms.
- Loud clunking over bumps is the most common symptom of a failing control arm on an H2.
- Due to the H2's weight, choose premium aftermarket brands like Moog or ACDelco for better durability.
- Always replace the entire control arm assembly, not just the ball joint or bushings, to save on labor and ensure reliability.
- A wheel alignment is mandatory after replacement to prevent tire damage and ensure safety.
Is Your H2's Front Suspension Making Noise?
The Hummer H2 is a heavy-duty vehicle, and its weight puts significant strain on front suspension components. The control arm bushings and ball joints are common wear items. When they fail, you'll notice it. Ignoring symptoms can lead to more expensive repairs and unsafe driving conditions. A complete failure of a ball joint or control arm can cause the suspension to collapse, leading to a total loss of vehicle control.
Symptoms of a Failing Control Arm Assembly
- Clunking or Popping Noises: This is the most common sign. You may hear a distinct clunking sound when driving over bumps, potholes, or making turns.
- Steering Wander: The vehicle may feel like it's pulling to one side, requiring you to constantly correct the steering wheel to drive straight.
- Vibrations: A worn ball joint or bushing can cause vibrations that you feel through the steering wheel, especially at higher speeds.
- Uneven Tire Wear: Check your front tires. Excessive wear on the inner or outer edges is a classic sign that a bad control arm or ball joint has affected the wheel alignment.
- Loose or Shaky Steering: The steering may feel less responsive or have a noticeable "play" in it. 🎬 Watch a breakdown of the top symptoms of bad control arms.
Known Issues: Recalls and TSBs
While there are no specific NHTSA recalls for OEM Hummer H2 control arms, there was a recall (06E010000) for an aftermarket Fabtech replacement pitman arm that could fail and cause a loss of steering. This highlights the importance of choosing quality steering and suspension components. There are no major Technical Service Bulletins (TSBs) directly related to control arm failure, though general suspension noise TSBs exist.
Choosing the Right Aftermarket Part for Your H2
For a heavy vehicle like the H2, choosing a quality aftermarket part is crucial. It is almost always recommended to replace the entire control arm assembly rather than trying to press out old bushings or ball joints. This saves significant labor time and ensures all related components are new and reliable. Aftermarket brands generally fall into a few tiers:
Brand Quality Tiers
- Premium Brands (ACDelco, Moog): These brands are known for high-quality manufacturing that meets or exceeds OEM standards. ACDelco is GM's own parts brand, offering a direct OEM-quality equivalent. Moog is a well-regarded brand among H2 owners for its durability and problem-solving designs.
- Mid-Grade / Value Brands (Dorman, Mevotech): These brands offer a good balance of quality and affordability. Dorman is a popular, cost-effective solution. Mevotech is known for innovative designs and offers different product lines, with their "TTX" or "Supreme" lines being considered more durable. Some users report longevity may not match premium brands.
- Economy Brands (Suspensia, various private labels): These are typically the lowest-cost options. While budget-friendly, their long-term durability on a heavy vehicle like the H2 can be a concern for some owners.
Pro Tip: Due to the H2's weight, investing in a premium or reputable mid-grade brand is highly recommended for longevity and safety. Many owners on forums prefer ACDelco or Moog for peace of mind.
Estimated Costs for Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Control Arm Assembly (Single) | $54 - $212 |
| Shop Labor (Per Side) | $200 - $400 |
| Total Professional Replacement (Per Side) | $254 - $612 |
| Wheel Alignment (Required) | $100 - $200 |
Costs are estimates and can vary based on location, part brand, and shop labor rates.
Frequently Asked Questions
Do I need a wheel alignment after replacing control arms?
Yes, absolutely. Replacing a control arm will change your vehicle's alignment settings. A professional wheel alignment is mandatory immediately after the repair to ensure proper handling, prevent rapid tire wear, and maintain safety.
Should I replace control arms in pairs?
Yes. It is always recommended to replace suspension components like control arms on both sides of the same axle (e.g., both front uppers). This ensures the suspension is balanced and handling is predictable. If one side has failed from wear, the other side is likely worn as well.
Can I just replace the ball joint or bushings?
While technically possible, it is not recommended for a DIY repair. Pressing old ball joints and bushings out requires special tools and adds significant labor time. Buying a complete control arm assembly with a new ball joint and bushings pre-installed is faster, easier, and often more cost-effective in the long run.
What's the difference between upper and lower control arms?
The H2's front suspension has two control arms for each wheel. The upper control arm connects to the top of the steering knuckle, and the lower control arm connects to the bottom. They work together to keep the wheel stable and aligned through its up-and-down travel. They are different parts and are not interchangeable.

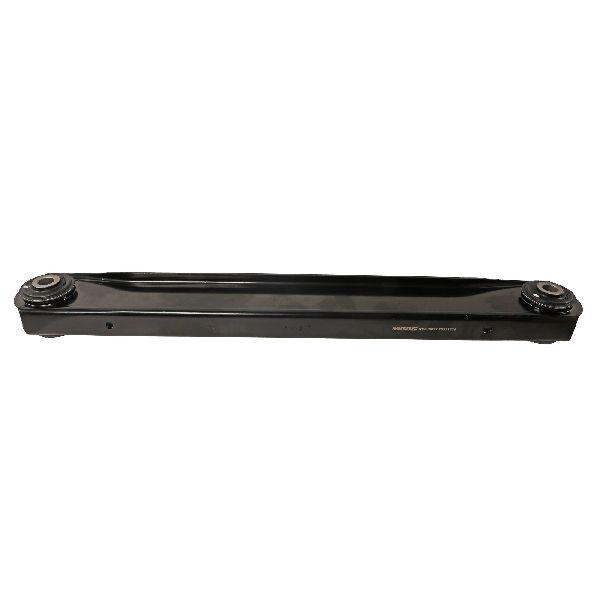

Is replacing a rear control arm on the H2 different?
Yes, the rear suspension uses a different 5-link setup. While the function is similar—to locate the axle—the parts and replacement procedure are different. Notably, on the driver's side, the front bolt of the lower rear control arm can be blocked by the fuel tank, making replacement more complex and sometimes requiring the tank to be partially dropped.
🎬 See how to replace the rear lower control arms.Helpful Videos
Technical Specifications
OEM Part Numbers: 25905442 20832024 20832025 15767252 15286145
The 2003-2009 Hummer H2 uses an independent front suspension with upper and lower control arms and a 5-link solid axle rear suspension. Control arms are specific to position (front/rear, upper/lower, left/right). Aftermarket assemblies typically include pre-installed ball joints and bushings.
