A Comprehensive Guide to the 2003-2009 Lexus GX470 A/C Expansion Valve
If your GX470's air conditioning is weak, inconsistent, or blowing warm, the A/C expansion valve could be the culprit.
- Denso is the original equipment (OE) supplier for the GX470 and is the most recommended brand for reliability and fit.
- Replacement is a labor-intensive job that requires specialized A/C service equipment; it is not a recommended DIY task.
- Symptoms like weak cooling can also be caused by a simple refrigerant leak, so professional diagnosis with gauges is essential before replacing parts.
- Always replace the A/C receiver/drier anytime the system is opened to ensure the longevity of the repair.
Is Your GX470 A/C Losing Its Cool?
A failing A/C expansion valve is a common issue that can leave you with weak or warm air, even when the rest of the A/C system seems to be working. Because its symptoms can mimic other problems, like low refrigerant or a bad compressor, proper diagnosis is key. Understanding the signs of a failing expansion valve can help you and your mechanic pinpoint the problem faster.
Symptoms of a Bad A/C Expansion Valve in a GX470
When the expansion valve fails, it typically gets stuck open or clogged. This disrupts the delicate balance of refrigerant flow and pressure needed for cooling. Here’s what to look for:
- Weak or Warm Air: This is the most common symptom. If the valve is stuck closed, it restricts refrigerant flow, leading to poor cooling. If it's stuck open, it can flood the evaporator, also reducing cooling efficiency.
- Frost on A/C Parts: You might see frost or ice forming on the expansion valve itself or the A/C lines connected to it. This often points to a valve that is stuck open or clogged, causing the refrigerant to expand incorrectly.
- Inconsistent Cooling: The A/C might blow cold for a few minutes and then turn warm, or cycle between cool and warm. This can happen as the valve struggles to regulate pressure.
- A/C Compressor Constantly Running or Shutting Off: A faulty valve can send incorrect pressure signals through the system. This may cause the compressor to shut off to protect itself from damage or run constantly without providing cooling.
- Hissing Sound from the Dash: Some owners report hearing a hissing sound from the dashboard area, which can be the sound of refrigerant trying to pass through a malfunctioning valve.
Diagnosis is Crucial
Symptoms like weak cooling can also be caused by a simple refrigerant leak. A professional mechanic should use a manifold gauge set to read the high and low-side pressures of your A/C system. Abnormal readings are the best way to confirm if the expansion valve is the true cause 🎬 See how contaminated refrigerant can mimic expansion valve failure. of the problem.
Choosing the Right Aftermarket Expansion Valve
For your 2003-2009 GX470, you have several good aftermarket options. Since replacing this part is labor-intensive, choosing a quality brand is important to avoid doing the job twice.
Tier 1: OEM Supplier
- Denso: Denso is the original equipment (OE) manufacturer for Toyota and Lexus A/C systems. Choosing a Denso expansion valve is the closest you can get to buying the part from a Lexus dealership. It guarantees perfect fitment and performance built to factory standards. For owners who plan to keep their GX470 for the long haul, Denso is the most reliable choice.
Tier 2: Reputable Aftermarket Brands
- Four Seasons: Four Seasons is one of the largest and most well-known aftermarket A/C parts suppliers. Their new parts are generally considered a reliable and cost-effective alternative to OEM.

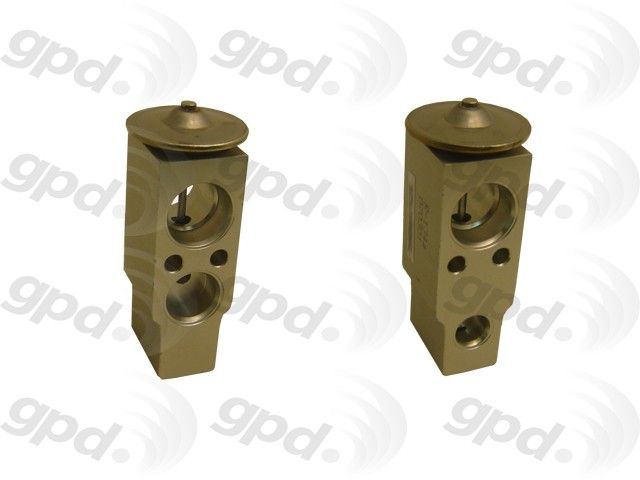

- Nissens & Global Parts (gpd): These are also established brands in the aftermarket A/C world. They offer a balance of quality and value, making them a solid choice for most repairs. While less common than Denso or Four Seasons, they are designed to meet OE specifications.
Pro Tip: Always Replace the Receiver/Drier
Anytime the A/C system is opened for a repair like this, you MUST replace the receiver/drier (also called an accumulator). The drier contains a desiccant that absorbs moisture from the refrigerant. Once exposed to air, it becomes saturated and useless. Failing to replace it can lead to moisture in the system, corrosion, and premature failure of your new parts.
Cost to Replace a Lexus GX470 A/C Expansion Valve
The part itself is inexpensive, but the labor is not. The expansion valve is located behind the dashboard and requires specialized equipment to evacuate and recharge the A/C system. This is not a typical DIY job.
🎬 Watch: How to replace the valve without removing the dash.| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New Aftermarket Expansion Valve | $29 - $73 | Price for the part only. |
| New OEM Expansion Valve | $490 - $510 | Significantly more expensive for the genuine Lexus part. |
| Shop Labor & A/C Service | $475 - $930 | Includes evacuating and recharging refrigerant, and the labor to access the valve. |
| Total Professional Replacement | $500 - $1,000+ | Using an aftermarket part. Total cost will vary by shop and location. |
Frequently Asked Questions (FAQ)
Where is the A/C expansion valve located on a 2003-2009 GX470?

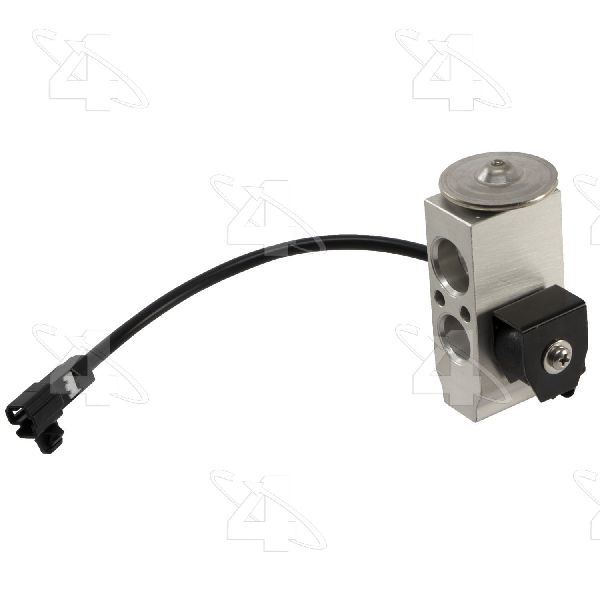

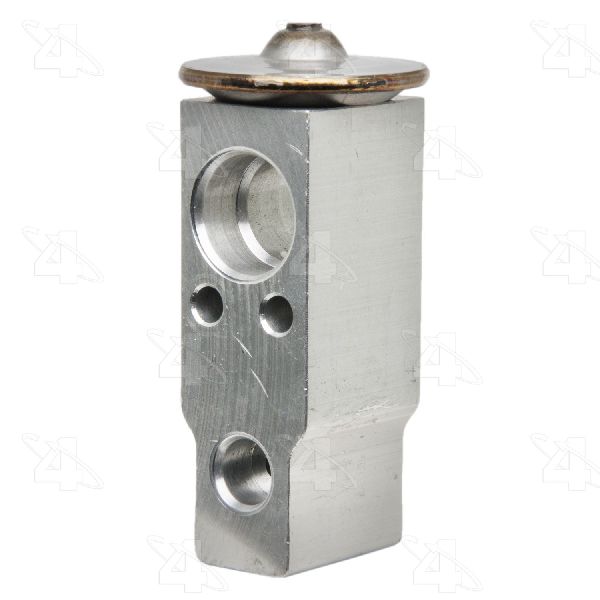

The front A/C expansion valve is located on the passenger side, at the firewall where the A/C lines enter the cabin. Accessing it requires removing the glove box and often the CD changer to get enough room to work. The GX470 also has a rear expansion valve for the rear A/C unit, located in the passenger-side rear cargo area behind the trim panel.
Can I replace the GX470 expansion valve myself?
This is not recommended for most DIY mechanics. While accessing the valve is possible by removing the glove box, the job requires specialized and expensive equipment to safely recover the old refrigerant and then pull a vacuum and recharge the system with the correct amount of new refrigerant. Improper handling of refrigerant is harmful to the environment and can be dangerous. This job is best left to a qualified A/C technician.
Is there a recall or TSB for the GX470 expansion valve?
No. As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for the A/C expansion valve on the 2003-2009 GX470. Recalls for this vehicle generation typically involve airbags or incorrect labels.
My A/C is cold on the passenger side but warm on the driver's side. Is it the expansion valve?
While possible, this specific symptom is more commonly caused by low refrigerant levels in the system. When the refrigerant charge is low, the evaporator doesn't cool evenly, often causing one side to be colder than the other. Before suspecting the expansion valve, the first step should be to have the system's refrigerant level checked by a professional.
🎬 Watch: How a bad air mixer damper causes uneven cooling.Helpful Videos
Technical Specifications
OEM Part Numbers: 88515-60190 88515-35020 88515-60130 88515-60200
This is a block-type expansion valve. The 2003-2009 Lexus GX470 uses both a front and a rear expansion valve for its dual A/C system. The part numbers listed primarily refer to the front unit, which is the more common failure point.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
