Lexus GX470 (2003-2009) Disc Brake Caliper Replacement and Diagnosis
Address the common seized front caliper piston issue and restore your GX470's braking power.
- The front calipers on the 2003-2009 GX470 are notorious for seized lower pistons, causing brake drag and uneven pad wear.
- When replacing, strongly consider new aftermarket calipers from brands like Powerstop or Centric, which are cost-effective and may have improved corrosion resistance.
- Always replace calipers in pairs (left and right) to maintain balanced and safe braking.
- A complete brake fluid flush and bleed is essential after installing new calipers to ensure proper function and remove air from the system.
A Notorious Issue: Seized Front Caliper Pistons
If you own a 2003-2009 GX470, you should be aware of a very common problem: seized front brake caliper pistons. This issue is well-documented by owners in forums and is a frequent topic of discussion. Specifically, the lower pistons in the front four-piston calipers are prone to sticking due to corrosion from moisture and road grime getting past the dust boots. This causes the piston to not retract properly after you release the brake pedal.
A seized piston leads to the brake pad constantly dragging on the rotor. This generates excessive heat, which can warp the rotor, and causes rapid, uneven wear on the inner brake pad. Many owners first notice the problem when they see one brake pad worn down to the metal while the others are fine, or when they feel a violent shaking in the steering wheel when braking from highway speeds.
🎬 Watch: How to diagnose a seized brake caliper yourself.Choosing the Right Aftermarket Caliper for Your GX470
When a caliper fails, you have a few options. While OEM Lexus calipers are high quality, they are also the most expensive choice. New aftermarket calipers offer a cost-effective and reliable solution, often incorporating features to prevent the original failure mode. Remanufactured calipers are another option, but quality can be inconsistent. For this specific issue, investing in a quality new aftermarket caliper is often the best balance of price and long-term reliability.
🎬 See this step-by-step front caliper replacement walkthrough.Here's a look at some of the available brands:
- Powerstop: Often sold as a performance upgrade, Powerstop calipers frequently come with a powder-coated finish that helps resist corrosion. They are typically sold as complete, ready-to-install units and are a popular choice among GX owners.
- Centric: A major player in the aftermarket brake world, Centric offers several lines of calipers. Their new calipers are a solid OE-style replacement.
- Cardone: Cardone offers both new and remanufactured calipers. Their "Ultra" line of remanufactured calipers features a protective coating to prevent rust.
- Raybestos: A long-standing brand in the brake industry, Raybestos offers their Element3 line of new calipers which are designed to be a direct OE replacement.

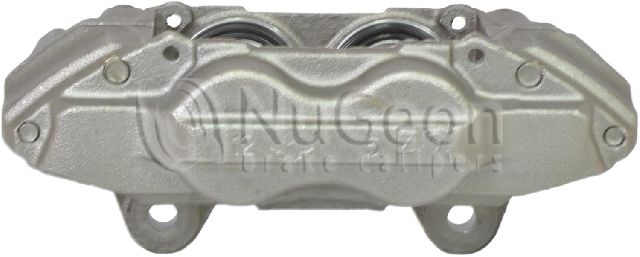

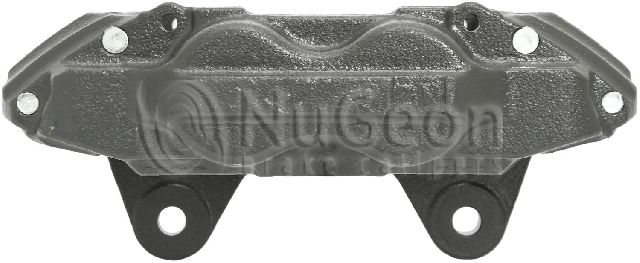

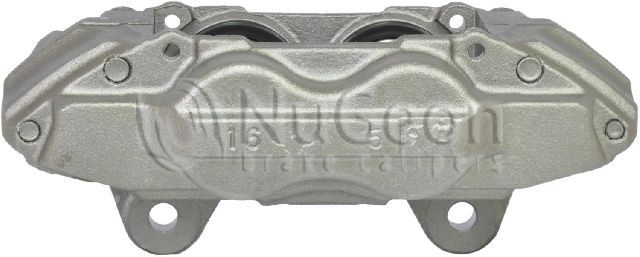

- Dynamic Friction & BBB Industries: These brands also provide new aftermarket options that serve as direct-fit replacements for the original calipers.
Cost of Replacing a Lexus GX470 Brake Caliper
| Item | Estimated Cost |
|---|---|
| New Aftermarket Caliper (Single, Front) | $57 - $155 |
| New OEM Caliper (Single, Front) | $255 - $365 |
| Shop Labor (Per Caliper) | $150 - $255 |
Frequently Asked Questions (FAQ)
Do I have to replace my calipers in pairs?
It is highly recommended. Replacing both the left and right calipers at the same time ensures that both sides have the same braking force and response. This prevents the vehicle from pulling to one side during braking and ensures predictable, safe performance.

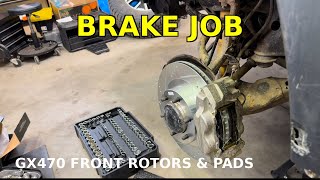

🎬 Watch: Complete tutorial for changing your pads and rotors.What is a "core charge"?
Many remanufactured and some new calipers have a "core charge." This is a deposit that you get back when you return your old, failed caliper to the parts supplier. This allows the manufacturer to rebuild the old part and keep costs down.
Can I just rebuild my original caliper?
Yes, rebuild kits with new seals and boots are available. However, this is a more labor-intensive process. If the caliper piston or its bore is pitted with rust, a simple rebuild may not be successful, and the piston could seize again. Given the affordable cost of new aftermarket calipers, replacement is often the more practical option.
Why are the aftermarket calipers a different color?
Many aftermarket calipers, like those from Powerstop, are powder-coated in colors like red or grey. This coating is not just for looks; it provides a durable barrier against moisture and road salt, helping to prevent the corrosion that caused the original part to fail.
Helpful Videos
Technical Specifications
OEM Part Numbers: 47750-60261 47730-60261 47750-60130 47730-60130

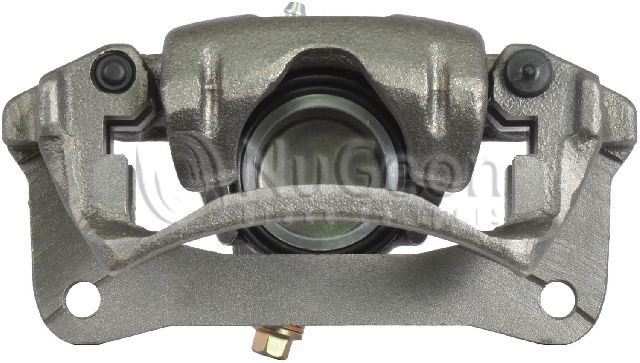

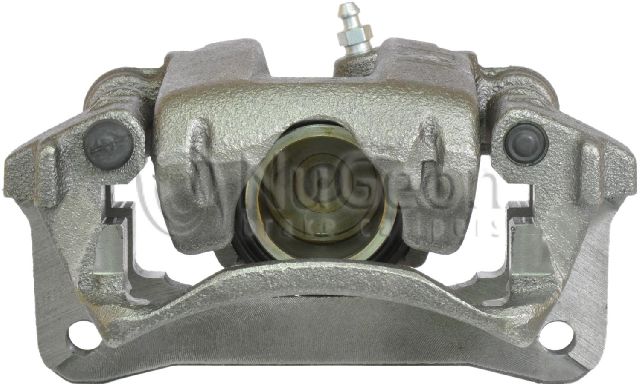

The front brakes on the 2003-2009 Lexus GX470 utilize a fixed, four-piston caliper design. The rear brakes use a smaller, two-piston fixed caliper. The system requires DOT 3 brake fluid.
