A Guide to the Alternator for the 2003-2009 Lincoln Navigator
Keep your Navigator's complex electrical system running strong by understanding how to spot and fix a failing alternator.
- Always test the battery and clean the cable connections before assuming the alternator is bad.
- For stock vehicles, a quality new aftermarket brand like Denso or ACDelco is a reliable choice.
- If you have added electronics like a large stereo, upgrade to a high-output alternator from a brand like Powermaster.
- After replacement, if a charging light persists, check the charging system fusible links in the under-hood fuse box.
Is Your Navigator's Alternator Failing?
A failing alternator rarely dies without warning. For a Lincoln Navigator, with its heavy reliance on electronics, the signs are often obvious. Ignoring them can leave you stranded. Look for these common symptoms:
🎬 Watch: A breakdown of common bad alternator symptoms and fixes.- Warning Lights: The most direct clue is the battery-shaped warning light on your dashboard or a message like "Check Charging System".
- Dimming or Flickering Lights: You may notice your headlights and interior lights pulsing, dimming at idle, or even getting unusually bright.
- Electrical Gremlins: Power windows that are slow to operate, a radio that cuts out, or other strange accessory behavior can point to a weak alternator.
- Strange Noises: A grinding or growling sound from the front of the engine can indicate bad bearings inside the alternator. A loud squeal often points to a worn or slipping serpentine belt, which also prevents the alternator from charging.
- Dead Battery: If you need to jump-start your Navigator frequently, the alternator is likely not recharging the battery as it should.
Always Test the Battery First
Many alternator symptoms overlap with those of a weak battery. Before replacing the alternator, have your battery tested. Most auto parts stores offer this service for free. If a brand-new battery dies quickly, the alternator is almost certainly the culprit.
🎬 See how to test your alternator before buying a replacement.Choosing the Right Aftermarket Alternator
The original Motorcraft alternator on your Navigator is a quality part, but new aftermarket units can offer excellent performance and value. They generally fall into a few categories:
Premium & High-Output New Aftermarket:
- Denso & ACDelco: These brands are often original equipment suppliers to many automakers and are known for their high quality and reliability, making them a top-tier choice that is often equivalent to OEM.
- Powermaster: This brand specializes in high-output alternators. If you have added power-hungry accessories like a large sound system, extra lighting, or a winch, a Powermaster unit is a smart upgrade. They provide more amperage at idle and at maximum output than a stock alternator.
Standard New & Remanufactured Aftermarket:
- WAI Global: WAI manufactures 100% new alternators that are widely available. While some users have good experiences, others have reported issues with units being faulty out of the box or not meeting their advertised amperage.
- BBB Industries / Remy: BBB is a major remanufacturer that also owns the Remy brand and supplies parts for store brands like NAPA. Quality can be inconsistent, a common trait for remanufactured parts. Some users report early bearing failures on new Remy units. However, many have success with them, and they often come with a good warranty.
- MPA (Motorcar Parts of America): MPA is a major supplier of aftermarket parts, including the Quality-Built brand, which is known for its strict testing procedures.
New vs. Remanufactured
A new aftermarket alternator is built from all-new components. A remanufactured (or "reman") unit has been disassembled, cleaned, and had its failed or worn components replaced before being reassembled and tested. While remanufactured units are budget-friendly, their reliability can be inconsistent. For a vehicle like the Navigator, a high-quality new aftermarket unit is often the most trouble-free choice.
Known Issues for the 2003-2009 Navigator
No specific recalls or Technical Service Bulletins (TSBs) exist for widespread alternator failure on this generation of Navigator. However, technicians often find that charging system problems are not the alternator itself, but related components. Before replacing the alternator, it's wise to check:
- Battery Cables & Connections: Corrosion on the battery terminals or a loose ground wire can prevent the system from charging correctly.
- Fusible Links: Your Navigator has fusible links in the charging system located in the under-hood fuse box. A blown link will cut power from the alternator and prevent charging, even with a brand-new part.
Cost to Replace a Lincoln Navigator Alternator
The total cost will depend on the part you choose and whether you do the work yourself.
| Item | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $400 - $600+ |
| New Aftermarket Part | $152 - $383 |
| Remanufactured Part | $170 - $300 |
| Shop Labor | $195 - $286 |
| Total Professional Replacement | $350 - $970+ |
Frequently Asked Questions
Is replacing the alternator on a 2003-2009 Navigator a DIY job?
Yes, for someone with moderate mechanical skills and basic tools. The alternator is located at the top front of the 5.4L V8 engine and is relatively accessible after removing the air intake tube. The job involves removing the serpentine belt, a mounting bracket, and a few bolts and electrical connections. The tight space around the fan shroud can make removing the old unit tricky.
🎬 Watch this step-by-step 2003-2006 Navigator alternator replacement walkthrough.How do I know if I need a high-output alternator?
If your Navigator is stock, a standard replacement alternator is sufficient. However, if you have installed aftermarket electronics like a powerful stereo amplifier, off-road lights, a winch, or other high-draw accessories, you should strongly consider a high-output alternator from a brand like Powermaster. This will prevent dimming lights and ensure all your systems have enough power, especially at idle.
What is the "Big 3 Upgrade" and do I need it?
The "Big 3 Upgrade" involves replacing three key cables with thicker, higher-capacity wires: the alternator positive to battery positive, the battery negative to the chassis, and the engine block to the chassis. This upgrade reduces resistance and helps a high-output alternator deliver its full power more efficiently. It is highly recommended if you install a high-output unit.
The battery light is still on after replacing the alternator. What's wrong?
If the light remains on with a new, functioning alternator, the problem lies elsewhere. Check for a blown fusible link, bad wiring, or corroded battery terminals. On some Ford vehicles, the charging system is controlled by the main computer (PCM), and a persistent light could indicate a communication issue or a fault code that needs to be cleared.
Helpful Videos
Technical Specifications

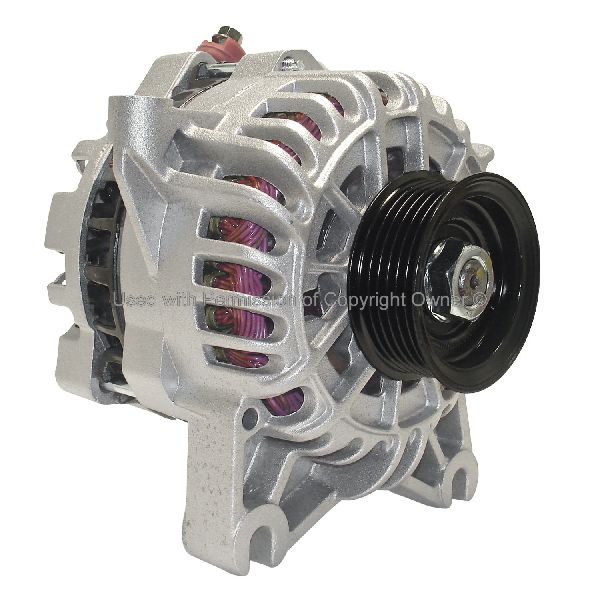

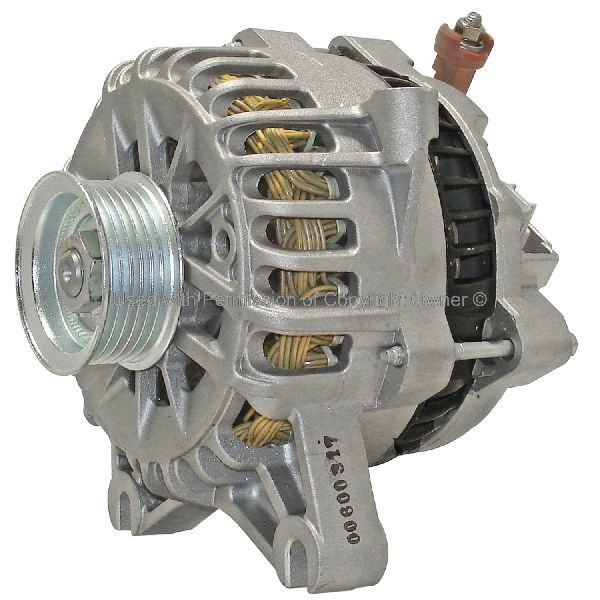

OEM Part Numbers: 3L7Z-10346-AA 4L7Z-10346-AA GL-583 GL-615
The 2003-2009 Lincoln Navigator uses a Ford 6G series alternator. The standard output is typically 110 amps, with some models or replacement options offering 130-135 amps. High-output aftermarket versions can range from 170 to over 300 amps. The alternator uses an internal regulator and a serpentine belt with a 6 or 8-groove pulley.
