A Guide to Replacing the Radiator in Your 2003-2009 Mazda 6
Keep your Mazda 6 engine from overheating by choosing the right replacement radiator.
- The most common failure is the radiator's plastic end tanks cracking, not the metal core.
- Replacement is a difficult job that requires removing the entire front bumper and core support.
- Quality aftermarket brands like Koyorad, CSF, and Denso are excellent alternatives to the more expensive OEM part.
- While replacing the radiator, it is highly recommended to also replace the hoses and thermostat to save on future labor costs.
Is Your Mazda 6 Radiator Failing?
A failing radiator can lead to serious engine damage if ignored. The most common issue on the 2003-2009 Mazda 6 is not the aluminum core, but the plastic parts attached to it. Over time, the plastic end tanks and fittings become brittle from constant temperature changes and can crack. Watch for these clear signs that your radiator needs to be replaced:
- Engine Overheating: The most obvious sign is the temperature gauge on your dashboard climbing into the red zone.
- Coolant Leaks: You may find puddles of bright green, yellow, or pink fluid under the front of your car. This fluid has a distinct sweet smell.
- Low Coolant Level: Frequently needing to add coolant to the overflow tank is a sure sign of a leak somewhere in the system.
- Visible Cracks or Corrosion: Look for white, crusty deposits or obvious cracks on the black plastic sections at the top and bottom or sides of the radiator.
- Transmission Fluid Leak (Automatic Models): A specific weak point is the plastic nipple where the transmission cooler line enters the radiator. A crack here will leak reddish or brown transmission fluid. 🎬 Watch this video to see a common leak onto the transmission.
Known Issues for 2003-2009 Mazda 6 Radiators
The original factory radiators in this generation of Mazda 6 commonly fail at the plastic end tanks, which are crimped onto the aluminum core. The plastic becomes brittle with age and can develop hairline cracks, especially where the upper and lower radiator hoses connect. For automatic transmission models, the integrated transmission fluid cooler connections are a frequent source of leaks. There are no official recalls or technical service bulletins (TSBs) from Mazda for this specific issue, as it is considered a wear-and-tear item.
Installation is More Difficult Than Average
Replacing the radiator on a 2003-2009 Mazda 6 is a complex job. Unlike many other vehicles, you must remove the entire front bumper cover, headlights, and radiator core support to access it. This is not a simple bolt-off, bolt-on part swap and requires significant time and effort. If you are not an experienced DIY mechanic, it is best to leave this job to a professional.
🎬 See a full walkthrough of this complex radiator replacement process.Choosing the Right Aftermarket Radiator
For this vehicle, you don't need to buy an expensive OEM part from the dealer. High-quality aftermarket brands offer excellent performance and durability, often at a much better price. Aftermarket radiators fall into a few tiers:
Premium Aftermarket Brands
These brands are known for their quality, fit, and reliability, often meeting or exceeding OEM specifications. They are a top choice for owners who want a long-lasting, trouble-free replacement.
- Koyorad: A well-respected Japanese brand known for excellent build quality and perfect fitment.

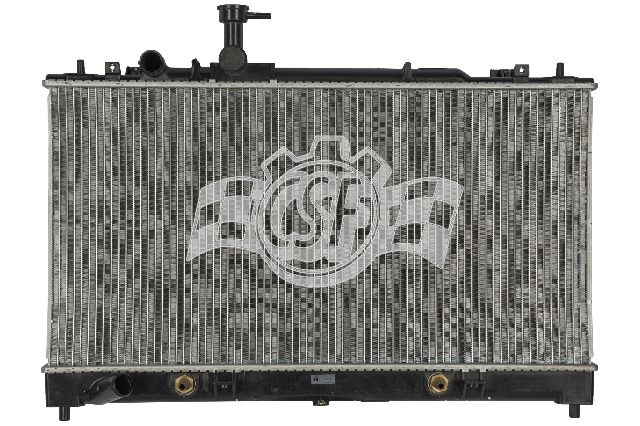

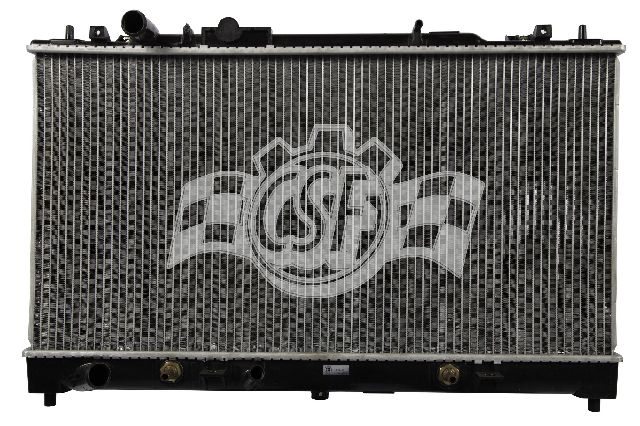

- CSF: Offers high-quality radiators with a reputation for being a direct, easy fit. Forum users have reported successful, leak-free installations with CSF.

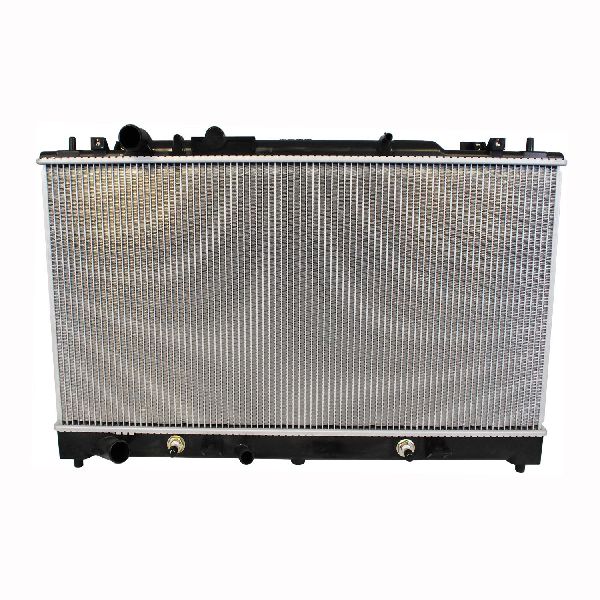

- Denso: As a major OEM supplier for many car manufacturers, Denso's aftermarket parts are built to high standards and are a reliable choice.
Quality Standard Brands
These brands provide a great balance of quality and affordability. They are a solid choice for a daily driver and are a significant step up from generic, no-name parts found on auction sites.
- Spectra: Often praised for making radiators that are very close to OEM specifications and offer great value.
- Nissens: A European brand with a good reputation for cooling system components.
- TYC: A widely available brand that offers dependable, budget-friendly replacement parts.
Pro Tip: Replace More Than Just the Radiator
Since the replacement job is so labor-intensive, it's a good idea to replace other cooling system parts at the same time. Consider installing a new thermostat, radiator cap, and upper and lower radiator hoses. This can save you from having to do another big repair job down the road.
Cost of Replacing a 2003-2009 Mazda 6 Radiator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Radiator | $130 - $338 |
| New OEM Radiator | $310 - $350 |
| Shop Labor | $350 - $750 |
| Total Professional Replacement | $480 - $1088 |
Frequently Asked Questions (FAQ)
Is it hard to replace the radiator on a 2003-2009 Mazda 6?
Yes, it is considered a difficult job for a DIYer. The entire front bumper, headlights, and core support structure must be removed to get the old radiator out and the new one in. This process can take several hours.
Do I need a special radiator for an automatic transmission?
Yes, you need a radiator with an integrated transmission fluid cooler. Most aftermarket radiators are designed to fit both manual and automatic models. You will simply connect your transmission cooler lines to the ports on the new radiator. If you have a manual transmission, you can leave the cooler ports capped.
Should I replace my radiator cap and hoses at the same time?
Absolutely. The radiator cap holds pressure in the system, and a weak cap can cause overheating. Hoses become brittle over time. Since the labor to access the radiator is so intensive, replacing these inexpensive parts at the same time is a smart move.
What type of coolant should I use for my Mazda 6?
Always use a high-quality, ethylene glycol-based coolant designed for Asian vehicles. It is often green or blue. Using the wrong type of coolant can cause corrosion and damage to your cooling system. Check your owner's manual for the specific type recommended by Mazda.
🎬 Watch how to properly drain, fill, and bleed your coolant.Helpful Videos
Technical Specifications
OEM Part Numbers: AJ58-15-200G L32215200E L32115200E

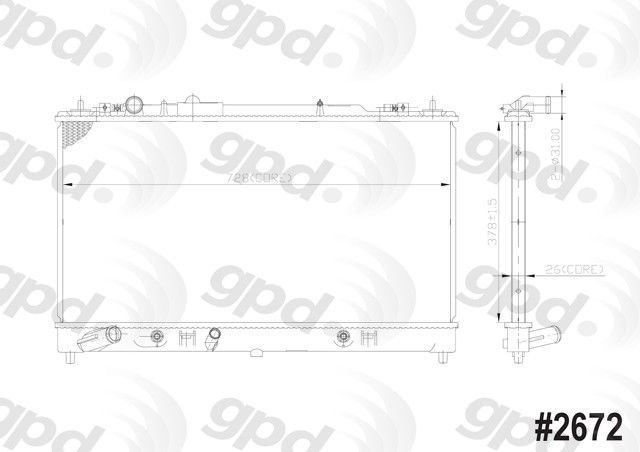

The standard radiator for the 2003-2009 Mazda 6 features an aluminum core with plastic end tanks. It is a single-row core design and includes an integrated automatic transmission fluid cooler. Core dimensions are approximately 14.75 x 28.69 x 1 inches.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
