A Guide to Spark Plugs for the 2003-2009 Mazda 6
Choosing the right spark plugs is crucial for your Mazda 6's engine health and performance.
- For the 3.0L V6 engine, spark plug replacement is a difficult job that requires removing the intake manifold; always use long-life Iridium plugs from NGK or Denso.
- The 2.3L 4-cylinder engine is a simple DIY job that takes less than an hour.
- NGK and Denso are the most recommended brands, with NGK being the original equipment supplier for Mazda.
- A flashing check engine light indicates a severe misfire that can damage other components and requires immediate attention.
Is Your Mazda 6 Telling You It Needs New Spark Plugs?
Worn-out spark plugs can cause a number of issues, some of which are easy to ignore at first. If you notice your Mazda 6 running differently, it might be time for a replacement. Pay attention to these common signs:
- Rough Idling: The engine may vibrate or sound uneven when the car is stopped.
- Poor Acceleration: Your car may feel sluggish or hesitate when you press the gas pedal.
- Reduced Fuel Economy: If you're filling up your gas tank more often than usual, inefficient combustion from old plugs could be the reason.
- Engine Misfires: You might feel a jerking or stumbling sensation while driving. This can cause the Check Engine Light to turn on, and in severe cases, it may flash.
- Difficulty Starting: Weak or fouled plugs can make it harder for the engine to start, especially in cold weather.
Flashing Check Engine Light
If your Check Engine Light is flashing, it signals a severe engine misfire. This can quickly damage your expensive catalytic converter. You should stop driving the vehicle and have it inspected as soon as possible.
Choosing the Right Aftermarket Spark Plugs
Your 2003-2009 Mazda 6 was available with two different engines: a 2.3L 4-cylinder (I4) and a 3.0L V6. The choice of engine is the most important factor in this repair.
For the 2.3L 4-Cylinder Engine:
Replacing spark plugs on the 4-cylinder engine is a straightforward job that many owners can do themselves in under an hour with basic tools. Because of the easy access, you have flexibility in your choice of plugs, but using a quality Iridium plug will provide the longest life.
For the 3.0L V6 Engine:

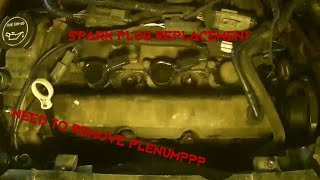

This is a much more difficult job. The front three plugs are easy to access, but the rear three are located underneath the upper intake manifold. This manifold must be removed to change the plugs, which adds significant time, complexity, and cost to the job. Because of the high labor involved, it is strongly recommended to use the highest quality, longest-lasting spark plugs you can get (like NGK or Denso Iridium) to avoid having to do the job again for a long time.
Pro Tip for V6 Owners
Since the intake manifold has to be removed, this is the perfect time to replace the intake manifold gaskets (plenum gaskets) and the PCV valve, which is also difficult to access. Replacing these parts at the same time is a smart preventative measure that costs little in extra parts and no extra labor.
Aftermarket Brand Quality Tiers
Not all spark plugs are created equal. For the Mazda 6, owner experiences point to a clear hierarchy of brands.
- Tier 1: OEM-Equivalent (Recommended): NGK and Denso are the most trusted brands. NGK was the Original Equipment Manufacturer (OEM) for Mazda, meaning they made the plugs the car came with from the factory. Iridium versions from these brands are highly recommended for their performance and 75,000 to 100,000-mile lifespan.
- Tier 2: Reputable Aftermarket: Bosch makes quality plugs, often favored for European vehicles. While they perform well, most Mazda enthusiasts prefer to stick with the Japanese brands NGK or Denso for guaranteed compatibility.
- Tier 3: Economy Brands: Brands like Autolite and Champion are budget-friendly options. However, given the potential labor costs (especially on the V6), saving a few dollars on the plugs themselves is often not worth the risk of shorter life or potential performance issues.
How Much Do Mazda 6 Spark Plugs Cost?
| Category | Price Range |
|---|---|
| New Aftermarket Spark Plugs (Each) | $3.91 - $22.12 |
| Shop Labor (4-Cylinder) | $75 - $150 |
| Shop Labor (V6) | $250 - $500+ |
Cost estimates are for parts and labor and can vary based on your location and the specific shop. The V6 labor cost is significantly higher due to the need to remove the intake manifold.
Frequently Asked Questions
How often should I change the spark plugs on my Mazda 6?
For this generation, if using high-quality Iridium spark plugs, a replacement interval of every 75,000 miles is a good guideline. If using standard copper or platinum plugs, you may need to change them as often as every 30,000 miles. For V6 models, always use long-life plugs to maximize the time between these difficult services.
What's the difference between Iridium and Platinum plugs?
Iridium and platinum are precious metals used to coat the spark plug's electrodes. Iridium is harder and has a higher melting point than platinum, which allows the electrode to be made smaller. This creates a more focused and efficient spark. Iridium plugs generally last longer and provide slightly better performance than platinum plugs, making them the preferred choice for modern engines.
Do I need to gap my new spark plugs?
Most premium spark plugs from brands like NGK and Denso come pre-gapped from the factory for the intended vehicle. While they should be correct, it is always a good practice to verify the gap with a feeler gauge before installation. Dropping a plug can easily change the gap.
Can I really change the V6 spark plugs myself?
While possible, it is considered an advanced DIY job. It requires removing the intake manifold, which involves disconnecting various hoses, sensors, and electrical connectors. If you are not comfortable with a job of this complexity, it is best left to a professional mechanic. The 4-cylinder model, however, is a very beginner-friendly task.
Helpful Videos
Technical Specifications
OEM Part Numbers: L3G2-18-100A L3Y2-18-110
The 2003-2009 Mazda 6 uses two main engines: a 2.3L 4-cylinder and a 3.0L V6. Both use a coil-on-plug ignition system. The recommended spark plugs are typically Iridium-tipped with a 14mm thread and a 5/8" (16mm) hex size. Replacement intervals for Iridium plugs are typically around 75,000 miles.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
