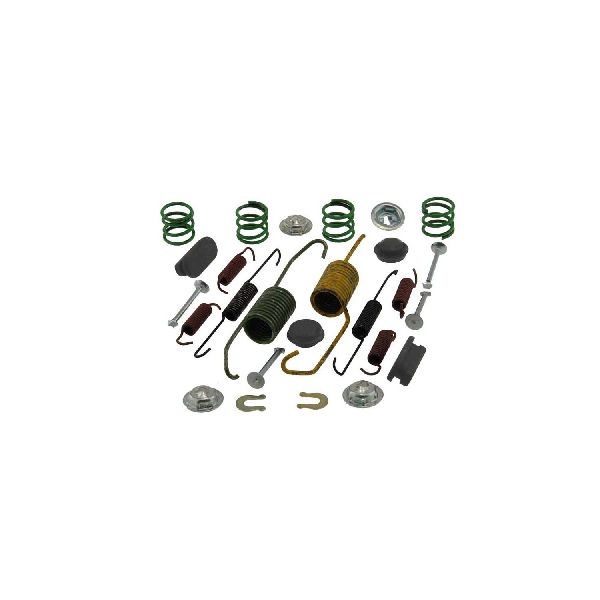

A Guide to Replacing the Drum Brake Hardware on Your 2003-2009 Toyota Corolla
Don't let worn-out springs and clips ruin your Corolla's rear brakes; learn what you need to know before you buy.
- Always replace the drum brake hardware kit when you replace the brake shoes to ensure safety and performance.
- To prevent common squeaking issues, consider using genuine Toyota (OEM) brake shoes with your new aftermarket hardware kit.
- A quality aftermarket kit from a brand like Centric, Dorman, or Beck Arnley offers good value for this vehicle.
- This job is possible for an experienced DIYer, but special brake spring tools are highly recommended.
Is It Time for a New Drum Brake Hardware Kit?
The small springs and clips in your Corolla's rear brakes work hard every time you stop. Over tens of thousands of miles, they get stretched, heated, and can lose their strength or even break. It is a strong recommendation from mechanics to replace the hardware kit every time you replace your rear brake shoes. Reusing old hardware is a common mistake that can lead to noise, poor performance, and having to do the job all over again.

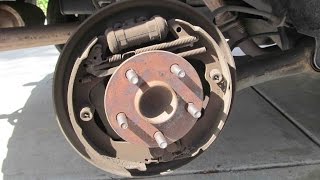

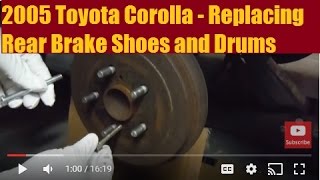

🎬 See a full walkthrough of the shoe and drum replacement.Common Symptoms of Failure
- Scraping or Rattling Noises: A common sign is noise from the back wheels. This can be caused by a broken spring or clip letting parts rattle around inside the brake drum.
- Dragging Brakes: If a return spring is weak or broken, it can't pull the brake shoe back from the drum. You might hear a constant scraping sound and feel the car is sluggish.
- Spongy Brake Pedal: If the self-adjuster mechanism in the hardware isn't working, it creates extra space between the shoes and the drum. This can make the brake pedal feel soft or low.
- Weak Parking Brake: If your parking brake handle pulls up higher than usual or doesn't hold the car securely, it's a sign that the entire rear brake system, including the hardware, is worn.
Known Issues for the 2003-2009 Toyota Corolla
Searches for official recalls from the NHTSA did not show any specific recalls for the drum brake hardware on the 2003-2009 Toyota Corolla. However, many owners report a persistent creaking or squeaking noise from the rear brakes, even after replacing the shoes and hardware. While some technical service bulletins (TSBs) mention brake noise, they are often related to front brakes. Forum discussions among Corolla owners suggest that using genuine Toyota (OEM) brake shoes often solves this noise problem, even when paired with a quality aftermarket hardware kit and drums.
Choosing the Right Aftermarket Hardware Kit
For a daily-driven Corolla, the rear brakes do much less work than the front brakes, so a good quality aftermarket hardware kit is usually a smart, affordable choice. The most important thing is that you replace it. Here’s a general breakdown of the available brands:
- Premium Aftermarket (OE-Match): Brands like Beck Arnley focus on making parts that match the original Toyota parts in fit and quality. They are a great choice if you want to keep the car as close to factory performance as possible.

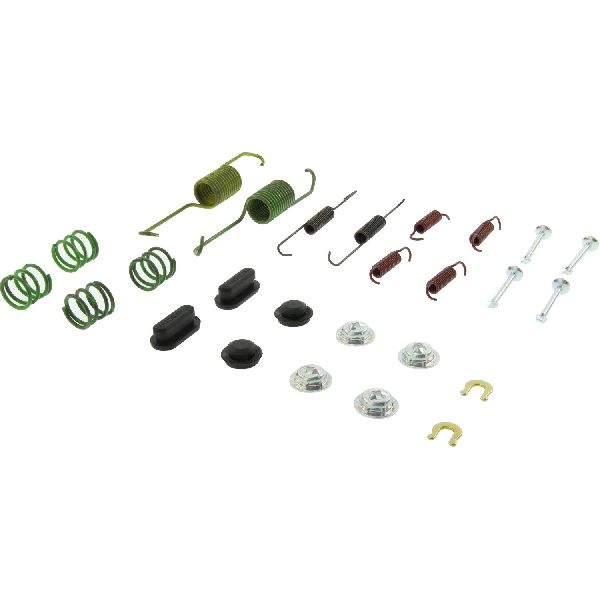

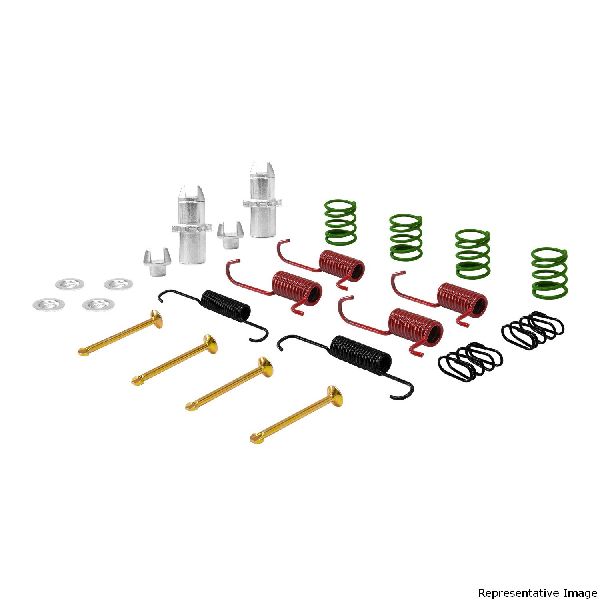

- Standard Aftermarket (Good Value): Brands like Centric, Dorman, and Dynamic Friction offer a good balance of quality and price. They are popular choices for daily driving and are known to be reliable.

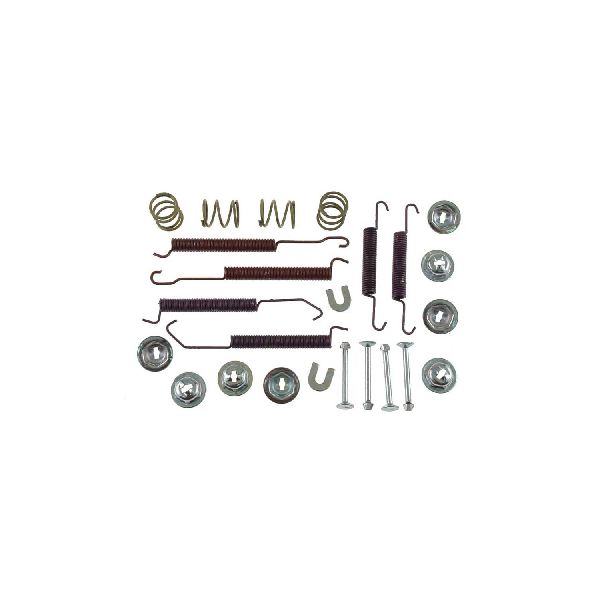

- Economy Aftermarket: Brands like Carlson or other store brands provide a functional and affordable option. While they will get the job done, the finish and spring tension might differ slightly from the original parts.
Pro Tip: To get the best of both worlds—a quiet, reliable repair at a good price—many mechanics and owners recommend using genuine Toyota brake shoes with a quality aftermarket hardware kit from a brand like Centric or Beck Arnley.
Cost to Replace Your Drum Brake Hardware
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $17.97 - $40.05 |
| New OEM Kit (Toyota) | $50 - $70 |
| Shop Labor | $125 - $250 |
Note: Costs are estimates. Labor costs are for a full rear brake shoe and hardware replacement, as they are done at the same time.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware when I replace my brake shoes?
Yes, it is highly recommended. The springs lose tension over time and can break, and the other small parts wear out. A new hardware kit is cheap insurance to make sure your new brake shoes work properly and quietly for a long time.
What parts are included in a typical drum brake hardware kit?

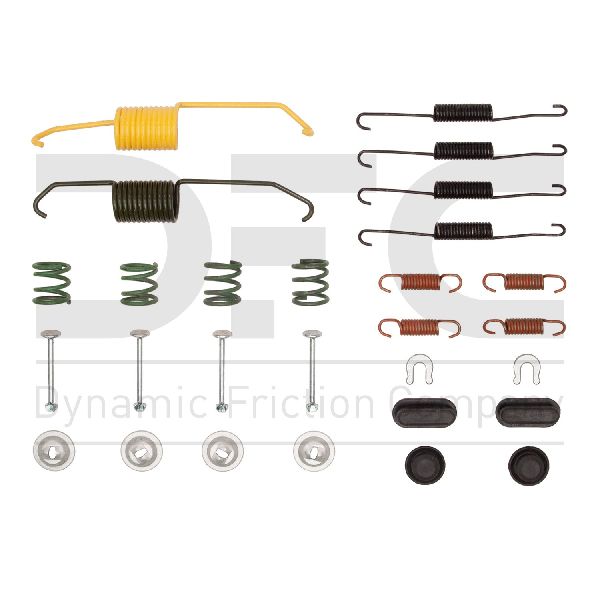

A complete kit for your Corolla should include the main return springs, the hold-down springs, pins, and cups, C-washers or clips for the parking brake lever, and parts for the self-adjuster mechanism.
Can I do this job myself? 🎬 Watch this step-by-step guide on replacing Corolla rear brake shoes.
Yes, if you have some mechanical experience and the right tools. The job can be tricky because of the strong springs. You will need basic hand tools, plus special tools like brake spring pliers make the job much easier and safer. 🎬 Follow this DIY video for Corolla and Matrix drum brake repairs. You may also need two M8x1.25 bolts to help push the brake drum off if it is stuck.
Is there a difference between parts for a US-built vs. a Japan-built Corolla?
For some parts on this generation of Corolla, the country of origin matters. When ordering your hardware kit, always double-check that it fits your specific vehicle by using your car's VIN or confirming if it was built in the US or Japan.
Helpful Videos
Technical Specifications
OEM Part Numbers: 04943-02060
Kit includes return springs, hold-down springs, pins, clips, and adjuster components for both rear wheels.
