Ford Explorer Spark Plug Wire Set Guide (2003-2010)
Experiencing a rough idle or poor performance in your V6 Explorer? It might be time for new spark plug wires.
- Spark plug wires are only used on the 4.0L SOHC V6 engine in 2003-2010 Explorers; the 4.6L V8 uses a different system.
- Symptoms of failure include a rough idle, engine misfires (with codes P0301-P0306), and poor fuel economy.
- It is best practice to replace wires as a complete set and to also replace the spark plugs at the same time.
- Motorcraft and NGK are highly recommended brands for reliability and fit, closely matching OEM quality.
Is Your V6 Explorer Running Rough? Check Your Wires.
If you own a 2003-2010 Ford Explorer with the 4.0L SOHC V6 engine, the spark plug wires are a common maintenance item that can cause noticeable engine problems when they wear out. Over time, the intense heat from the engine and the constant high voltage they carry can cause the wires' insulation to break down. This can lead to a weak spark, engine misfires, and a general decline in performance.
V6 Engine Only
This part and guide are only for the 4.0L SOHC V6 engine. The 4.6L V8 engine available in these Explorers uses a different ignition system called Coil-on-Plug (COP) and does not have spark plug wires. Always verify your engine size before ordering parts.
Symptoms of Failing Spark Plug Wires
When spark plug wires start to fail, the symptoms are often very clear. You might experience one or more of the following issues:
- Rough Idle: The engine may shake or vibrate more than usual when stopped. 🎬 Watch this diagnosis of a rough shaking idle.
- Engine Misfires: You may feel a stumbling or hesitation from the engine, especially under acceleration.
- Check Engine Light: A failing wire can trigger a misfire code (such as P0301, P0302, etc.) and illuminate the check engine light.
- Poor Acceleration: The vehicle may feel sluggish and lack power.
- Reduced Fuel Economy: When your engine isn't running efficiently due to misfires, your gas mileage will suffer.
Choosing the Right Aftermarket Wires
When it's time to replace your wires, you have several good options. The quality of aftermarket wires is generally very good, and some are made by the same companies that supply Ford.
| Brand Tier | Brands | Best For |
|---|---|---|
| OEM / Premium Aftermarket | Motorcraft, NGK, Denso | Owners looking for original equipment quality and reliability. Motorcraft is the Ford factory brand, and NGK is a highly respected OEM supplier known for excellent quality. These are a safe bet for a perfect fit and long life. |
| Standard Aftermarket | Standard Wires (SMP), Prenco, Walker Products | Daily drivers needing a reliable, cost-effective replacement. These brands offer good performance and value for normal driving conditions. |
| Performance Aftermarket | Granatelli, JBA Racing Headers, Taylor Cable | Enthusiasts or those with modified engines. These wires often feature thicker 8mm or larger jackets for improved heat resistance and electrical insulation. While potentially more durable, they are not necessary for a stock engine. |
Pro Tip: Replace Plugs and Wires Together
It is highly recommended to replace your spark plugs at the same time as the wires. The old plugs have endured the same conditions as the old wires. Installing a new set of both ensures the entire secondary ignition system is refreshed for optimal performance and longevity.
🎬 See a full walkthrough for replacing both plugs and wires.Frequently Asked Questions (FAQ)
How often do spark plug wires need to be replaced on a Ford Explorer?
There is no strict replacement interval, but they are a wear item. It's a good idea to inspect them during every major tune-up. Most owners replace them between 60,000 and 100,000 miles, or whenever symptoms of failure appear.
Why are some wires longer than others in the set?
The wires are different lengths to reach from the centrally located coil pack to each of the six spark plugs. The passenger side of the 4.0L V6 generally requires the longer wires. It's critical to match the correct length wire to the correct cylinder to ensure a proper fit without excess slack or tension.
What is dielectric grease and should I use it?
Dielectric grease is a non-conductive, silicone-based grease used inside the spark plug wire boots. It prevents high-voltage leaks, protects against moisture, and makes it easier to remove the wires in the future. Using a small amount in each boot is highly recommended during installation.
Can I replace just one bad wire?
While you can, it's not recommended. If one wire has failed due to age and heat, the others are likely in similar condition and may fail soon. Wires are sold as a complete set and should always be replaced as a set to ensure consistent performance.
🎬 Watch a step-by-step guide to installing new spark plug wires.Helpful Videos
Technical Specifications
OEM Part Numbers: WR-6096 WR-5978

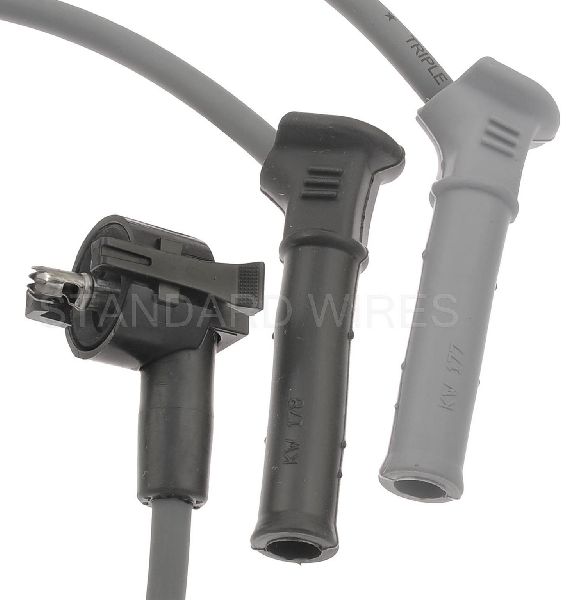

Set of 6 wires with varying lengths for the Ford 4.0L SOHC V6 engine. Wires typically have a silicone jacket for heat resistance and are around 7mm or 8mm in diameter.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
