Engine Valve Cover Gasket Replacement for the 2003-2010 Kia Sorento
Stop the burning oil smell and keep your engine bay clean by choosing the right valve cover gasket set for your Sorento.
- Verify your engine (3.5L for 2003-06, 3.3L/3.8L for 2007-09) to buy the correct gasket set.
- Always purchase a complete kit that includes spark plug tube seals and bolt grommets.
- The job requires removing the upper intake plenum for the rear valve cover, so consider replacing spark plugs at the same time.
- Be prepared for a hidden bolt behind the timing cover on 3.5L models, which may require cutting an access hole in the plastic cover.
Is Your Sorento's Valve Cover Gasket Failing?
Over time, the constant heat from the engine causes the rubber valve cover gasket to become hard and brittle. This prevents it from sealing properly, leading to oil leaks. The most common sign Sorento owners notice is a burning oil smell, especially after the engine has warmed up. This is caused by oil dripping onto the hot exhaust manifold. You might also see visible oil residue on the sides of the engine, often caked with dirt and grime.
🎬 Watch: How to tell if your valve cover gasket is leakingEngine Generation Differences
It is critical to buy the correct gasket set for your Sorento's specific engine. The 2003-2006 Sorento used a 3.5L V6 engine, which requires a different gasket set than the 3.3L and 3.8L V6 engines used in the 2007-2009 Sorento models. Always confirm your vehicle's year and engine size before purchasing.
Choosing the Right Aftermarket Gasket Set
For a part like a valve cover gasket, you don't necessarily need to buy the expensive OEM part from a Kia dealer. Many aftermarket brands offer excellent quality that meets or exceeds OEM specifications. The key is to choose a reputable brand and to get a complete kit.
Pro Tip: Always buy a full gasket set. These kits include not only the main valve cover gaskets but also the spark plug tube seals and bolt grommets. Replacing all these components at once is the best way to ensure a long-lasting, leak-free repair.
Aftermarket Brand Tiers
- Top Tier (OEM Quality or Better): Brands like Fel-Pro, Victor Reinz, and Beck Arnley are well-regarded in the repair community. Fel-Pro is known for engineering gaskets specifically for the repair environment, often to seal imperfect surfaces. Victor Reinz is a major OEM supplier for many European brands and is known for high-quality rubber compounds. Beck Arnley often sources parts from the original equipment manufacturers, ensuring a precise fit.
- Mid-Tier (Reliable Value): Brands like Apex offer a good balance of quality and price. They are a solid choice for DIY repairs on a budget, providing reliable performance.
- Budget-Tier: While there are cheaper, lesser-known brands available, sticking with a recognized name is recommended for a labor-intensive job like this to avoid having to do it twice.
Known Issues, Recalls, or TSBs
Searches for official recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) did not find any specific issues related to leaking valve cover gaskets for the 2003-2010 Kia Sorento. The primary cause of failure is simply the age and heat-cycling of the original rubber gaskets. However, some owners of the 3.5L engine (2003-2006) have noted a hidden bolt for the valve cover located behind the timing belt cover, which can complicate the replacement. This may require carefully cutting a small access hole in the plastic timing cover to remove the bolt.
🎬 See this step-by-step walkthrough for the 3.5L engine| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $27 - $118 |
| New OEM Gasket Set | $88 - $150+ |
| Shop Labor | $147 - $734 |
Frequently Asked Questions (FAQ)
Do I need to use sealant with the new gasket?
Yes, but only in specific spots. A small dab of RTV silicone sealant is required where the timing cover meets the cylinder head. This is because there is a seam in the metal at this junction. Do not apply sealant around the entire gasket, as this can cause it to slip out of place and leak.
Is this a good time to replace my spark plugs?
Absolutely. The job requires removing the intake plenum and ignition coils, giving you direct access to the spark plugs. Since you're already there, replacing the spark plugs at the same time is a smart and cost-effective move.
🎬 Watch: Replacing spark plugs and valve cover gaskets togetherHow difficult is this job to do myself?
For the V6 Sorento, this is a moderately difficult job. The front valve cover is relatively easy, but the rear cover requires removing the upper intake plenum to gain access. It can be time-consuming but is achievable for a patient DIY mechanic with basic tools. For the 2003-2006 3.5L engine, be aware of the hidden bolt behind the timing cover.
What causes the new gasket to leak?
The most common reasons for a new gasket to fail are improper surface preparation or incorrect installation. The mating surfaces on both the cylinder head and the valve cover must be perfectly clean and free of old gasket material and oil. Also, ensure the gasket is seated correctly in the valve cover's groove and that the bolts are tightened to the correct torque specification in the proper sequence.
Helpful Videos
Technical Specifications

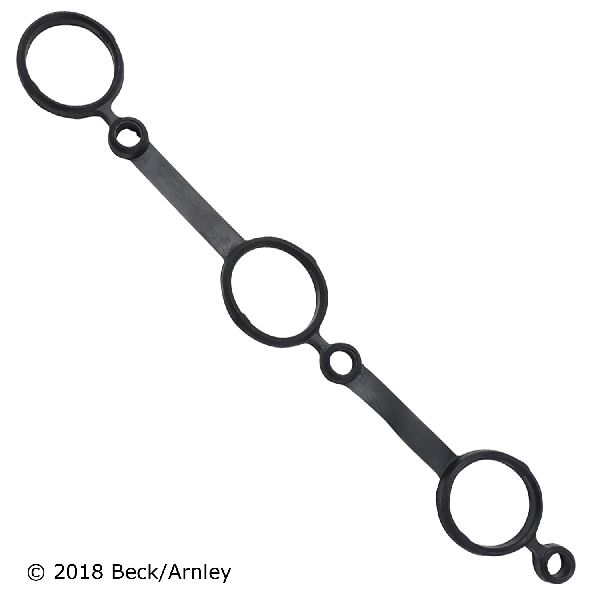

OEM Part Numbers: 22441-3C110 VS50386 VS50658R2 VS50750R
The primary difference is the gasket shape and included components between the 2003-2006 3.5L V6 engine and the 2007-2009 3.3L/3.8L V6 engines. Gaskets are typically made of molded rubber.
