Mazda B4000 HVAC Heater Hose Guide (2003-2010)
Keep your truck's heat working properly by addressing common heater hose issues before they leave you in the cold.
- The plastic heater control valve and T-connectors are the most common failure points on the 2003-2010 B4000.
- When one hose fails, it's best practice to replace the entire assembly and the hose clamps to prevent future leaks.
- Top aftermarket brands like Gates and Continental offer excellent quality and fitment, often at a lower price than OEM parts.
- A significant coolant leak is a critical issue. Do not drive the truck if it is actively losing coolant, as this can lead to severe engine damage.
Symptoms of a Failing Heater Hose
A bad heater hose on your Mazda B4000 will usually give you a few warning signs. Ignoring them can lead to bigger problems, like engine damage from overheating.
- Coolant Leaks: This is the most obvious sign. You might see puddles of green or orange fluid under your truck, especially on the passenger side. You may also smell a sweet, syrupy odor.
- No Heat in Cabin: If a hose is clogged or the heater control valve fails, hot coolant can't reach the heater core, leaving you with cold air blowing from the vents.
- Engine Overheating: A major leak in a heater hose will cause a rapid loss of coolant. This can cause your engine's temperature gauge to spike and lead to serious engine damage if not addressed immediately.

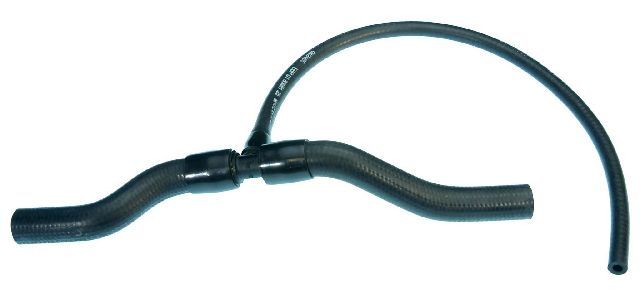

- Visible Hose Damage: Check your hoses for cracks, bulges, or soft, spongy spots. The plastic T-connectors and the heater control valve are common failure points on these trucks.
A Note on the Heater Control Valve
Many 2003-2010 Mazda B4000 trucks (and their Ford Ranger counterparts) have a plastic, vacuum-actuated heater control valve integrated into the hose assembly. This valve is a very common point of failure, often developing cracks and leaking coolant. When replacing your hoses, it's wise to choose an assembly that includes a new valve or replace the valve at the same time.
Choosing the Right Aftermarket Heater Hose
Since the Mazda B4000 is mechanically identical to the Ford Ranger, you have a wide selection of quality aftermarket parts. For heater hoses, OEM quality is good, but top-tier aftermarket brands offer similar or even improved performance, often at a better price. The key is choosing a reputable brand and ensuring the hose assembly has the correct configuration for your truck.
| Brand Tier | Brands | Quality & Fitment Notes |
|---|---|---|
| Premium Aftermarket | Gates, Continental | Often considered OEM-equivalents or better. Known for good material quality and accurate bends for a proper fit. Gates, in particular, is often praised for correct cataloging and fitment. These brands are a reliable choice for a long-lasting repair. |
| Standard Aftermarket | Dayco | A solid, budget-friendly option. Quality is generally good, though some users report occasional fitment issues compared to Gates. However, many mechanics use Dayco without issue and find them to be a durable choice. |
Pro Tip: Replace the Clamps!
Don't reuse old, rusty spring clamps. For a few extra dollars, a set of new worm-gear or spring clamps will ensure a tight, leak-free seal on your new hoses. Many leaks are caused by failing clamps, not the hose itself.
Frequently Asked Questions (FAQ)
Can I just replace the leaking plastic 'T' fitting?
Yes, in some cases, you can cut out a failed plastic T-fitting and splice in a new metal or plastic one. However, if the original T-fitting has failed due to age and heat, the rest of the hose is likely not far behind. Replacing the entire hose assembly is often the more reliable long-term repair.
Why are there so many different heater hose assemblies available?
The 4.0L V6 engine in the Mazda B4000 had different hose configurations depending on the year and specific options. Some hoses include the heater control valve, while others are simple inlet or outlet hoses. It is crucial to match the new part to the exact one you are removing from your truck.
Is this a difficult job to do myself?
For a moderately experienced DIYer, replacing the heater hoses is very feasible. Access is generally good on these trucks. The most difficult part is often removing the old hoses from the heater core connections at the firewall without damaging them. Special tools are available to release the quick-connect fittings if your truck has them.
Are there any recalls or TSBs for my truck's heater hoses?
No recalls were found specifically for the HVAC heater hoses on the 2003-2010 Mazda B4000. However, Ford issued Technical Service Bulletins (TSBs) for the equivalent Ranger 4.0L engine regarding a "thumping" noise from the cooling system, which can be transmitted through the heater hoses. This is typically caused by steam formation or water pump issues, not the hoses themselves, but it's a known characteristic of the cooling system.
Technical Specifications
OEM Part Numbers: KH-640
Hoses are made from EPDM rubber. Assemblies may include plastic T-connectors and a vacuum-actuated heater control valve. Hose diameters are typically 5/8" and 3/4".
