A Guide to the Throttle Position Sensor for the 2003-2010 Mercury Mountaineer
Solving hesitation, stalling, and poor acceleration in your Mountaineer starts with understanding this critical sensor.
- For Ford vehicles like the Mountaineer, using an OEM (Motorcraft) or a premium aftermarket sensor (Delphi, NGK) is highly recommended for reliability.
- Installation is easy on the 4.6L V8 but significantly harder on the 4.0L V6 due to the sensor's location facing the firewall.
- Check for TSB 05-14-4 if you own a 2004-2005 model with codes P2106 and P2135, as a computer reprogram may be needed.
- Symptoms like stalling, hesitation, and erratic shifting are classic signs of a failing TPS.
Is Your Mountaineer Hesitating or Stalling? It Could Be the Throttle Position Sensor
If you're experiencing unpredictable engine behavior with your 2003-2010 Mercury Mountaineer, a failing Throttle Position Sensor (TPS) is a likely culprit. This sensor translates your foot's movement on the gas pedal into a signal for the engine's computer. When it starts to fail, it sends incorrect data, leading to a host of drivability problems that can range from annoying to serious.
Symptoms of a Failing TPS
A bad TPS can make your vehicle act erratically. Watch for these common signs:
🎬 See a real-world example of these TPS failure symptoms in action.- Hesitation or Lack of Power: The vehicle may stumble or feel sluggish when you try to accelerate.
- Unstable Idle: The engine might idle too high, too low, or surge up and down on its own.
- Engine Stalling: The engine may stall unexpectedly when you come to a stop or right after starting.
- Jerking or Surging: Your Mountaineer might buck or surge forward without warning while driving.
- Poor Shifting: The automatic transmission may shift harshly, at the wrong times, or seem to hunt for the right gear.
- Check Engine Light: A failing TPS will often trigger the Check Engine Light. Common trouble codes include P0120, P0121, P0122, P0123, and P0124.
Known Issues: TSB for 2004-2005 Models
Ford issued Technical Service Bulletin (TSB) 05-14-4 for some 2004-2005 Mountaineer and Explorer models. If your vehicle displays both the wrench light and the Check Engine Light with codes P2106 and P2135, 🎬 Watch this guide to understand these specific electronic throttle body codes. this TSB may apply. The official fix involves replacing the TPS with an updated service kit (part number 3L5Z-9B989-AA) and reprogramming the vehicle's main computer (PCM). This is a job for a professional technician with the right tools.
Choosing the Right Aftermarket Throttle Position Sensor
When it comes to electronic sensors on Ford vehicles, quality matters. While budget-friendly options are available, many owners and mechanics report that using OEM or high-quality aftermarket parts prevents future headaches.
Brand Quality Tiers
- Tier 1: OEM (Motorcraft): This is the original part your vehicle was built with. For critical sensors, Motorcraft is widely considered the safest choice for guaranteed compatibility and performance on a Ford product.
- Tier 2: Premium Aftermarket (Delphi, NGK/NTK, Standard Ignition): These brands are often OEM suppliers for various car manufacturers and have a reputation for quality that meets or exceeds original specifications. Delphi, in particular, is noted as a potential OEM supplier for Ford sensors, making it a strong alternative. NGK (under its NTK sensor brand) and Standard Motor Products (their main line, not the budget "T-series") are also trusted names in the industry.
- Tier 3: Budget Aftermarket (Replacement, True Tech, URO Parts, etc.): These brands offer significant cost savings. However, be aware that the performance and longevity of budget sensors can be inconsistent. One user reported receiving a suspected counterfeit Delphi part when ordering from a non-reputable online source, so always buy from a trusted retailer.
A Note on Installation

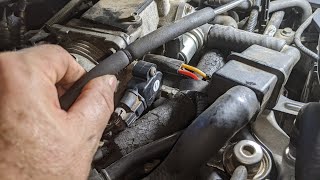

Replacing the TPS is a straightforward job for a DIYer, but the difficulty depends on your engine. On the 4.6L V8, the sensor is easily accessible on the front of the throttle body. 🎬 Watch this walkthrough for replacing the TPS on the 4.6L V8. On the 4.0L V6, the sensor is located on the back of the throttle body, facing the firewall, which makes it much more difficult to reach and replace.
Cost of a New Throttle Position Sensor
The price for a new TPS can vary significantly based on the brand you choose. Labor costs at a repair shop are typically low for this job, unless you have the harder-to-access V6 model.
| Part Type | Estimated Price Range |
|---|---|
| New OEM (Motorcraft) | $50 - $125 |
| New Aftermarket | $34 - $112 |
| Shop Labor | $35 - $95 |
Frequently Asked Questions
Can I replace just the sensor, or do I need the whole throttle body?
For the 2003-2010 Mercury Mountaineer, the throttle position sensor is a separate component that can be purchased and replaced individually. You do not need to replace the entire throttle body assembly unless it is damaged.
Is a special tool needed to replace the TPS?
Typically, no special tools are required beyond basic hand tools like a screwdriver or small socket set to remove the two mounting screws. However, accessing the sensor on the 4.0L V6 engine can be challenging due to its location.
Does a new TPS need to be calibrated?
For most direct-fit replacements on this vehicle, no manual calibration is needed. The engine computer will 'relearn' the new sensor's values. However, if your vehicle falls under TSB 05-14-4, a PCM reprogram by a technician is required as part of the repair.
What happens if I ignore a bad TPS?
Ignoring a failing TPS can lead to worsening drivability issues, poor fuel economy, and stress on your transmission from improper shifting. The most significant risk is the engine stalling in traffic or accelerating unpredictably, which are serious safety concerns.
Helpful Videos
Technical Specifications
TSB 05-14-4 specifies service kit part number 3L5Z-9B989-AA for affected 2004-2005 models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
