Pontiac Vibe Ignition Coils (2003-2010): A Guide to Replacement
Experiencing a rough idle or engine misfires? Your Vibe's ignition coils might be the culprit. This guide explains what you need to know before you buy.
- Your Pontiac Vibe has four individual ignition coils; one for each cylinder.
- Denso is the Original Equipment Manufacturer (OEM), making it the top choice for quality and reliability.
- Replacement is a very simple DIY task that requires only basic tools and less than 30 minutes.
- A flashing check engine light signals a severe misfire; avoid driving to prevent expensive catalytic converter damage.
Is Your Vibe's Ignition Coil Failing?
Ignition coils are durable parts, but they can fail over time due to heat and vibration. When a coil starts to go bad, it can cause noticeable problems with how your car runs. Because the Pontiac Vibe uses Toyota engines, these ignition systems are generally very reliable, but failures can still happen, especially at higher mileage.
Common Symptoms of a Bad Ignition Coil:
- Engine Misfires: The engine may shake, stumble, or hesitate, especially when idling or under load.
- Check Engine Light: A failing coil will almost always trigger the check engine light. A flashing light indicates a severe misfire that could damage your catalytic converter.
- Rough Idle: The car may vibrate or run unevenly when stopped.
- Poor Fuel Economy: An inefficient spark means wasted fuel.
- Loss of Power: Acceleration may feel sluggish or weak.
- Hard Starting: The engine may crank longer than usual before starting.
Flashing Check Engine Light?
If your check engine light is flashing, it signals a serious misfire. Unburned fuel is entering the exhaust, which can quickly overheat and destroy your catalytic converter—a very expensive repair. Avoid driving the vehicle if possible.
Known Issues, Recalls, and Service Bulletins
There are no official recalls from the National Highway Traffic Safety Administration (NHTSA) for ignition coils on the 2003-2010 Pontiac Vibe. While numerous Technical Service Bulletins (TSBs) exist for the Vibe, none point to a widespread, inherent defect with the ignition coils themselves. 🎬 Watch a video on common problems for second generation Vibes. Some owners have reported issues with the plastic ignition coil connectors becoming brittle and breaking over time, which can cause a poor connection and lead to misfires.
Choosing the Right Aftermarket Ignition Coil
Since the Pontiac Vibe uses Toyota engines (the 1.8L 1ZZ-FE, 2ZR-FE, and 2.4L 2AZ-FE), the original equipment (OEM) ignition coils were made by Denso. This gives you a clear benchmark for quality.
Brand Quality Tiers:
- Tier 1 (OEM Equivalent): Denso
Denso was the original supplier for your Vibe. Choosing a Denso coil is the closest you can get to buying the part from a GM or Toyota dealership, often at a lower price. It is the recommended choice for reliability and a perfect fit. - Tier 2 (Quality Aftermarket): Beck Arnley, Bremi, Karlyn STI

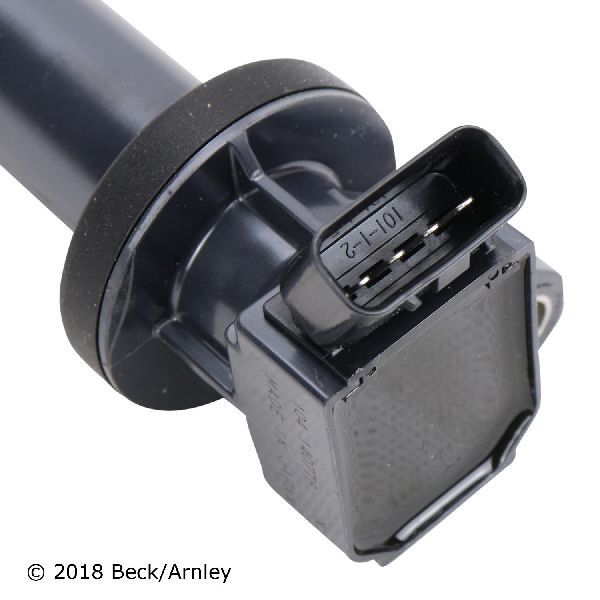

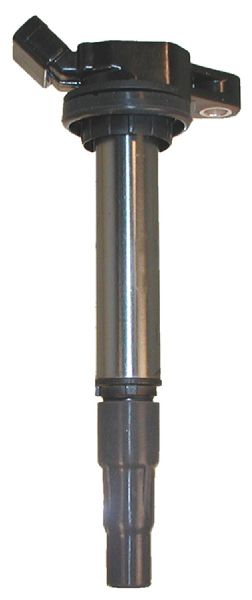

Brands like Beck Arnley focus on meeting or exceeding OE specifications for foreign nameplate vehicles and are a trusted option. Bremi and Karlyn STI are also known for producing reliable ignition components. These brands offer a good balance of quality and price. - Tier 3 (Economy): Accel, Facet, Prenco
These brands provide a more budget-friendly solution. While they can be a good value, their long-term durability may not match that of the higher-tiered brands. They can be a viable option if you are on a tight budget, but be aware that some owners in forums have reported shorter lifespans with economy-priced coils.
Pro Tip: Replace in Sets?
Mechanics often recommend replacing all ignition coils at once. Coils on a car have been exposed to the same amount of heat and wear. If one has failed, others may be nearing the end of their life. Replacing them all provides peace of mind and can prevent you from having to do the same job again in a few months.
How Much Should It Cost?
Replacing an ignition coil on a Pontiac Vibe is a simple job that most DIYers can do in under 30 minutes. This accessibility keeps professional labor costs low.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Coil (Single) | $36 - $128 |
| New OEM Ignition Coil (Single) | $90 - $150 |
| Shop Labor | $40 - $100 |
| Total Professional Replacement (Single Coil) | $139 - $200 |
Frequently Asked Questions
How many ignition coils does my Pontiac Vibe have?
All 2003-2010 Pontiac Vibe models have a 4-cylinder engine, which means you have four ignition coils, one for each spark plug.
Can I replace just one bad ignition coil?
Yes, you can replace only the failed coil. This is a common and cost-effective repair. However, as mentioned, coils tend to fail around the same time, so be prepared that another one might fail in the future.
Is it hard to replace an ignition coil on a Vibe?
No, it is one of the easiest repairs you can do. The coils are located directly on top of the engine and held in by a single 10mm bolt. The process involves removing the plastic engine cover, disconnecting the electrical connector, unbolting the coil, and pulling it straight out.
🎬 See how to check and replace a dead ignition coil.Do I need to buy different coils for the 1.8L and 2.4L engines?
Yes, the ignition coils for the 1.8L engines (1ZZ-FE and 2ZR-FE) and the 2.4L engine (2AZ-FE) have different part numbers and are not interchangeable. Always verify the part fits your specific engine before purchasing.
What tools do I need for the job?
You typically only need a 10mm socket with a ratchet and possibly an extension. No special tools are required.
Helpful Videos
Technical Specifications

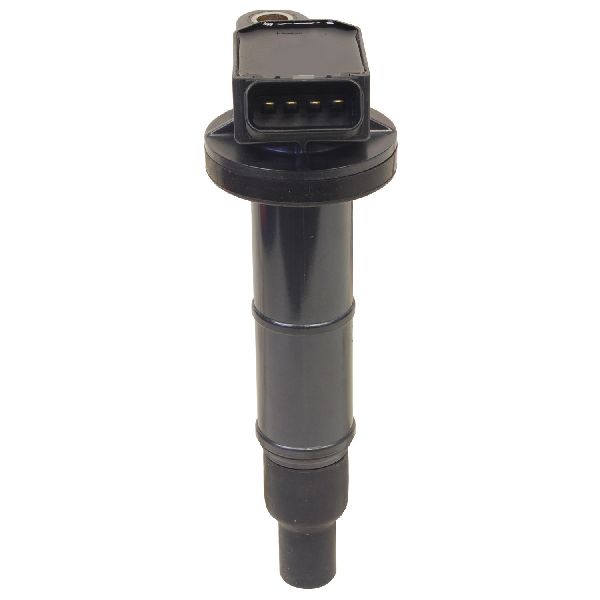

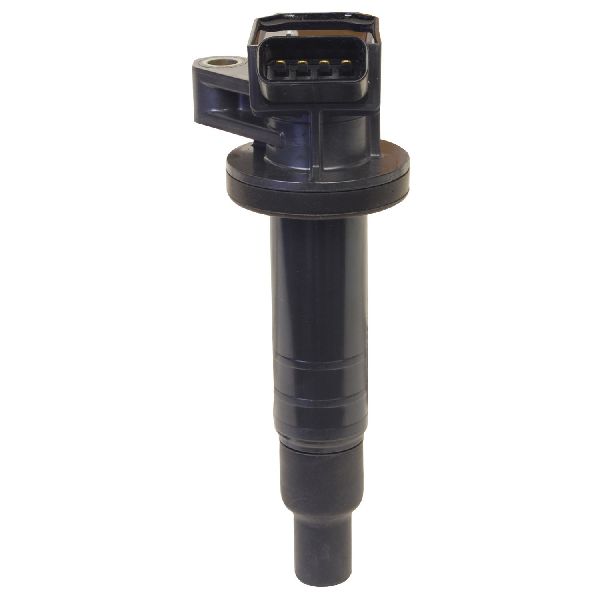

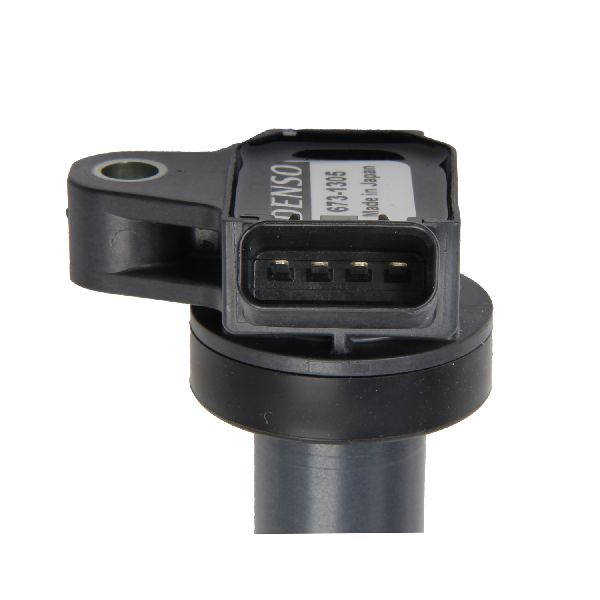

OEM Part Numbers: 90919-02239 (1.8L 1ZZ-FE, 2003-2008) 88970216 (1.8L 1ZZ-FE, 2003-2008) 90919-02252 (1.8L 2ZR-FE, 2009-2010) 19205387 (2.4L 2AZ-FE, 2009-2010) 90919-02244 (2.4L 2AZ-FE, 2009-2010)
All 2003-2010 Pontiac Vibe models use a coil-on-plug design. Each coil is secured by a single 10mm bolt and has a 4-pin electrical connector. Ensure you purchase the correct part for your specific engine (1.8L or 2.4L) as they are not interchangeable.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
