A Mechanic's Guide to Your 2003-2010 Pontiac Vibe Disc Brake Hardware Kit
Stop brake noise and prevent uneven wear by choosing the right hardware for your Vibe's brake job.
- Always replace the disc brake hardware kit every time you replace your brake pads to ensure quiet and even braking.
- Choose a stainless steel hardware kit over a standard plated one for superior rust resistance, especially if you live in a wet or snowy climate.
- A common Vibe issue is rust buildup under the hardware clips; you must clean the caliper bracket thoroughly before installing new clips.
- Uneven pad wear is a clear sign of sticking hardware or seized caliper slide pins, which must be addressed during the brake job.
Signs of Failing Brake Hardware on Your Vibe
Old brake hardware loses its spring tension from thousands of heat cycles and gets corroded by water and road salt. For the Pontiac Vibe and its twin, the Toyota Matrix, the most common problem is rust building up under the hardware clips in the caliper bracket. This can cause the brake pads to bind, leading to a number of clear symptoms.
- Brake Noises: Squealing, scraping, or rattling sounds when braking (or even when not braking) are a primary sign that the clips are no longer holding the pads tightly.
- Uneven Brake Pad Wear: If you find that the inner brake pad is worn much more than the outer pad (or vice-versa), it's a classic symptom of sticking caliper pins or binding hardware. This prevents the caliper from applying even pressure.
- Brake Drag or Burning Smell: When hardware is rusted and binding, it can prevent the brake pad from moving away from the rotor after you release the pedal. This constant friction creates extreme heat, a noticeable burning smell, and can quickly damage the pad and rotor.
A Critical Vibe & Matrix Issue: Sticking Hardware
Owners and mechanics frequently report that rust buildup on the caliper brackets, underneath the metal hardware clips, is a major issue for the 2003-2010 Vibe/Matrix platform. This rust buildup effectively shrinks the space for the brake pad, causing it to seize. 🎬 Watch this DIY walkthrough for replacing front brake pads. When you do your brake job, it is critical to thoroughly clean the bracket where the clips sit with a wire brush before installing the new hardware.
Choosing the Right Aftermarket Hardware Kit
It is a non-negotiable rule for any good mechanic: always replace your disc brake hardware when you replace your brake pads. Reusing old, heat-cycled, and rusty clips will ruin your new brake pads and rotors. Given the low cost of a hardware kit, skipping it is a costly mistake.
🎬 Watch: How to replace front and rear pads and rotors.Material Matters: Stainless Steel vs. Plated Steel
The single most important factor when choosing a new hardware kit for your Vibe is the material.
- Standard (Plated Steel) Kits: These are the most affordable and will work fine, but they are prone to rusting. In areas with road salt or high humidity, they may not last as long and can lead to the same binding issues you're trying to fix.
- Premium (Stainless Steel) Kits: For a few dollars more, stainless steel hardware is the best choice for longevity. It offers superior corrosion resistance, ensuring your brake pads can slide freely for their entire service life. This is a highly recommended upgrade for any Vibe owner, especially in the rust belt.
Brand Recommendations
The brands available for your Vibe are all well-established in the aftermarket. You can be confident in the quality from any of these names, with the main difference being the material used in a specific kit.
- Premium Tier: Brands like Raybestos, Centric, and Dynamic Friction (DFC) are trusted choices often used by professionals. DFC, in particular, is noted for using a high percentage of stainless steel components in their kits. Raybestos and Centric are owned by the same parent company and offer excellent quality parts.
- Reliable Tier: Dorman and Carlson are also excellent, widely available brands that offer reliable hardware kits for a good value.
Pro Tip: When shopping, look for kits explicitly described as "stainless steel." This small investment will pay off by preventing the noise and uneven wear issues common to the Pontiac Vibe.
Cost of New Disc Brake Hardware Kits for a 2003-2010 Pontiac Vibe
| Part Type | Price Range | Notes |
|---|---|---|
| New Aftermarket Hardware Kit | $8.49 - $55.72 | Price depends on brand and material (plated vs. stainless steel). The higher end often includes more components like guide pin boots. |
| New OEM Hardware Kit | $25 - $40 (estimated) | Typically sold with a full OEM brake pad set, not separately. This is an estimated price for the hardware alone. |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with every brake job?
Yes, absolutely. The old clips have been weakened by heat and are likely corroded. Reusing them is the number one cause of noise and premature wear after a brake job. For the low cost, it is essential preventative maintenance.
Why did my inside (or outside) brake pad wear out so much faster?
This is almost always caused by a seized caliper slide pin or binding brake hardware. The caliper is unable to "float" and apply equal pressure to both pads. When replacing your hardware, you must also clean and re-lubricate the caliper slide pins with high-temperature silicone brake grease.
🎬 See how to fix a seized or sticking brake caliper.What's the difference between a $10 kit and a $40 kit?
The main differences are the material and the completeness of the kit. More expensive kits are almost always made of stainless steel for better rust prevention. They may also include additional components like caliper guide pin boots and a packet of brake lubricant.
Was there a brake recall on the Pontiac Vibe?
There were no recalls for the brake hardware itself. However, 2009-2010 Vibe models with the 1.8L engine were recalled in cold-weather states because condensation in a vacuum line could freeze and cause a loss of power brake assist, making the pedal much harder to press. This is an issue with the power assist system, not the mechanical brake parts like the hardware.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19360238 (Included with Rear Pad Set) 19184911 (Included with Front Pad Set)

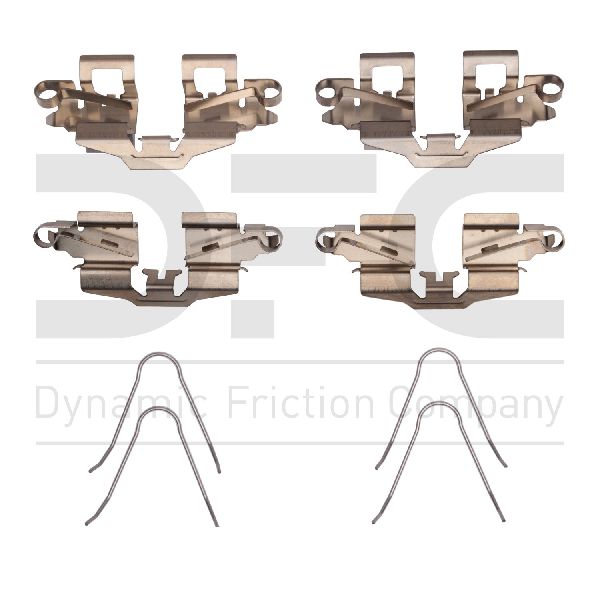

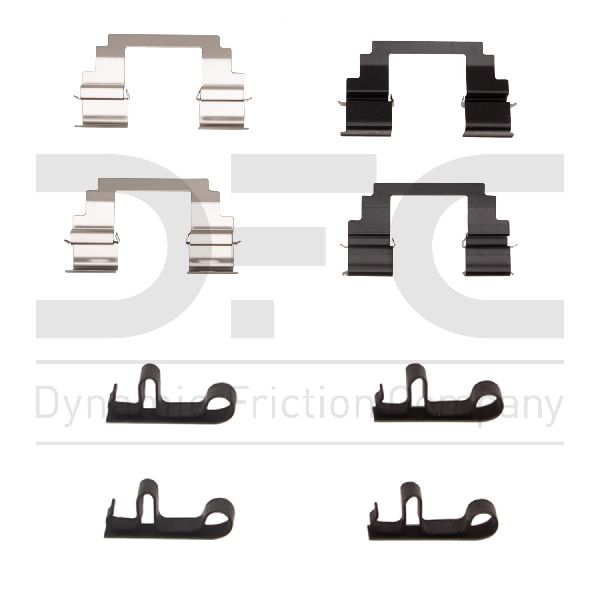

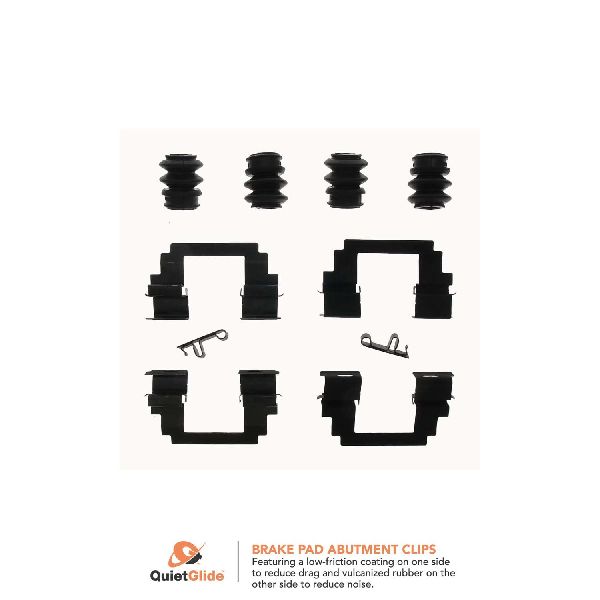

Kit typically includes anti-rattle clips and pad abutment clips. Premium kits may also include caliper pin boots and brake lubricant. Material is either plated steel or stainless steel.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
